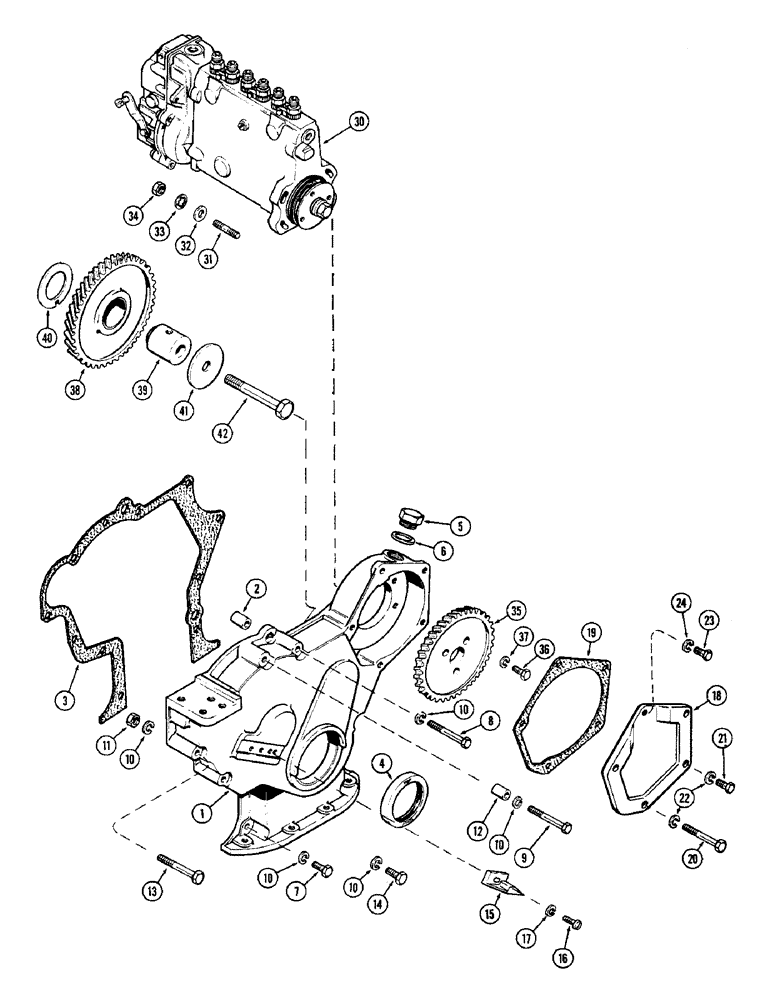

Запчасти Case IH 1370 (070) - TIMING GEAR COVER, (504BDT) DIESEL ENGINE (03) - FUEL SYSTEM

1

A63909

COVER

ASSEMBLY - timing gear, Includes Ref. 2

1шт.

2

A58611

PIN

Dowel, cover

2шт.

3

A58612

GASKET

, Serial Range: Cover-block

1шт.

4

A62049

OIL SEAL

Crankshaft front

1шт.

5

A21140

PLUG

Timing window

1шт.

6

A58613

SEALING WASHER

Timing window plug

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

9

113-656

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 8

BOLT - 3/8 x 3-1/2" N.C. hex.

3шт.

10

92-6

LOCK WASHER,3/8"

9шт.

11

25-106

NUT,3/8"-16, G5

Hex

2шт.

12

A19774

BUSHING

SPACER - (3/8 x 1")

1шт.

13

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

14

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

2шт.

15

A63911

INDICATOR

POINTER - timing

1шт.

16

169-119

SCREW,Sl Fil Hd, #12 - 24 x 3/4"

Machine

1шт.

17

192-108

LOCK WASHER,#12

1шт.

18

A61053

COVER

Fuel pump gear

1шт.

19

A58615

GASKET

Fuel pump gear cover

1шт.

20

13-656

BOLT,Hex, 3/8" - 16 x 3-1/2", Gr 5

2шт.

21

A151921

BOLT

BOLT - 3/8 x 1-1/2" N.C. hex. (Drilled) (For anti-tamper wire) (Replaces A150118 and A148253)

2шт.

22

92-6

LOCK WASHER,3/8"

4шт.

23

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

24

92-5

LOCK WASHER,5/16"

1шт.

30

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection (See Figures 066 and 068), drive

1шт.

31

A142092

STUD

3/8" N.C. x 1-7/8" (Drilled) (For anti-tamper wire), injection pump drive

1шт.

31

A58689

STUD

3/8" N.C. x 1-7/8", injection pump drive

3шт.

32

A57470

WASHER

13/32 x 11/16 x 16 ga, injection pump drive

4шт.

33

193-30

LOCK WASHER,Int Tooth, 3/8"

Injection pump drive

4шт.

34

25-126

SLOTTED NUT,3/8"-16, G5

Hex, (Used w/A142092 stud), injection pump drive

1шт.

34

25-106

NUT,3/8"-16, G5

Hex, (Used w/A58689 stud), injection pump drive

3шт.

35

A58693

GEAR

Injection pump drive

1шт.

36

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Injection pump drive

3шт.

37

92-6

LOCK WASHER,3/8"

Injection pump drive

3шт.

38

A62542

GEAR

ASSEMBLY - idler (w/bushing), injection pump drive

1шт.

39

A58690

SHAFT

Idler gear, injection pump drive

1шт.

40

A58691

WASHER

Thrust, idler shaft, injection pump drive

1шт.

41

A58692

PLATE

Thrust, idler shaft, injection pump drive

1шт.

42

13-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 5

Injection pump drive

1шт.
