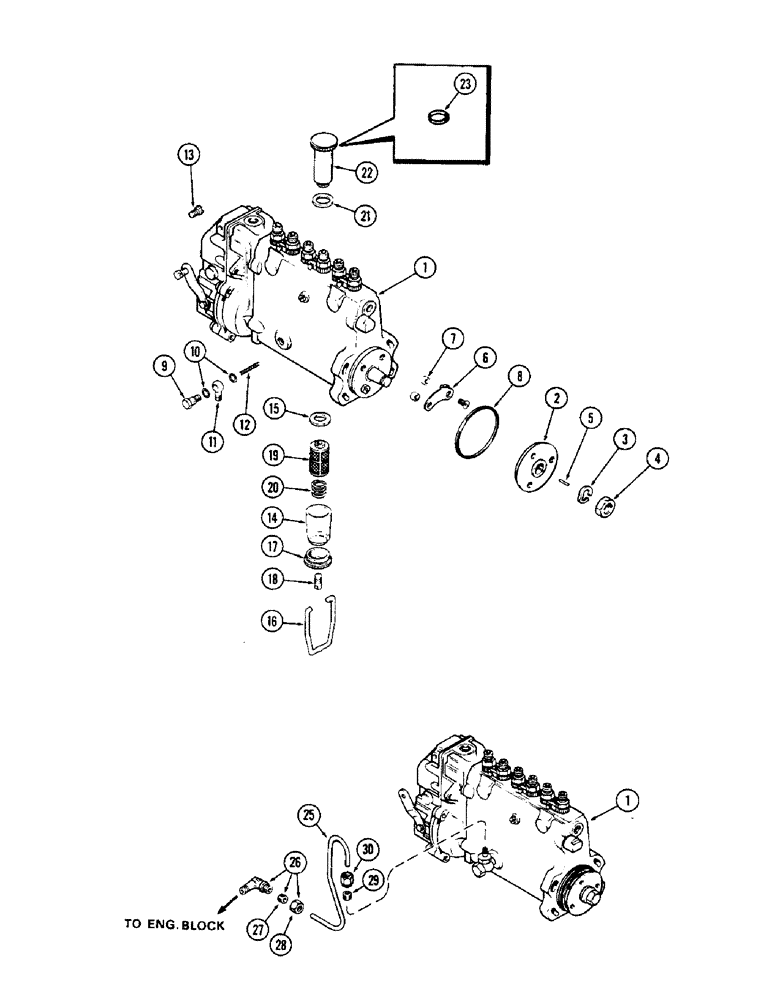

Запчасти Case IH 1370 (068) - FUEL INJECTION PUMP, (504BDT) DIESEL ENGINE, WITH LUBE TUBE ON INSIDE (03) - FUEL SYSTEM

1

A66129

PUMP

ASSEMBLY - fuel injection (2200 R.P.M.) (Order A136903, A138062 and 222-42), Includes: Ref. 2 - 23

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- (2-61/64 x 3-3/16 x 1/8")

1шт.

9

A25192

BANJO BOLT

BOLT - oil tube fitting

1шт.

10

A22381

WASHER

- tube fitting, copper

2шт.

11

A25191

FITTING

- oil tube to pump (Banjo type)

1шт.

12

A25190

SPRING

- oil tube fitting

1шт.

13

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

SCREW - pump stop control cable lock (Replaces A44259)

1шт.

14

A43347

BOWL

- filter

1шт.

15

A43346

GASKET

- bowl

1шт.

16

A43350

CLAMP

BAIL - bowl

1шт.

17

A43348

NUT

BAILNUT - bowl seat

1шт.

18

A43349

STUD

- bailnut retaining

1шт.

19

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

20

A43345

SPRING

- element retaining

1шт.

21

A43351

SEAL

- hand primer (Copper)

1шт.

22

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes: Ref. 23

1шт.

23

A45342

GASKET

- rubber (Replaces A44761)

1шт.

25

A58717

TUBE

- oil, Serial Range: gallery-pump

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 1/4" tube x 1/8" P.T., Includes: Ref. 27 and 28

1шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.

29

222-102

SLEEVE,1/4" Tube

1шт.

30

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

1шт.
