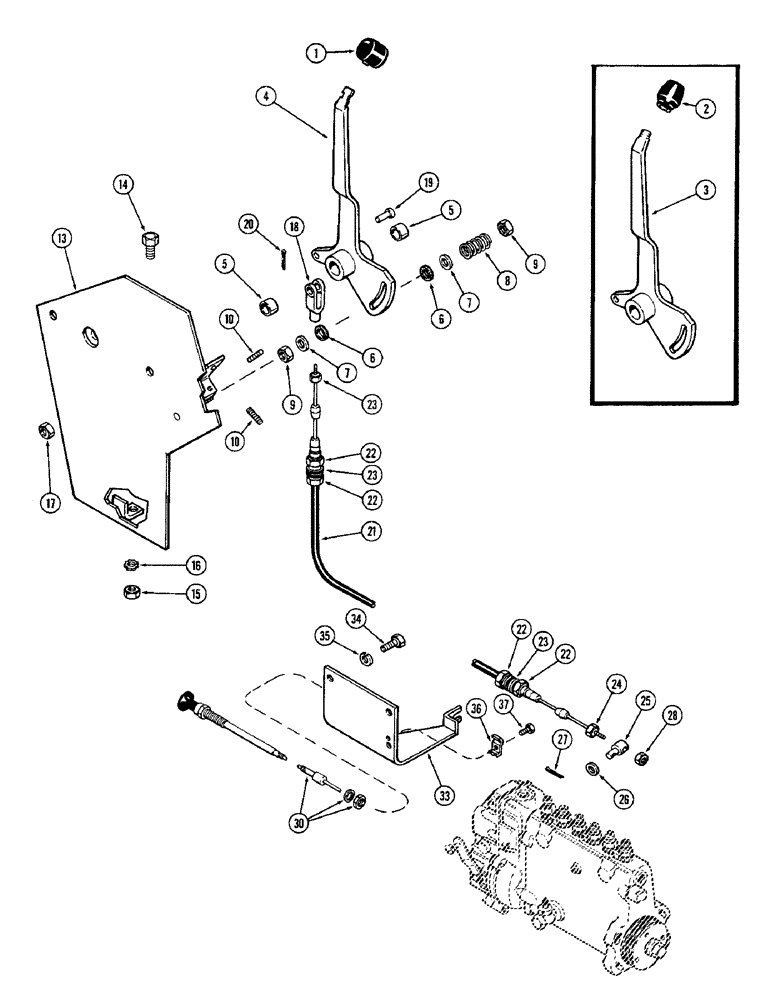

Запчасти Case IH 1370 (052) - THROTTLE CONTROLS (03) - FUEL SYSTEM

1

A137806

KNOB

- lever (Rubber)

1шт.

2

A65699

KNOB

- lever (Plastic) (Order A137806)

1шт.

3

A63010

LEVER

ASSEMBLY - throttle (w/threaded top) (Order Ref. 1 and 4)

1шт.

4

A137812

LEVER

ASSEMBLY - throttle, Includes: Ref. 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- (5/8 x 3/4 x 1/2" bronze)

2шт.

6

A61069

DISC

- friction

2шт.

7

195-2172

WASHER,7/16" x 1 1/4" x .083"

- 7/16 x 1-1/4 x 5/64"

2шт.

8

A65583

SPRING

- friction disc (Black finish)

1шт.

9

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. self-locking, jam

2шт.

10

A141874

SET SCREW,1/4" - 20 x 1 1/4"

- lever stop (1/4 x 1-1/4" N.C. sltd. set)

2шт.

13

A65587

PLATE

PLACE ASSEMBLY - console front shaft support

1шт.

14

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

15

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

1шт.

16

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

1шт.

17

131-1306

JAM NUT,Jam, 3/8"-16

NUT - 3/8" N.C. self-locking, jam

3шт.

18

A63015

YOKE

- throttle cable

1шт.

19

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

1шт.

20

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

21

A63013

CABLE

ASSEMBLY - hand throttle, Includes: Ref. 22 - 24

1шт.

22

25-157

JAM NUT,Jam, 7/16"-20, G5

- 7/16" N.C. hex., jam

4шт.

23

193-31

LOCK WASHER,Int Tooth, 7/16"

WASHER - Shakeproof, 7/16" int.

4шт.

24

129-27

NUT,Hex, #10 - 32

- #10 N.F. hex., jam

2шт.

25

A63014

PIVOT

- control cable

1шт.

26

195-18

WASHER,1/4"

- 9/32 x 5/8 x 1/16"

1шт.

27

132-7

COTTER PIN,1/16" x 3/4"

Pin, Split (Cotter), 1/16" x 3/4"

1шт.

28

193-1000

NUT,Keps, w/LW,#10-32

- #10 N.F. hex. Keps

1шт.

30

A64850

LEVER

CONTROL - flexible stop

1шт.

33

A63960

BRACKET

SUPPORT - stop cable mounting

1шт.

34

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

1шт.

35

92-6

LOCK WASHER,3/8"

1шт.

36

B51765

CLIP

- stop cable

1шт.

37

173-274

SCREW,Sl Rnd Hd, #8 - 32 x 1/2"

- #8 x 1/2" N.C. rd. hd. mach.

1шт.
