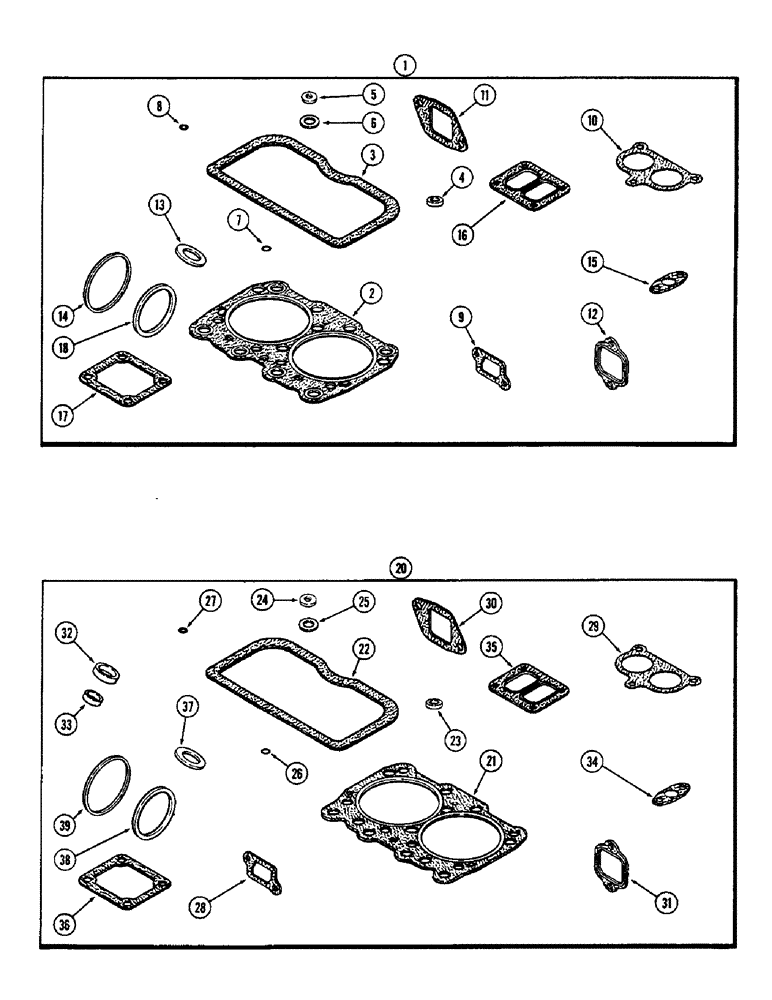

Запчасти Case IH 1370 (048) - ENGINE GASKET KITS, (504BDT) DIESEL ENGINE, VALVE GRIND KIT (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A151404
GASKET
KIT - valve grind, Includes: Ref. 2 - 18, For complete engine overhaul order 1-A151404, 1-A44075 and A152479.
1шт.
2
A138397
CYLINDER HEAD GASKET
- cylinder, Serial Range: head-block
3шт.
3
A65734
CYLINDER HEAD GASKET
- cylinder head cover
3шт.
4
A23684
GASKET
GASKET - cover studs
6шт.
5
A34133
GASKET
- breather tube bolt
3шт.
6
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
- breather, Serial Range: tube-cover
3шт.
7
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- rocker shaft oil tube
3шт.
8
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- valve stem
12шт.
9
A58637
MANIFOLD GASKET
- water manifold
3шт.
10
A58639
GASKET
- thermostat housing
1шт.
11
A58662
MANIFOLD GASKET
- intake manifold
6шт.
12
A140252
MANIFOLD GASKET
- exhaust manifold (Metal faced) (Replaces A58895)
6шт.
13
1342829C1
GASKET
WASHER - injection nozzle; Replaces A76640
6шт.
14
A138817
RING,2.64mm Thk
SEAL - turbocharger
1шт.
15
A58892
GASKET,1.59mm Thk
- turbocharger oil drain tube
1шт.
16
A58899
GASKET,0.45mm Thk
-, Serial Range: turbocharger-manifold
2шт.
17
A58910
GASKET
- air intake elbow
1шт.
18
A152831
SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk
- turbocharger exhaust
1шт.
20
A151406
GASKET
KIT - valve grind, use with 5.092" to 5.097" fire dam diameter sleeve, Includes: Ref. 21 - 39, For complete engine overhaul order 1-A151406, 1-A44075 and A152479.
1шт.
21
A142481
GASKET
- cylinder head, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
3шт.
22
A65734
CYLINDER HEAD GASKET
- cylinder head cover, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
3шт.
23
A23684
GASKET
GASKET - cover studs (rubber), valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
6шт.
24
A34133
GASKET
- breather tube (fiber), valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
3шт.
25
A58635
GASKET,17.27mm ID x 32mm OD x 6.6mm Thk
- breather tube, valve grind kit, use with 5.092' to 5.097" fire dam diameter sleeve
3шт.
26
A27880
O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro
- rocker shaft oil tube, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
3шт.
27
A58628
SEAL,8mm ID x 13.77mm OD x 2.16mm Thk
- intake and exhaust valve stems, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
12шт.
28
A58637
MANIFOLD GASKET
- water manifold, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
3шт.
29
A58639
GASKET
- thermostat housing, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
1шт.
30
A58662
MANIFOLD GASKET
- intake manifold, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
6шт.
31
A140252
MANIFOLD GASKET
- exhaust manifold (Metal faced) (Replaces A58895), valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
6шт.
32
A41403
WASHER,9.55mm ID x 14.18mm OD x 3.38mm Thk
- injection nozzle, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
6шт.
33
A41402
SEAL,7.89mm ID x 9.74mm OD x 2.87mm Thk
- carbon stop, injection nozzle, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
6шт.
34
A58892
GASKET,1.59mm Thk
- turbo-charger oil drain tube, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
1шт.
35
A58899
GASKET,0.45mm Thk
- turbo-charger, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
2шт.
36
A58910
GASKET
- air intake elbow, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
1шт.
37
1342829C1
GASKET
- injection nozzle, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve; Replaces A76640
6шт.
38
A138817
RING,2.64mm Thk
SEAL - turbocharger, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
1шт.
39
A152831
SHIM,91.95mm ID x 101.6mm OD x 0.84mm Thk
- turbocharger exhaust, valve grind kit, use with 5.092" to 5.097" fire dam diameter sleeve
1шт.
Выбрано товаров: 38
