Запчасти Case IH 1370 (046) - OIL PAN, (504BDT) DIESEL ENGINE (02) - ENGINE

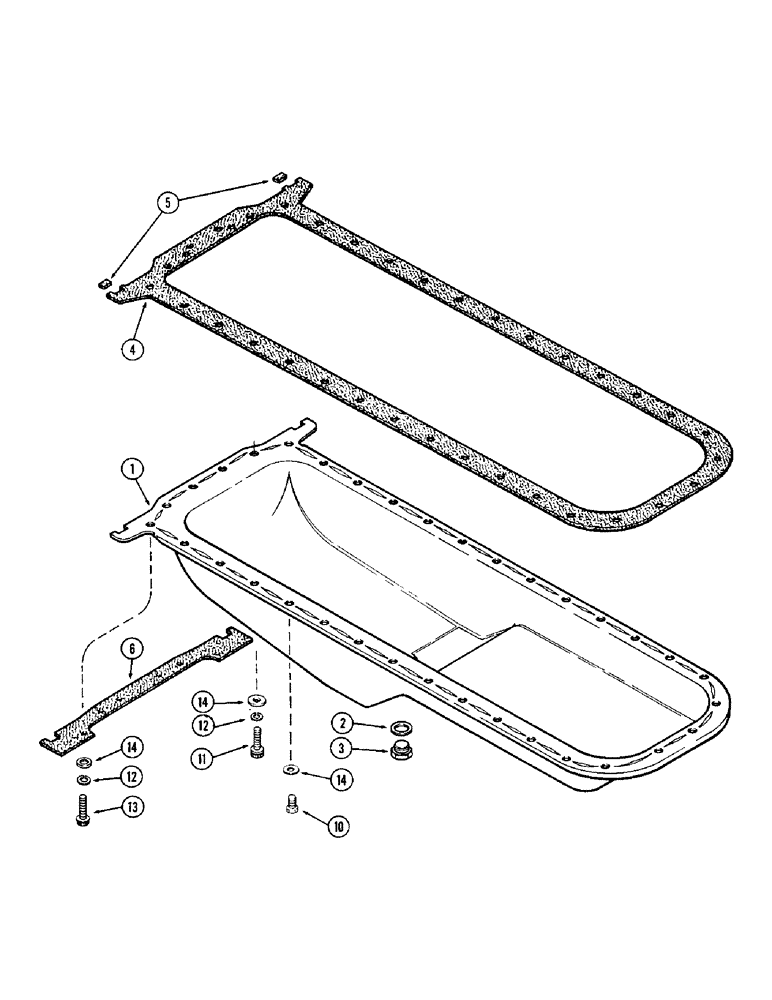

Схема запчастей Case IH 1370 - (046) - OIL PAN, (504BDT) DIESEL ENGINE (02) - ENGINE
4
14
12
14
5
10
11
6
12
3
1
2
13
14

Артикул

Название

Примечание

Количество

1

A66126

SUMP

PAN - oil (Order A148753)

1шт.

1

A148753

PAN

- oil (w/reinforcement strips) (Replaces A66126)

1шт.

2

A34826

PLUG,7/8" - 18 ORB

- drain

1шт.

3

A27968

RING

- copper, drain plug

1шт.

4

NSS

NOT SOLD SEPARAT

GASKET - pan to block (See Figure 050)

1шт.

5

NSS

NOT SOLD SEPARAT

GASKET - corner (See Figure 050)

2шт.

6

NSS

NOT SOLD SEPARAT

GASKET - flywheel housing (See Figure 050)

1шт.

10

193-553

SCREW,SEMS, Hex Hd, 3/8"-16 x 7/8", G5

BOLT ASSEMBLY - 3/8 x 7/8" N.C. hex. pan to block, with lockwasher

28шт.

11

166-46

12 PT SCREW,Flg, 3/8" - 16 x 1 1/4", Gr 8

SCREW - cap, 3/8 x 1-1/4" Ferry hd. (Pan to flywheel plate)

4шт.

12

92-6

LOCK WASHER,3/8"

4шт.

13

193-528

SCREW,SEMS, Hex Soc Hd, 3/8"-16 x 1 1/2"

- 3/8 x 1-1/2" N.C. hex. Sems (Outside rear holes)

2шт.

14

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16" (Use with A66126 pan only)

32шт.

Выбрано товаров: 12
