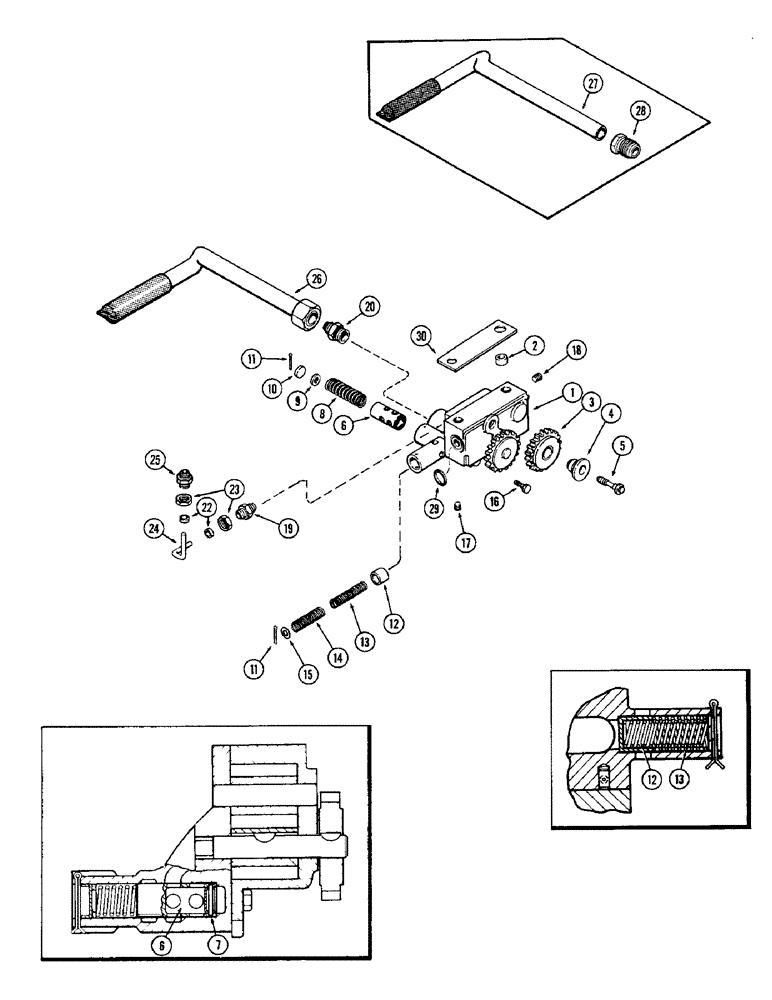

Запчасти Case IH 1370 (044) - OIL PUMP, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A152998

PUMP

ASSEMBLY - lube oil (Replaces A140444), Includes: Ref. 2 - 19

1шт.

2

A58915

SLEEVE

- oil pump body

1шт.

3

A63941

GEAR WHEEL

GEAR - idler

1шт.

4

A63944

SHAFT

- idler gear

1шт.

5

A63945

12 PT SCREW

BOLT - idler gear to pump body

1шт.

6

A75286

VALVE

ASSEMBLY - oil pressure relief, Includes: Ref. 7

1шт.

7

138-2063

PIN,3/32" x 1", Coiled

1шт.

8

A63949

SPRING

- oil pump valve

1шт.

9

A57470

WASHER

- 3/64 x 11/16 x 1/32"

1шт.

10

41-1016

PLUG,Cup, 1"

- cup (1")

1шт.

11

132-34

COTTER PIN,3/32" x 1 3/4"

Pin, Split (Cotter), 3/32" x 1 3/4"

2шт.

12

A76152

VALVE

- safety, pressure relief

1шт.

13

A76154

SPRING

- inner (3-7/64" free length)

1шт.

14

A76153

SPRING

- outer (2-7/16" free length)

1шт.

15

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

1шт.

16

26-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

Cover to body Hex, 5/16"-18 x 1", G8, Full Thd

4шт.

17

221-850

PLUG,Hex Soc, 1/16"-27

- pipe (1/16" square socket head) In cover

3шт.

18

221-843

PLUG,Hex Soc, 3/8"-18

- pipe (3/8" hex. socket head)

1шт.

19

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (1/4" tube x 1/8" P.T.) (In cover)

1шт.

20

A142004

CONNECTOR, ELEC

CONNECTOR - suction tube

1шт.

22

222-153

SLEEVE,1/4" Tube

2шт.

23

87017024

TUBE NUT,1/2"-24

NUT - flex tube fitting (1/4" tube)

2шт.

24

A75290

TUBE

- oil pump gallery sensing

1шт.

25

222-4022

HYD CONNECTOR,1/2"-24 x 1/8" NPTF

CONNECTOR - flex (1/4" tube x 1/8" P.T.) In cyl. block

1шт.

26

A142449

TUBE

ASSEMBLY - suction (Incl. screen)

1шт.

27

A66174

TUBE

ASSEMBLY - oil suction (Incl. screen) (Order A142004 and A142449)

1шт.

28

222-510

TUBE NUT,1 1/4"-18

NUT - tube (1" inverted flare) (Use w/A66174 tube)

1шт.

29

A64434

O-RING,0.93" ID x 1.142" x 0.106"

- pump to block (59/64 x 1-1/8 x 7/64")

1шт.

30

A58859

SHIM,.005" Thk

Oil pump .005" Thk

1шт.
