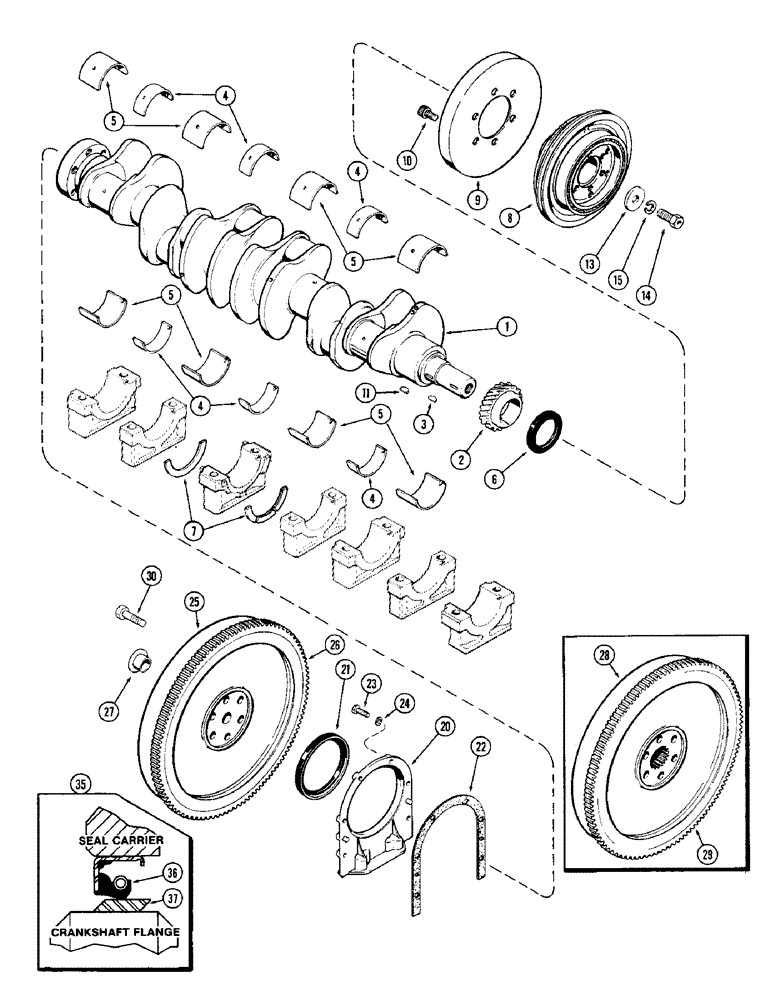

Запчасти Case IH 1370 (040) - CRANKSHAFT AND FLYWHEEL, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A77270

CRANKSHAFT

KIT - (Replaces A66728), Includes: Ref. 2 and 3

1шт.

2

A66404

GEAR

- crankshaft front (Replaces A58573)

1шт.

3

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Gear #C, 5/16" x 1 1/8", HT

1шт.

4

A43089

BEARING LINER

LINER KIT - main bearing, narrow (Set of two) (Std.)

3шт.

4

A43120

LINING

LINER KIT - main bearing, narrow (Set of two) (-.002") (Replaces A41903)

3шт.

4

A43121

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (Set of two) (-.010") (Replaces A41904)

3шт.

4

A41905

LINING

LINER KIT - main bearing, narrow (Set of two) (-.020")

3шт.

4

A43123

SET OF CONN ROD BRGS STD

LINER KIT - main bearing, narrow (Set of two) (-.030") (Replaces A41906)

3шт.

5

A43090

BEARING LINER

LINER KIT - main bearing, wide (Set of 2) (Std.)

4шт.

5

A43124

LINING

LINER KIT - main bearing, wide (Set of 2) (-.002") (Replaces A41907)

4шт.

5

A43125

CRANKSHAFT BEARING

LINER KIT - main bearing, wide (Set of 2) (-.010") (Replaces A41908)

4шт.

5

A41909

BEARING LINER

LINER KIT - main bearing, wide (Set of 2) (-.020")

4шт.

5

A41910

JOURNAL

LINER KIT - main bearing, wide (Set of 2) (-.030")

4шт.

6

A62049

OIL SEAL

- crankshaft front, 2-5/8 x 3-5/8 x 15/32"

1шт.

7

A58565

WASHER

- thrust, crankshaft (Std.) (.157" thick)

2шт.

7

A42447

WASHER

- thrust, crankshaft (Oversize) (.163" thick)

2шт.

8

A148977

X

PULLEY - fan drive, without timing marks (Order A66133), Start Serial: 10095063

1шт.

8

A66133

PULLEY

- fan drive, with timing marks, Serial Range: -10095063

1шт.

9

A150029

DAMPER

- viscous pulley, with timing marks, Start Serial: 10095063

1шт.

9

A66134

SHOCK ABSORBER

DAMPER - pulley viscous, without timing marks, Serial Range: -10095063

1шт.

10

166-85

12 PT SCREW,Flg, 1/2" - 13 x 1", Gr 8

BOLT - (1/2 x 1" N.C. Ferry hd. cap)

6шт.

11

126-129

WOODRUFF KEY,#C, 5/16" x 1 1/8", HT

Pulley #C, 5/16" x 1 1/8", HT

1шт.

13

A27903

WASHER

- drive pulley

1шт.

14

88112

BOLT,Hex, 5/8" - 18 x 1 1/2", Gr 5

Drive pulley Hex, 5/8"-18 x 1 1/2", G5

1шт.

15

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

20

A57457

RETAINER

- crankshaft rear oil seal

1шт.

21

A62050

OIL SEAL

- oil, crankshaft, rear, 4-3/4 x 5-3/4 x 1/2" (See Ref. 35)

1шт.

22

A32830

GASKET

- retainer

1шт.

23

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

6шт.

24

92-6

LOCK WASHER,3/8"

6шт.

25

A63926

FLYWHEEL ASSEMBLY - (Used prior to trans. ser. no. 2428701), Includes: Ref. 26 and 27

1шт.

26

A58778

GEAR

- ring (139 teeth)

1шт.

27

A63928

BUSHING

- P.T.O., Serial Range: shaft-flywheel

1шт.

28

A66611

FLYWHEEL

ASSEMBLY - (w/splined shaft hole) (1st used trans. ser. no. 2428701), Includes: Ref. 29

1шт.

29

A58778

GEAR

- ring (139 teeth)

1шт.

30

28-1028

BOLT,Hex, 5/8" - 18 x 1-3/4", Gr 8

- 5/8 x 1-3/4" N.F. hex.

6шт.

35

A43194

KIT

- wear seal, crankshaft, Includes: Ref. 36 amd 37

1шт.

36

NSS

NOT SOLD SEPARAT

SEAL - oil, rear

1шт.

37

NSS

NOT SOLD SEPARAT

SLEEVE - wear

1шт.

A154684

SLEEVE

wear, front, crankshaft pulley wear sleeve kit also found in the 2470 parts book

1шт.
