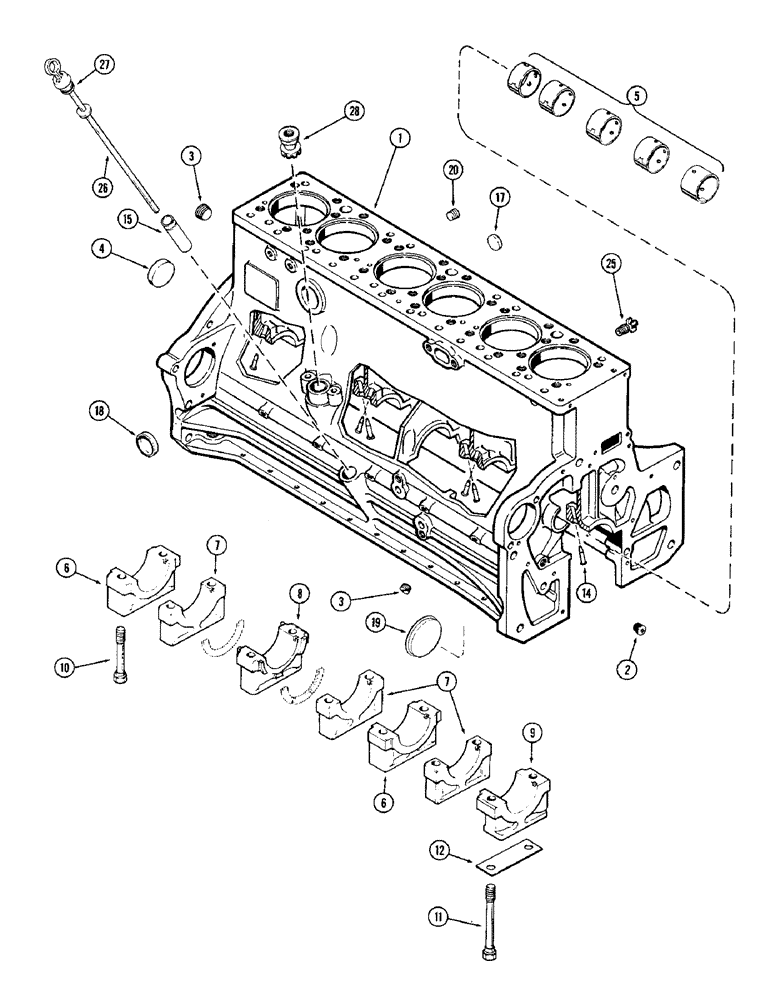

Запчасти Case IH 1370 (038) - CYLINDER BLOCK, (504BDT) DIESEL ENGINE, USED PRIOR TO ENGINE SERIAL NUMBER 2556252 (02) - ENGINE

A43150

BLOCK

ASSEMBLY - short (Includes stripped block, pistons, connecting rods and brg., crankshaft and brgs., camshaft and bushings, timing gears and push rod lifters) (Casting no. A58516), Includes: Ref. 1 - 25

1шт.

1

A43149

BLOCK

ASSEMBLY - stripped (Casting no. A58516) (Order A44077 and 30-A76638), Includes: Ref. 2 - 20

1шт.

2

221-843

PLUG,Hex Soc, 3/8"-18

- pipe, oil gallery (3/8" P.T. hex. socket head)

4шт.

3

221-41

PLUG

- pipe, oil gallery (1/8" P.T., slotted headless)

6шт.

4

A24361

PLUG

- camshaft hole (2-3/8" cup type)

1шт.

5

A23544

BUSHING

SET - camshaft (See Figure 034)

1шт.

6

A58562

CAP

- main bearing, wide

2шт.

7

A58563

CAP

- main bearing, narrow

3шт.

8

A58564

CAP

- main bearing, thrust

1шт.

9

A63902

CAP

- main bearing, front

1шт.

10

A58566

STEP BOLT

BOLT - (5/8 x 4-1/2" N.C.)

12шт.

11

A58567

STEP BOLT

BOLT - (5/8 x 6-13/16" N.C.) (Oil pump and bearing cap)

2шт.

12

A58859

SHIM,.005" Thk

Oil pump to front brg. cap .005" Thk

1шт.

14

A63903

NOZZLE CAP

NOZZLE - piston oil cooling

6шт.

15

A34540

TUBE

- oil filler

1шт.

17

A58568

PLUG,Cup, 1 3/8", Stainless

- (1-3/8" cup type)

3шт.

18

A58569

PLUG,Cup, 2", Stainless

- (2" cup type) Block heater hole

1шт.

19

41-1052

PLUG,Cup, 3 1/4"

- (3-1/4" cup type)

1шт.

20

221-845

PLUG,Hex Soc, 3/4"-14

- pipe (3/4" hex. socket hd.) Turbo drain hole

1шт.

21

A34266

DRIVE

ASSEMBLY - tachometer

1шт.

25

A23656

COCK, DRAIN

VALVE - drain, water

1шт.

26

A66123

DIPSTICK

ASSEMBLY - oil level, Includes: Ref. 27

1шт.

27

A42597

O-RING,0.734" ID x 1.012" OD x 0.139"

- (3/4 x 1 x 1/8")

2шт.
