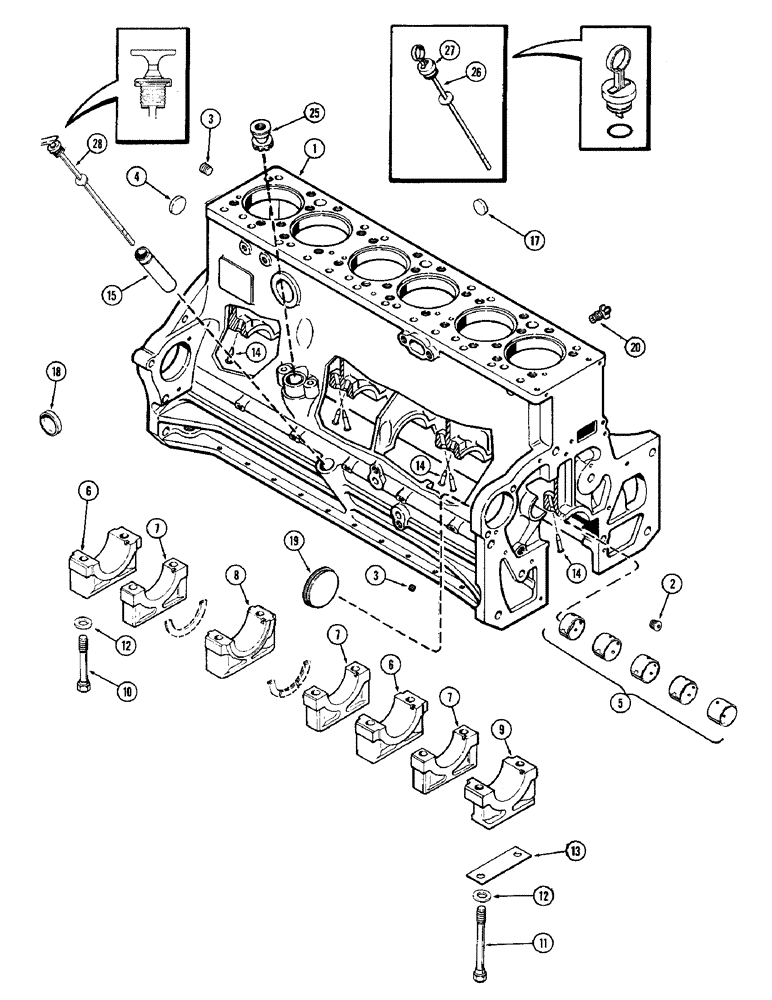

Запчасти Case IH 1370 (036) - CYLINDER BLOCK, (504BDT) DIESEL ENGINE, FIRST USED ENGINE SERIAL NUMBER 2556252 (02) - ENGINE
№
Артикул
Название
Примечание
Количество
A46038
CRANKCASE
BLOCK ASSEMBLY - short (Includes stripped block, pistons, connecting rods, bearings and crankshaft, camshaft, timing gear and lifters) (Casting no. A66527) (With 3-A138397 gaskets, replaces A44079), Includes: Ref. 1 - 25
1шт.
1
A44077
CRANKCASE
BLOCK ASSEMBLY - stripped (Casting no. A66527), Includes: Ref. 2 - 20
1шт.
2
221-843
PLUG,Hex Soc, 3/8"-18
- oil gallery (3/8" P.T. hex. socket hd.)
4шт.
3
221-1849
PLUG
- oil gallery (1/8" P.T. hex. socket hd.)
6шт.
4
A24361
PLUG
- camshaft hole (2-3/8" cup type)
1шт.
5
A23544
BUSHING
SET - camshaft (See Figure 034)
1шт.
6
A58562
CAP
- main bearing, wide
2шт.
7
A58563
CAP
- main bearing, narrow
3шт.
8
A58564
CAP
- main bearing, thrust
1шт.
9
A63902
CAP
- main bearing, front
1шт.
10
A66948
STEP BOLT
BOLT - (5/8 x 4-15/16")
12шт.
11
A66949
STEP BOLT
BOLT - (5/8 x 7-3/16") (Oil pump and brg. cap)
2шт.
12
A58629
BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk
WASHER - brg. cap bolt (21/32 x 1 x 3/16")
14шт.
13
A58859
SHIM,.005" Thk
Oil pump to brg. cap .005" Thk
1шт.
14
A63903
NOZZLE CAP
NOZZLE - piston oil cooling
6шт.
15
A34540
TUBE
- oil filler and dipstick
1шт.
17
A58568
PLUG,Cup, 1 3/8", Stainless
- L.H. side and rear (1-3/8" cup type)
3шт.
18
A58569
PLUG,Cup, 2", Stainless
- R.H. side heater hole (2" cup type)
1шт.
19
41-1052
PLUG,Cup, 3 1/4"
- (3-1/4" cup type)
1шт.
20
A23656
COCK, DRAIN
VALVE - drain, water (1/4" P.T.)
1шт.
25
A34266
DRIVE
ASSEMBLY - tachometer
1шт.
26
A66123
DIPSTICK
ASSEMBLY - oil level (Push type) (See A138329), Includes: Ref. 27
1шт.
27
A42597
O-RING,0.734" ID x 1.012" OD x 0.139"
- (3/4 x 1 x 1/8")
2шт.
28
A138329
DIPSTICK
ASSEMBLY - (Screw type)
1шт.
AR77825
REMAN-BASIC ENGINE
basic reman, after S/N 2556252
1шт.
AC77825
CORE-ENGINE
Return Number, Engine Basic - eng.s/n 2556252 & aft., N.A. Only
1шт.
Выбрано товаров: 26
