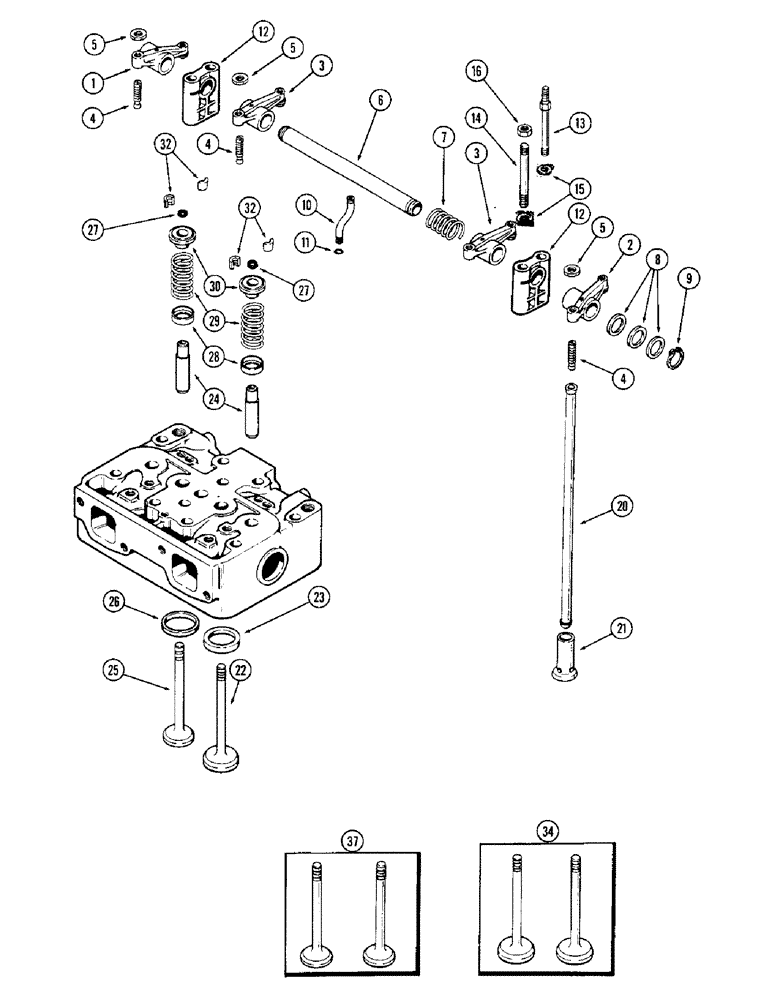

Запчасти Case IH 1370 (032) - VALVE MECHANISM, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A148137

ROCKER ARM

ARM ASSEMBLY - rocker, #1, 3 and 5 exhaust valves (Includes Ref. 4 and 5) (Replaces A58655)

3шт.

2

A148138

ARM

ASSEMBLY - rocker, #2, 4 and 6 exhaust valves (Includes Ref. 4 and 5) (Replaces A58656)

3шт.

3

A148136

ARM

ASSEMBLY - rocker, intake valves (Replaces A58654), Includes: Ref. 4 and 5

6шт.

4

A21105

ADJUSTMENT SCREW,3/8" - 24 x 1 9/16"

SCREW - adjusting

1шт.

5

25-156

JAM NUT,Jam, 3/8"-24, G5

- jam, 3/8" N.F. hex.

1шт.

6

A57532

SHAFT

ASSEMBLY - rocker arm

3шт.

7

A27877

SPRING

- rocker arm shaft

3шт.

8

A27878

WASHER

- rocker arm shaft

1шт.

9

B18206

SNAP RING,#87, Ext

Ring, Snap, , rocker arm shaft #87, Ext

6шт.

10

A58657

TUBE

- oil, rocker arm shaft

3шт.

11

A27880

O-RING,0.07" Thk x 0.18" ID, -8, Cl 5, 75 Duro

- oil tube (3/16 x 5/16 x 1/16")

3шт.

12

A61128

BRACKET

- rocker arm shaft

6шт.

13

A67121

STUD

- bracket and cover (7/16" N.C. x 6-1/16")

6шт.

14

A58659

STUD

- bracket (7/16" N.C. x 4-5/16")

6шт.

15

195-29

WASHER,7/16"

- 15/32 x 59/64 x 1/16"

12шт.

16

25-107

NUT,7/16"-14, G5

- 7/16" N.C. hex.

6шт.

20

A141841

ROD

ASSEMBLY - push (Replaces A58596)

12шт.

21

A20865

TAPPET

LIFTER - push rod

12шт.

21

A21857

TAPPET

LIFTER - push rod (.010" oversize)

12шт.

22

NSS

NOT SOLD SEPARAT

VALVE - exhaust (Order Ref. 34)

6шт.

23

A66192

INSERT

- exhaust valve seat

6шт.

24

A41783

GUIDE

- valve stem

12шт.

25

NSS

NOT SOLD SEPARAT

VALVE - intake (Order Ref. 37)

6шт.

26

A66191

INSERT

- intake valve seat

6шт.

27

A58628

SEAL,8mm ID x 13.77mm OD x 2.16mm Thk

- valve stem

12шт.

28

A66328

SEAT

- valve spring (Replaces A58623)

12шт.

29

A66444

SPRING

- valve

12шт.

30

A66336

ROTATOR

ROTO-CAP - valve spring

12шт.

32

A27872

LOCK

- valve spring

24шт.

34

A46289

VALVE

KIT - exhaust (Set of 2) (Replaces A41753)

3шт.

37

A44575

VALVE

KIT - intake (Set of 2)

3шт.
