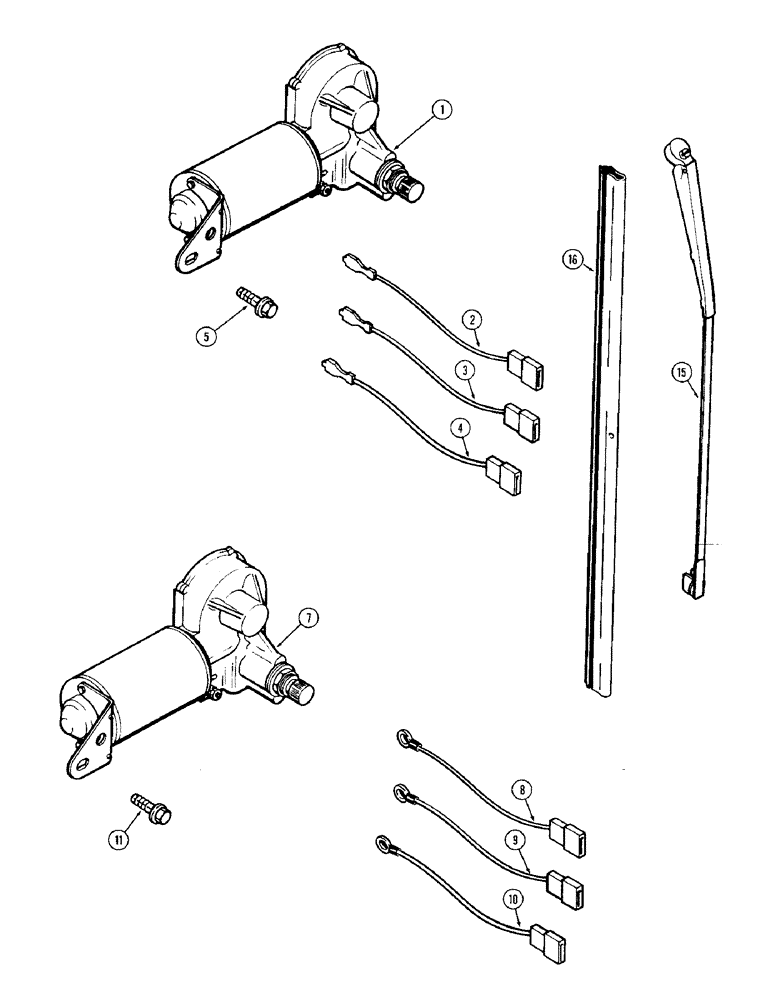

Запчасти Case IH 1370 (506) - CAB, WINDSHIELD WIPER (09) - CHASSIS/ATTACHMENTS

F98158

MOTOR, ELECTRIC

MOTOR ASSEMBLY - wiper (1st used cab ser. no. 7882601), Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - (Order F98158)

1шт.

2

F64188

ELECTRICAL WIRE

WIRE - motor (Green)

1шт.

3

F64189

ELECTRICAL WIRE

WIRE - motor (Blue)

1шт.

4

F64190

ELECTRICAL WIRE

WIRE - motor (Orange)

1шт.

5

187-1088

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-16 x 1/2", slotted washer hd.

1шт.

A42692

MOTOR

ASSEMBLY - wiper to cab., Includes: Ref. 7 - 10, Serial Range: -7882601

1шт.

7

NSS

NOT SOLD SEPARAT

MOTOR - (Order F98158)

1шт.

8

A42693

ELECTRICAL WIRE

WIRE - motor (Green)

1шт.

9

A42694

ELECTRICAL WIRE

WIRE - motor (Blue)

1шт.

10

A42695

ELECTRICAL WIRE

WIRE - motor (Orange)

1шт.

11

187-1054

SELF-TAP SCREW,Hex Wash Hd, #10 x 1/2"

SCREW - self-tapping, #10-24 x 1/2" slotted washer hd.

1шт.

15

T41946

ARM

- windshield wiper (16")

1шт.

16

A42580

WIPER BLADE,203.2mm L

BLADE - windshield wiper (15")

1шт.
