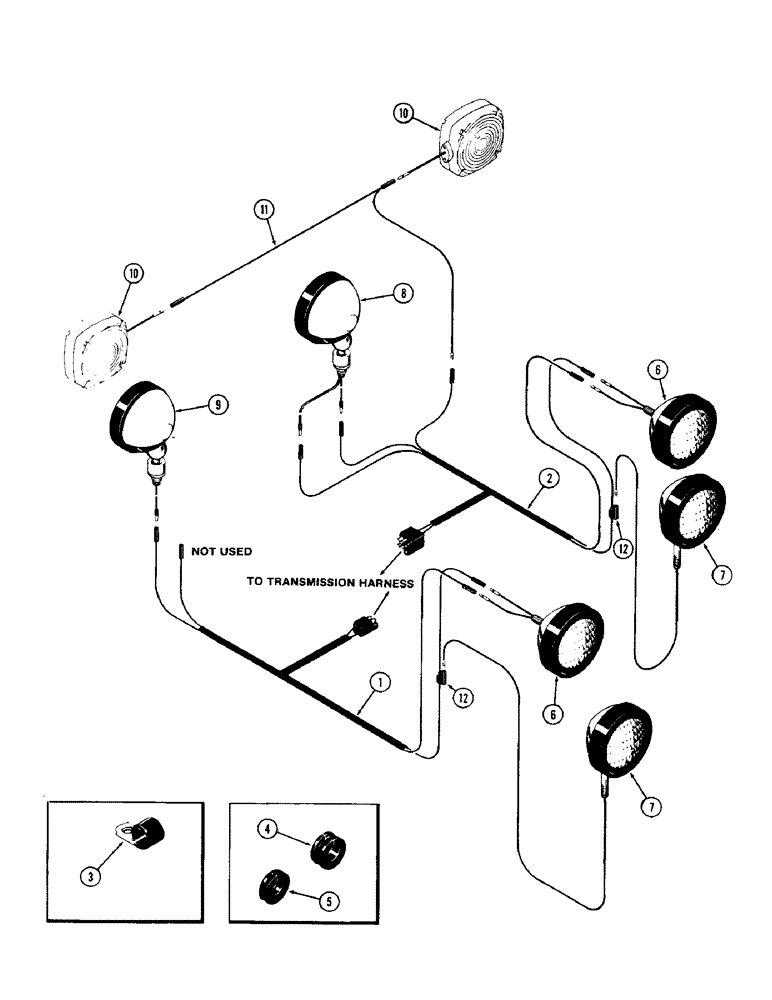

Запчасти Case IH 1370 (504) - CAB, LIGHTS AND WIRING (09) - CHASSIS/ATTACHMENTS

1

A66913

HARNESS

- R.H. (1st used P.I.N. 8753831)

1шт.

1

A64006

HARNESS

- R.H., Serial Range: -8753831

1шт.

2

A66915

HARNESS

- L.H. (1st used P.I.N. 8753831)

1шт.

2

A64007

HARNESS

- L.H., Serial Range: -8753831

1шт.

3

49885

CLAMP

CLIP - wire harness

4шт.

4

353-700

BUSHING

- cab fender (17/64" I.D.) (Replaces A31076)

1шт.

5

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- headlamp wires, cab front frame (1/2" I.D.)

2шт.

6

A64498

LAMP

- front head driving (See Figure 120)

2шт.

7

A59723

LAMP

- front cultivator (See Figure 122)

2шт.

8

A59703

LAMP

- rear flood and tail (See Figure 124)

1шт.

9

A63822

HEADLIGHT

LAMP - rear flood (See Figure 124)

1шт.

10

NSS

NOT SOLD SEPARAT

LAMP - flasher (Order A44201 - Figure 118)

2шт.

11

F63368

ELECTRICAL WIRE

WIRE -, Serial Range: flasher-harness

1шт.

12

A62556

CONNECTOR, ELEC

CONNECTOR - splice, cultivating lamp

2шт.
