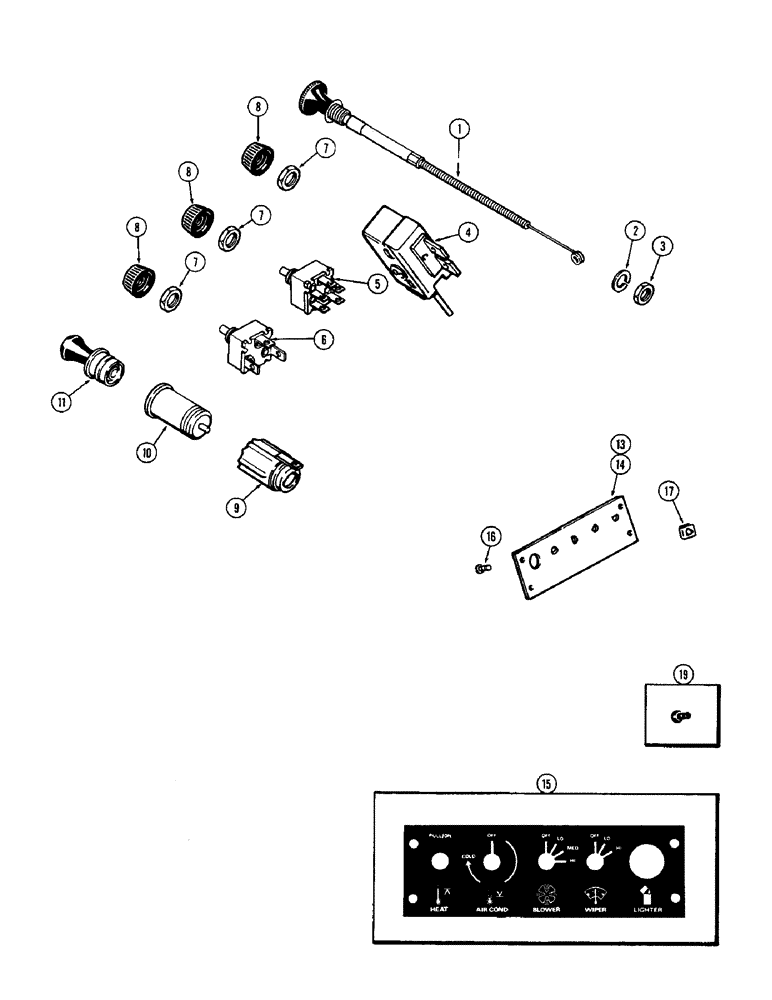

Запчасти Case IH 1370 (502) - CAB, CONTROLS AND PANEL (09) - CHASSIS/ATTACHMENTS

1

A42614

CABLE

- heater control, Includes: Ref. 2 and 3

1шт.

2

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

3

129-148

JAM NUT,Jam, 3/4"-10, G5

- jam, 3/4" N.C.

1шт.

4

A42623

CONTROL

- cab temperature

1шт.

5

A42622

SWITCH

- blower

1шт.

6

A42660

SWITCH

- wiper motor

1шт.

7

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- jam, 7/16" N.F. hex.

3шт.

8

A42578

KNOB

- switch

3шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

10

F63530

SOCKET/RECEPTACLE

SOCKET ASSEMBLY - cigar lighter

1шт.

11

A143340

SWITCH

ELEMENT - plug in, cigar lighter (Replaces F63531)

1шт.

13

F63868

DECAL

PANEL - control (Decal imprinted on panel) (1st used cab ser. no. 7824051)

1шт.

14

F89844

PANEL

ASSEMBLY - control to cab, Includes: Ref. 15, Serial Range: -7824051

1шт.

15

321-2483

DECAL

- panel to cab, Serial Range: -7824051

1шт.

16

173-281

SCREW,Phil Rnd Hd, #10 - 24 x 3/4"

- #10-24 x 3/4" Phillips hd.

4шт.

17

131-861

SPRING NUT,Tinn, U, #10-24

4шт.

19

353-402

PLUG,Dome, .375" hole, Nylon

1шт.

19

353-403

PLUG,Dome, .437" hole, Nylon

1шт.
