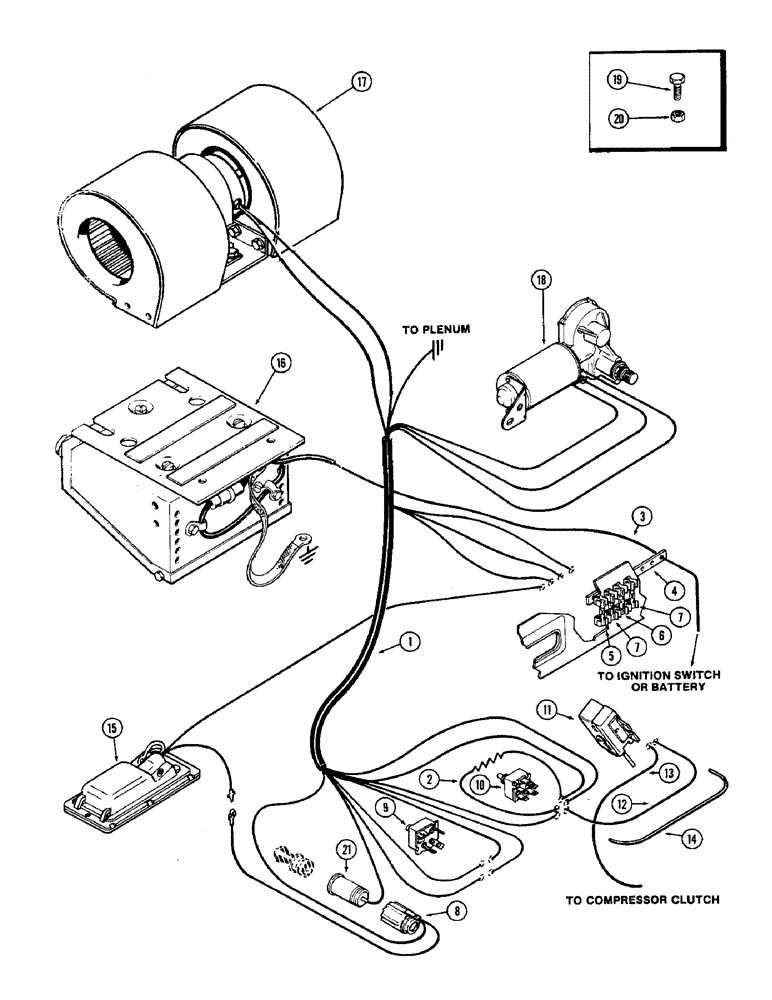

Запчасти Case IH 1370 (500) - CAB, CONTROLS AND WIRING, USED PRIOR TO CAB SERIAL NUMBER 7844980 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

SPARE PART ASSEMBLY - Control panel wire, Includes Ref. 2

1шт.

2

A42652

ELECTRICAL WIRE

WIRE Resistor (18" orange and purple stripe)

1шт.

3

F63816

ELECTRICAL WIRE

WIRE Harness to starter switch (154-1/2" red)

1шт.

4

F63512

BAR

SPARE PART Buss (See Figure 486)

1шт.

5

223-33

FUSE,1 Amp, Type 3AG

Buss (Dome light)

1шт.

6

223-35

FUSE,8 Amp, Type 3AG

Buss (Wiper)

1шт.

7

223-15

FUSE,15 Amp, Type 3AG

Buss (Blower and cigar lighter)

2шт.

8

F63738

CIGAR LIGHTER

SHELL - clamping, cigar lighter

1шт.

9

A42660

SWITCH

Wiper motor

1шт.

10

A42622

SWITCH

Blower motor

1шт.

11

A42623

CONTROL

Cab temperature

1шт.

12

A42624

ELECTRICAL WIRE

WIRE Blower switch to temp. control (6" black)

1шт.

13

F63525

ELECTRICAL WIRE

WIRE Temp. control to compressor clutch (215" blue)

1шт.

14

F63719

TUBE

Shielding, temperature control (8-1/2")

1шт.

15

A42658

INTERIOR LIGHT

Dome (See Figure 486)

1шт.

16

REF

INSTRUCTION

RADIO KIT - (See Figure 508)

1шт.

17

REF

INSTRUCTION

BLOWER ASSEMBLY - (See Figure 490)

1шт.

18

REF

INSTRUCTION

MOTOR - windshield wiper (See Figure 506)

1шт.

19

163-18

SCREW,Hex, #10 - 24 x 3/8"

Mach (Wire harness to wiper switch)

1шт.

20

86625057

NUT,#10-24, GB

Esna

1шт.

21

F63530

SOCKET/RECEPTACLE

ASSEMBLY - cigar lighter

1шт.
