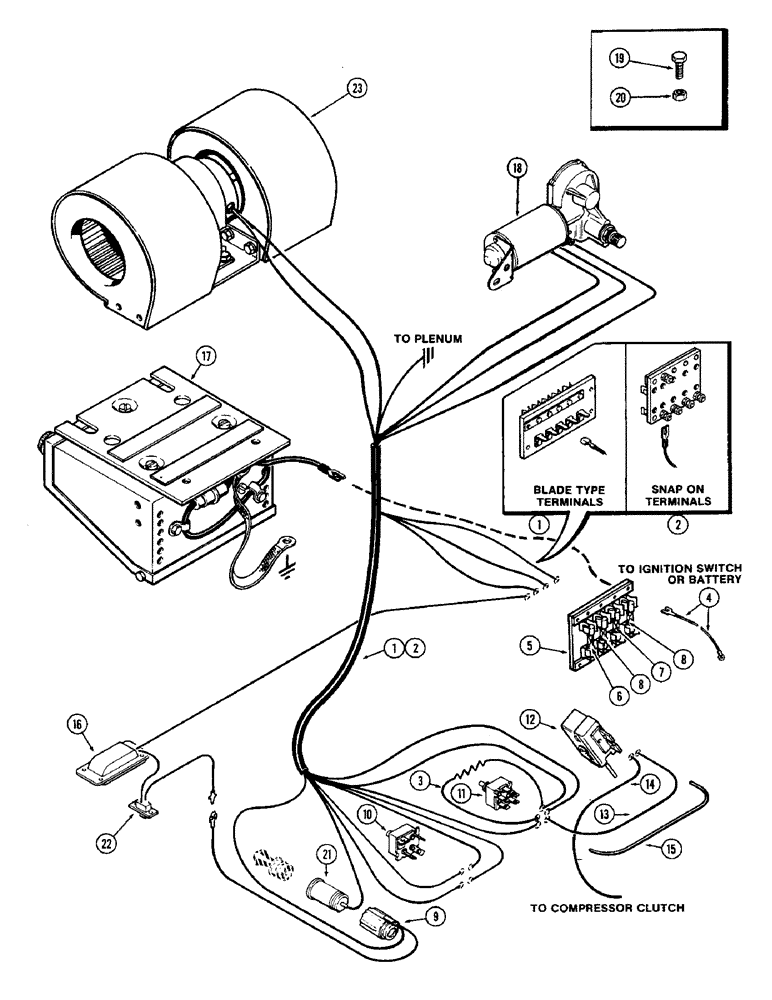

Запчасти Case IH 1370 (498) - CAB, CONTROLS AND WIRING, FIRST USED CAB SERIAL NUMBER 7844980 (09) - CHASSIS/ATTACHMENTS

1

F63817

HARNESS

SPARE PART ASSEMBLY - (w/snap-on fuse terminals) to cab (Includes Ref. 3), Serial Range: -7841940

1шт.

2

F64111

HARNESS

ASSEMBLY - (w/spade type fuse terminals) (1st used cab. S/N 7841940), Includes: Ref. 3

1шт.

3

A42652

ELECTRICAL WIRE

WIRE Resistor (18" orange and purple stripe)

1шт.

4

F63816

ELECTRICAL WIRE

WIRE Harness to starter switch (154-1/2")

1шт.

5

REF

INSTRUCTION

BLOCK - fuse mounting (See Figures 482 and 484)

1шт.

6

223-33

FUSE,1 Amp, Type 3AG

Buss (Dome light)

1шт.

7

223-35

FUSE,8 Amp, Type 3AG

Buss (Wiper)

1шт.

8

223-15

FUSE,15 Amp, Type 3AG

Buss (Blower and cigar lighter)

2шт.

9

F63738

CIGAR LIGHTER

SHELL - clamping

1шт.

10

A42660

SWITCH

Wiper motor

1шт.

11

A42622

SWITCH

Blower motor

1шт.

12

A42623

CONTROL

Cab temperature

1шт.

13

A42624

ELECTRICAL WIRE

WIRE Blower switch to temp. control (6" black)

1шт.

14

F63661

ELECTRICAL WIRE

WIRE Temp. control to compressor switch (215" blue)

1шт.

15

F63719

TUBE

Shield, temperature control (8-1/2")

1шт.

16

REF

INSTRUCTION

LIGHT ASSEMBLY - dome (See Figures 482 and 484)

1шт.

17

REF

INSTRUCTION

RADIO KIT - (See Figure 508)

1шт.

18

REF

INSTRUCTION

MOTOR - windshield wiper (See Figure 506)

1шт.

19

163-18

SCREW,Hex, #10 - 24 x 3/8"

Mach. (Harness to wiper switch)

1шт.

20

86625057

NUT,#10-24, GB

Esna

1шт.

21

F63530

SOCKET/RECEPTACLE

ASSEMBLY - cigar lighter

1шт.

22

F63760

SWITCH

Dome light

1шт.

23

REF

INSTRUCTION

BLOWER ASSEMBLY - (See Figure 490)

1шт.
