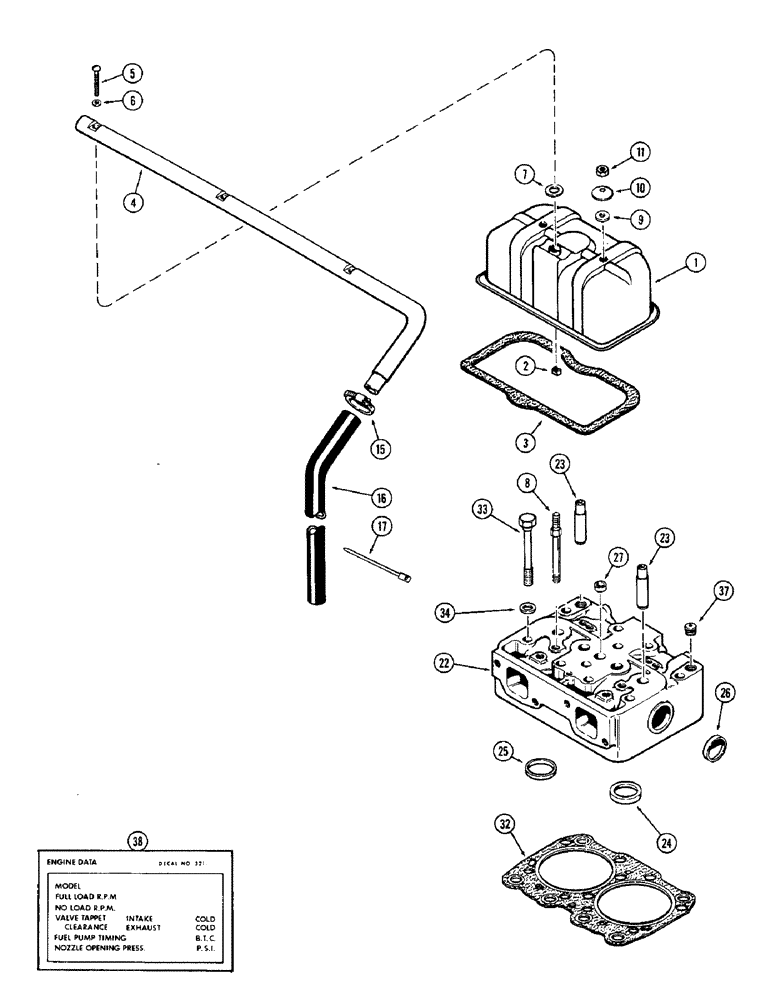

Запчасти Case IH 1370 (030) - CYLINDER HEAD AND COVER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A58929

COVER

COVER ASSEMBLY - cylinder head, Includes: Ref. 2

3шт.

2

131-114

SPRING NUT,Rtnr, 1/4" - 20, 0.25" High

NUT - 1/4" N.C. Tinnerman

1шт.

3

A65734

CYLINDER HEAD GASKET

GASKET - cylinder head cover

9шт.

4

A66640

TUBE

TUBE - breather (Replaces A66131)

1шт.

5

75-440

SCREW

SCREW - 1/4 x 2-1/2" round head machine

3шт.

6

A34133

GASKET

GASKET - breather tube screw

3шт.

7

A58635

GASKET,17.27mm ID x 32mm OD x 6.6mm Thk

GASKET -, Serial Range: tube-cover

3шт.

8

A67121

STUD

STUD - rocker arm bracket and cover (Replaces A60885)

6шт.

9

A23684

GASKET

GASKET - cover stud (15/32 x 7/8 x 1/8")

6шт.

10

A23683

WASHER

WASHER - cover stud, beveled

6шт.

11

25-107

NUT,7/16"-14, G5

NUT - 7/16" N.C. hex.

6шт.

15

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - breather hose (1-3/16 to 1-3/4")

1шт.

16

A66132

HOSE

HOSE - breather

1шт.

17

L18331

CABLE TIE,375.9mm L, Nylon, Black

CABLE STRAP STRAP - breather hose (Replaces L11541)

1шт.

22

A66190

HEAD ASSY.

HEAD ASSEMBLY - cylinder (Casting no. A60559), Includes: Ref. 23 - 27

3шт.

22

AR66194

REMAN-CYLINDER HEAD

Cylinder Head

3шт.

22

AC66194

CORE-CYLINDER HEAD

Return Number

3шт.

22

AR66686

REMAN-CYLINDER HEAD

Remanufactured Cylinder Head

3шт.

22

AC66686

CORE-CYLINDER HEAD

Return Number

3шт.

23

A41783

GUIDE

GUIDES - intake and exhaust valves

4шт.

24

A66192

INSERT

INSERT - exhaust valve

6шт.

25

A66191

INSERT

INSERT - intake valve

6шт.

26

A34124

PLUG,Cup, 1 5/8", Stainless

PLUG - 1-5/8" (41.3 mm) cup

2шт.

27

A58620

PLUG,Cup, 3/4", Stainless

PLUG - 3/4" (19.1 mm) cup

3шт.

32

REF

INSTRUCTION

GASKET - cylinder head (With fire ring) (See Figure 048)

3шт.

33

A76638

BOLT

BOLT - (5/8 x 6" N.C.), Start Serial: 2556252

30шт.

33

A62732

STEP BOLT

BOLT - (5/8 x 5-5/8" N.C.), Start Serial: 2556252

30шт.

34

A58629

BEARING WASHER,16.66mm ID x 25.4mm OD x 3.04mm Thk

WASHER - cylinder head bolt (21/32 x 1 x 3/16")

30шт.

37

221-843

PLUG,Hex Soc, 3/8"-18

PLUG - 3/8" P.T. hex. socket head

5шт.

38

321-2137

DECAL

DECAL - engine data

1шт.
