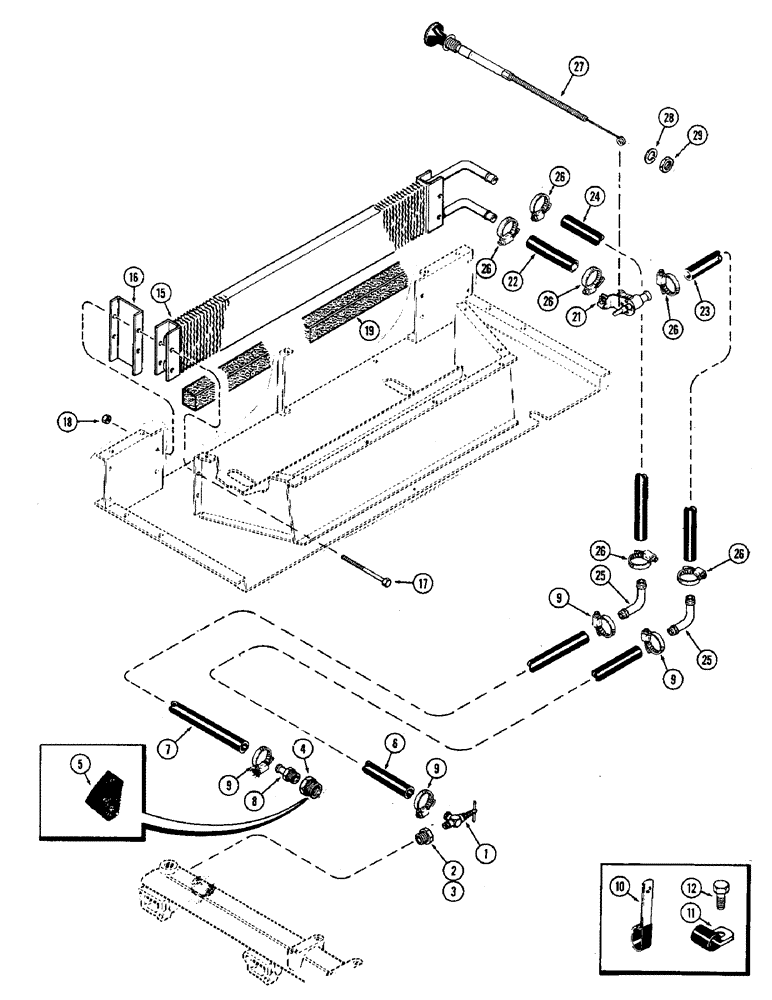

Запчасти Case IH 1370 (492) - CAB, HEATER (09) - CHASSIS/ATTACHMENTS

A66077

ATTACHMENT - heater (Mach. item), Includes: Ref. 1 - 26

1шт.

A60125

HEATER - attaching parts (Mach. item), Includes: Ref. 1 - 12

1шт.

1

A16764

VALVE

- water manifold

1шт.

2

221-1059

BUSHING - reducing, 3/4 x 3/8" (At water manifold)

1шт.

3

221-1056

BUSHING

- reducing (1/2" x 3/8" hex.) (Not applicable)

1шт.

4

221-1060

REDUCER,Hex, 3/4" x 1/2" NPT

BUSHING - reducing (1/2" P.T. x 3/4" P.T.) (Use with A59220 water pump only)

1шт.

5

221-414

FITTING,90 Degree, 1/2"-14, NPT

ELBOW - 90 degree street (At water pump) (Not applicable)

1шт.

6

NSS

NOT SOLD SEPARAT

HOSE - cab to water manifold (41") (Order A42610)

1шт.

7

NSS

NOT SOLD SEPARAT

HOSE - cab to water pump (55") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - heater (5/8" I.D. x 1" O.D. x 50 ft.)

1шт.

8

217-153

FITTING,5/8" Hose Barb x 1/2" Male NPTF

CONNECTOR - hose to water pump (5/8" I.D. x 1/2" P.T.)

1шт.

9

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

4шт.

10

A60824

CLIP

- hose

1шт.

11

R14668

CLAMP

- hose

2шт.

12

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

1шт.

15

F63647

CORE

- heater

1шт.

16

F63748

BRACKET

FILLER - plenum, R.H. and L.H.

2шт.

17

113-45

BOLT,Hex, 1/4" - 20 x 5", Gr 5

- 1/4 x 5" N.C. hex.

4шт.

18

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. Esna

4шт.

19

F63756

FILLING STRIP

FOAM - filler (1-1/2" sq. x 30" lg.)

1шт.

21

F63865

VALVE

- heater

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - heater (6-3/4" lg.) (Order A42610)

1шт.

23

NSS

NOT SOLD SEPARAT

HOSE - heater inlet (Red 69-1/2") (Order A42610)

1шт.

24

NSS

NOT SOLD SEPARAT

HOSE - heater outlet (Black 75-1/2") (Order A42610)

1шт.

A42610

LARGE HOSE

HOSE - heater (5/8" I.D. x 1" O.D., 50 ft.)

1шт.

25

A60823

ELBOW

- hose

2шт.

26

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

CLAMP - hose, 1-3/16" to 1-3/4"

6шт.

27

A42614

CABLE

ASSEMBLY - heater control, Includes: Ref. 28 and 29

1шт.

28

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

29

425-1414

JAM NUT,Jam, 7/8"-9, G5

- jam (3/4" N.C.)

1шт.
