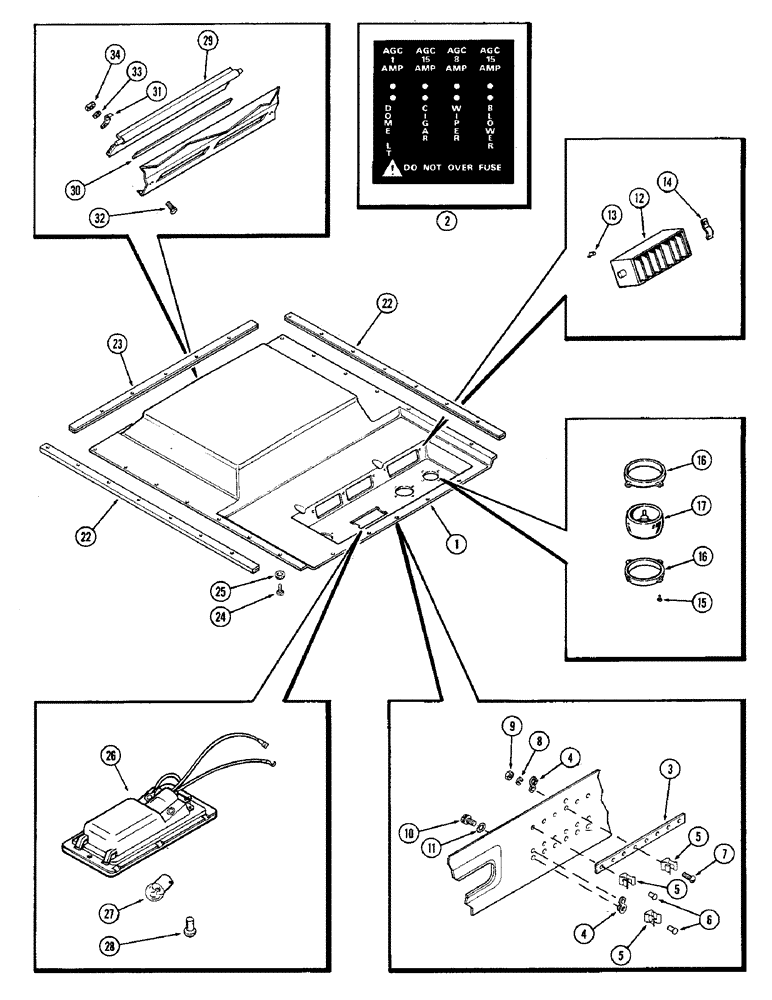

Запчасти Case IH 1370 (486) - CAB, HEADLINER AND LOUVERS, USED PRIOR TO CAB SERIAL NUMBER 7824051 (09) - CHASSIS/ATTACHMENTS

F89842

LINING

HEADLINER ASSEMBLY - cab, Includes: Ref. 1 - 9

1шт.

1

NSS

NOT SOLD SEPARAT

HEADLINER - cab

1шт.

2

321-2129

DECAL

- fuse

1шт.

3

F63512

BAR

BUSS BAR - fuse

1шт.

4

F63513

CLIP

- buss fuse

5шт.

5

F63514

CLIP

- fusetron

8шт.

6

151-511

RIVET,Pop, 1/8" x .337"

- pop (1/8")

7шт.

7

173-218

SCREW,Sl Rnd Hd, #5 - 40 x 1/2"

- mach., #5-40 x 1/2" rd. hd.

1шт.

8

192-14

LOCK WASHER,Helical Spring, #5, 0.13" ID, CST, ZND

Washer, Lock, #5

1шт.

9

129-630

NUT,#5-40, Brass

- #5-40 hex., brass

1шт.

10

163-17

SCREW,Sl Hex Wshr Hd, #6 - 32 x 3/8"

- mach., #6 x 3/8" hex. washer hd., slotted

5шт.

11

193-89

LOCK WASHER,Ext-Int Tooth, #6

WASHER, LOCK, Ext-Int Tooth, #6

4шт.

12

F89673

GUARD

LOUVER - air deflection

2шт.

13

151-511

RIVET,Pop, 1/8" x .337"

- pop (1/8")

4шт.

14

A42575

CLIP

- lower mounting

4шт.

15

187-1085

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - mach., #8-15 x 5/8" rd. hd. Phillips self-tap

12шт.

16

F63776

FRAME

- ball louver

6шт.

17

F63777

BALL

LOUVER - ball

3шт.

22

F63800

MOLDING

TRIM - side, headliner

2шт.

23

F63799

MOLDING

TRIM - rear, headliner

1шт.

24

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - mach., #10-16 x 3/4" Phillips oval hd. self-tap

22шт.

25

F63765

WASHER

- finishing

22шт.

26

A42658

INTERIOR LIGHT

LIGHT ASSEMBLY - dome, Includes: Ref. 27

1шт.

27

A41742

BULB

- dome light (#89)

1шт.

28

151-511

RIVET,Pop, 1/8" x .337"

- pop (1/8")

2шт.

29

F89764

FLAP

VALVE - pressure adjusting

1шт.

30

NSS

NOT SOLD SEPARAT

SEAL - valve (11") (Order A42905)

1шт.

A42905

FOAM

SEAL - valve (50' roll)

1шт.

31

F63810

CLIP

- valve hinge

2шт.

32

163-11

SCREW,Hex, #10 - 24 x 9/16"

- #10 x 9/16" N.C. hex.

2шт.

33

195-511

WASHER,#10

- 13/64 x 15/32 x 3/64"

2шт.

34

86625057

NUT,#10-24, GB

NUT, LOCK, , Esna #10-24, GB

2шт.
