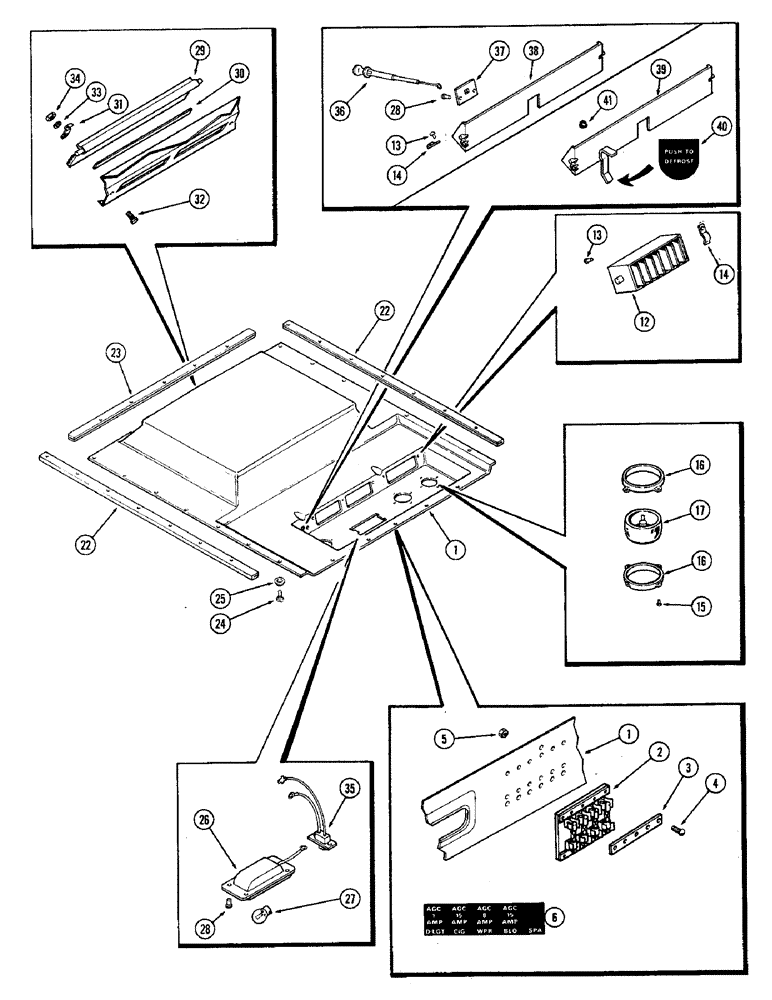

Запчасти Case IH 1370 (484) - CAB, HEADLINER AND LOUVERS, USED CAB SERIAL NUMBER 7824051 TO 7844979 (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
F63899
NO LONGER SERVICED
HEADLINER - cab
1шт.
2
F64047
HOLDER
BLOCK - fuse mounting (See Figure 498)
1шт.
3
F63512
BAR
- buss
1шт.
4
173-251
SCREW,Sl Rnd Hd, #6 - 32 x 3/4", Brass
- #6-32 x 3/4" rd. hd.
5шт.
4
182-533
SCREW,Sl Pan Hd, #6 - 32 x 1/4"
- #6-32 x 1/4" rd. hd.
3шт.
5
129-640
NUT,#6-32, Brass
- #6-32 hex.
10шт.
6
321-2738
DECAL
- fuse block
1шт.
12
F89673
GUARD
LOUVER - air deflection
2шт.
13
151-511
RIVET,Pop, 1/8" x .337"
- pop (1/8")
4шт.
14
A42575
CLIP
- mounting
6шт.
15
187-1085
SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"
SCREW - #8-15 x 5/8" rd. hd. self-tap
12шт.
16
F63776
FRAME
- ball louver
6шт.
17
F63777
BALL
LOUVER - ball
3шт.
22
F63800
MOLDING
TRIM - side, headliner
2шт.
23
F63799
MOLDING
TRIM - rear, headliner
1шт.
24
187-1084
SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"
SCREW - #10-16 x 3/4" oval hd. self-tap
22шт.
25
F63765
WASHER
- finishing
22шт.
26
F63894
LAMP
LIGHT ASSEMBLY - dome, Includes: Ref. 27
1шт.
27
B50217
BULB
- dome light (#93)
1шт.
28
151-511
RIVET,Pop, 1/8" x .337"
- pop (1/8")
10шт.
29
F89764
FLAP
VALVE - pressure adjusting
1шт.
30
NSS
NOT SOLD SEPARAT
SEAL - valve (11") (Order A42905)
1шт.
A42905
FOAM
SEAL - valve (50' roll)
1шт.
31
F63810
CLIP
- valve hinge
2шт.
32
163-11
SCREW,Hex, #10 - 24 x 9/16"
- #10-24 x 9/16" hex.
2шт.
33
195-511
WASHER,#10
- 13/64 x 15/32 x 3/64"
2шт.
34
86625057
NUT,#10-24, GB
NUT, LOCK, , Esna #10-24, GB
2шт.
35
F63760
SWITCH
- dome light
1шт.
36
F63892
LEVER
CONTROL - defroster
1шт.
37
F63902
PLATE
PANEL - defroster door
1шт.
38
F89925
BRACKET
DOOR ASSEMBLY - defroster (Cable controlled)
1шт.
39
F89893
BRACKET
DOOR ASSEMBLY - defroster (Lever operated)
1шт.
40
321-2995
DECAL
- control lever, Serial Range: "Push-Defrost"
1шт.
41
353-409
PLUG,Dome, .812" hole, Nylon
- cable hole (1/2" dia.)
1шт.
Выбрано товаров: 34
