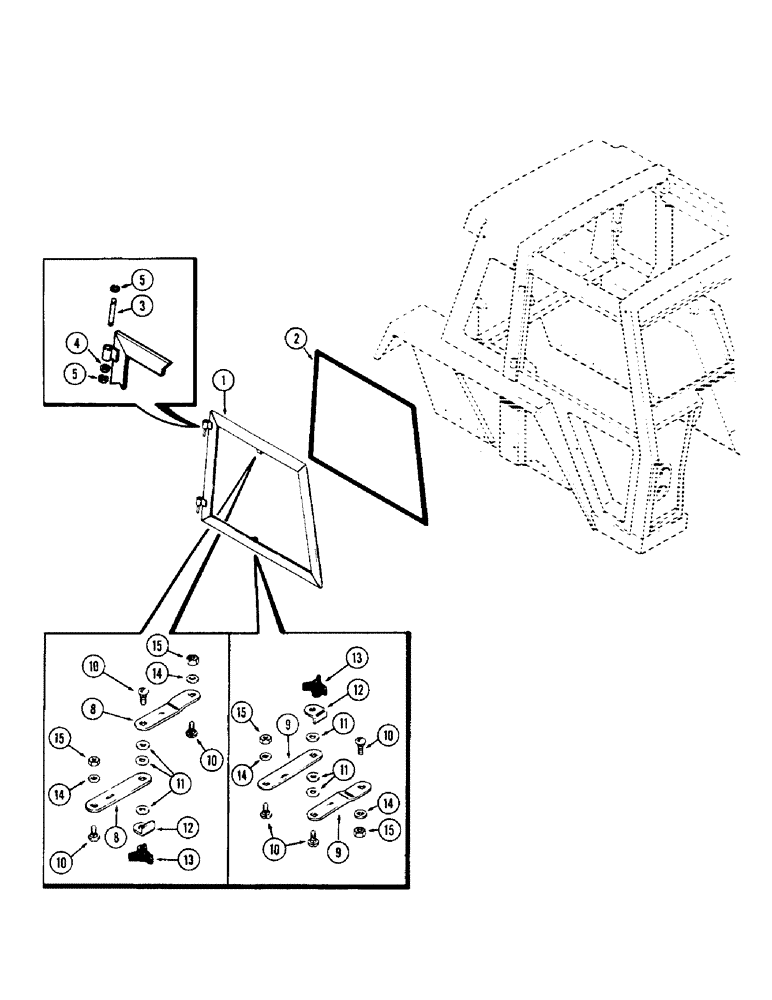

Запчасти Case IH 1370 (468) - CAB, RIGHT HAND SIDE WINDOW (09) - CHASSIS/ATTACHMENTS

F98125

FRAME

WINDOW ASSEMBLY - right hand side (Replaces F89391) (Includes glass and molding) Order glass from Figure 470., Includes: Ref. 1 - 5

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - window

1шт.

2

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - frame (134-5/8" long) (Order A42504)

1шт.

3

F63729

PIN

- hinge

2шт.

4

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- 3/8 x 3/4 x 1/32"

2шт.

5

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.

A42504X

FILLING STRIP

WEATHERSTRIP - (50 foot roll) (Cut to length required)

1шт.

8

A42926

ARM

ASSEMBLY - window, upper, Includes: Ref. 10 - 13

1шт.

9

A42927

ARM

ASSEMBLY - window, lower, Includes: Ref. 10 - 13

1шт.

10

A42923

CARRIAGE BOLT

BOLT - 5/16 x 7/8" N.C. carriage head

3шт.

11

F63299

WASHER

- friction, 5/16 x 1 x 1/16"

3шт.

12

F63665

CLIP

- limit stop

1шт.

13

F63415

KNOB

- lock, control arms

1шт.

14

195-521

WASHER,5/16", SAE

- 5/16 x 11/16 x 1/16"

4шт.

15

131-176

LOCK NUT,Prev Torque, Hex, 5/16" - 18, Gr A

NUT - arm ends 5/16" N.C. hex.

4шт.
