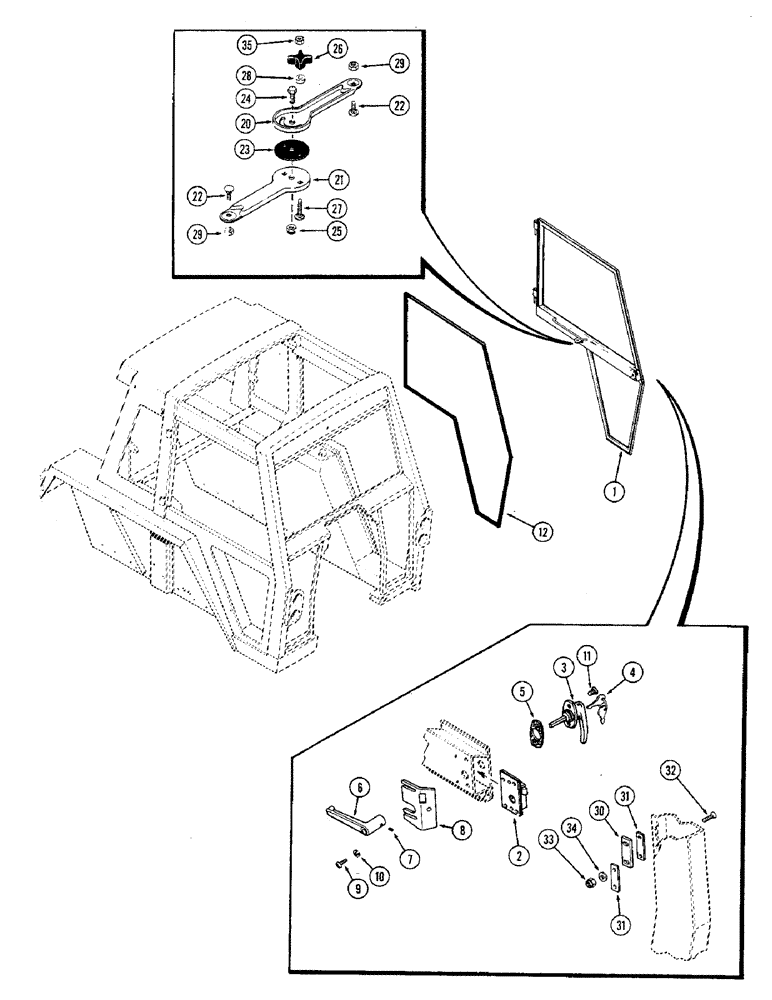

Запчасти Case IH 1370 (462) - CAB, DOOR ASSEMBLY, USED PRIOR TO CAB SERIAL NUMBER 7824051 (09) - CHASSIS/ATTACHMENTS

1

F89853

DOOR

ASSEMBLY - cab (Includes glass and molding) Order glass from Figure 470., Includes: Ref. 2 - 12

1шт.

2

F89708

LATCH

LOCK - door (Order F98123)

1шт.

3

A42572

HANDLE

ASSEMBLY - locking (Order F64122), Includes: Ref. 4

1шт.

4

A42653

SET OF 2 KEYS

KEY - door lock

2шт.

5

A42913

GASKET

- outside handle

1шт.

6

F63925

HANDLE

ASSEMBLY - inside (Replaces A42588), Includes: Ref. 7

1шт.

7

176-49

SCREW - set (5/16 x 5/16" N.C. slotted cup pt.)

1шт.

8

F63401

COVER

- door latch

1шт.

9

182-528

SCREW,Sl Pan Hd, #10 - 32 x 1/2"

- mach., #10-32 x 1/2" Phillips hd.

4шт.

10

192-18

LOCK WASHER,Helical Spring, #10, 0.196" ID, CST, ZND

WASHER, LOCK, #10

4шт.

11

179-154

SCREW,Cross Oval Hd, #10 - 24 x 5/8"

- mach., #10-24 x 5/8" oval hd. Phillips

2шт.

12

NSS

NOT SOLD SEPARAT

WEATHERSTRIP - door (180-1/2") (Order A42504)

1шт.

A42504X

FILLING STRIP

WEATHERSTRIP - (40 ft. roll)

1шт.

20

F63414

ARM

- upper, door holder (Desert)

1шт.

21

F63413

ARM

- lower, door holder (Desert)

1шт.

22

111-302

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G2

BOLT - 3/8 x 3/4" N.C. rd. hd. sq. neck

2шт.

23

F63405

DISC

- friction, door arm

1шт.

24

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

25

231-1445

NUT,5/16"-18, GB

NUT - lock, 5/16" N.C. (Esna)

1шт.

26

F63415

KNOB

- door arm

1шт.

27

111-207

CARRIAGE BOLT,Short NK, 5/16"-18 x 2", G2

BOLT - 5/16 x 2" N.C. rd. hd. sq. neck

1шт.

28

D43608

SPACER

- arm

1шт.

29

131-178

LOCK NUT,Prev Torque, Hex, 3/8" - 16, Gr A

NUT - lock, 3/8" N.C. (Crownlock)

2шт.

30

F63783

CATCH

- door

1шт.

31

F63784

SHIM

- door catch (.010")

1шт.

31

F63785

SHIM

- door catch (.078")

1шт.

31

F63786

SHIM

- door catch (.015")

1шт.

32

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- 1/4 x 1" N.C. Phillips flat hd.

2шт.

33

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. (Esna)

2шт.

34

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

2шт.

35

131-1117

LOCK NUT,5/16"-18, GA

NUT - lock, 5/16" N.C. (Crownlock)

1шт.
