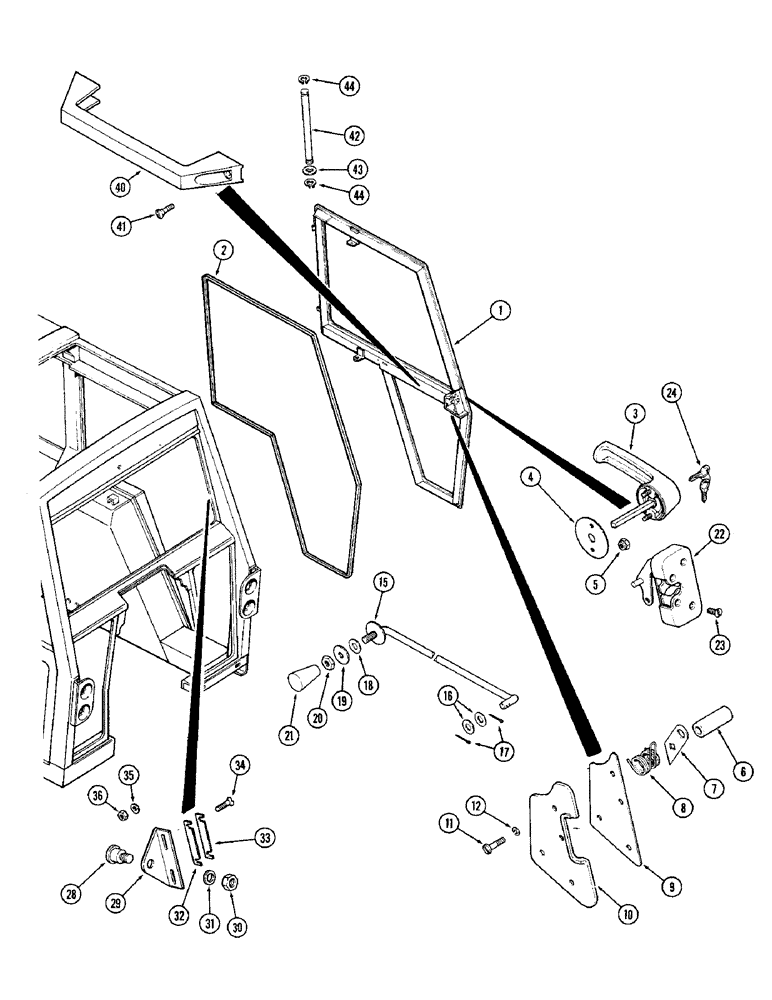

Запчасти Case IH 1370 (458) - CAB, DOOR, ROTARY LATCH TYPE (09) - CHASSIS/ATTACHMENTS

F98229

DOOR

ASSEMBLY - (Including glass and molding) Order glass from Figure 470. See Figure 460 for door holder., Includes: Ref. 1 - 44

1шт.

1

NSS

NOT SOLD SEPARAT

DOOR

1шт.

2

F64267

DOOR SEAL

STRIP - weather, door frame (181" long)

1шт.

3

F64346

HANDLE

- outer

1шт.

4

F64342

GASKET,1.6mm Thk

- handle

1шт.

5

86625057

NUT,#10-24, GB

NUT, LOCK, , Outer handle #10-24, GB

2шт.

6

F64358

SPACER

- latch shaft (7/16 x 3/4 x 2")

1шт.

7

F64371

ARM

- latch

1шт.

8

F64338

SPRING

- latch handle

1шт.

9

F98227

COVER

- latch (Inside door) (With handle guide)

1шт.

10

F64357

COVER

- latch (Inside)

1шт.

11

182-547

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

- inside cover (1/4-20 x 1/2" special)

4шт.

12

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - 1/4" lock

4шт.

15

F98226

ROD

- latch pull

1шт.

16

F64384

WASHER

- 1/4 x 9/16 x 1/32"

2шт.

17

132-5

COTTER PIN,1/16" x 1/2"

Pin, Split (Cotter), , Internal hair 1/16" x 1/2"

2шт.

18

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust (3/8 x 3/4 x 1/32")

1шт.

19

F64340

WASHER

- shoulder

1шт.

20

131-1280

JAM NUT,Jam, 1/4"-20

NUT - knob lock

1шт.

21

F64341

KNOB

- latch rod (Inside door opener)

1шт.

22

F64296

LATCH

- rotary

1шт.

23

182-555

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

- latch (1/4-20 x 1/4")

4шт.

24

A77313

SET OF 2 KEYS

KEY - door lock (Set of 2)

1шт.

28

F64345

HARDWARE

STRIKER - door latch

1шт.

29

F64301

BRACKET

- striker mounting

1шт.

30

231-1447

NUT,7/16"-14, GB

NUT, LOCK, 7/16"-14, GB

1шт.

31

195-529

WASHER,7/16", SAE

- 7/16 x 15/16 x 1/16"

1шт.

32

F63786

SHIM

- striker bracket (.078")

2шт.

33

F63786

SHIM

- striker bracket (.046")

2шт.

34

171-248

SCREW,Cross Flat Hd, 1/4" - 20 x 1"

- bracket (1/4 x 1" N.C. special)

2шт.

35

195-518

WASHER,1/4", SAE

- 1/4 x 5/8 x 1/16"

2шт.

36

86625061

NUT,1/4"-20, GB

NUT - 1/4" N.C. special

2шт.

40

F64344

HANDLE

- door closure (Inside cab)

1шт.

41

179-157

SCREW,Cross Oval Hd, 1/4" - 20 x 3/4"

- handle (1/4-20 x 3/4")

2шт.

42

F63729

PIN

- door hinge

2шт.

43

F64046

WASHER,9.91mm ID x 19.05mm OD x 0.76mm Thk

- thrust, hinge pin (3/8 x 3/4 x 1/32")

2шт.

44

A42589

SNAP RING,#37, Ext

Ring, Snap, , hinge pin #37, Ext

4шт.
