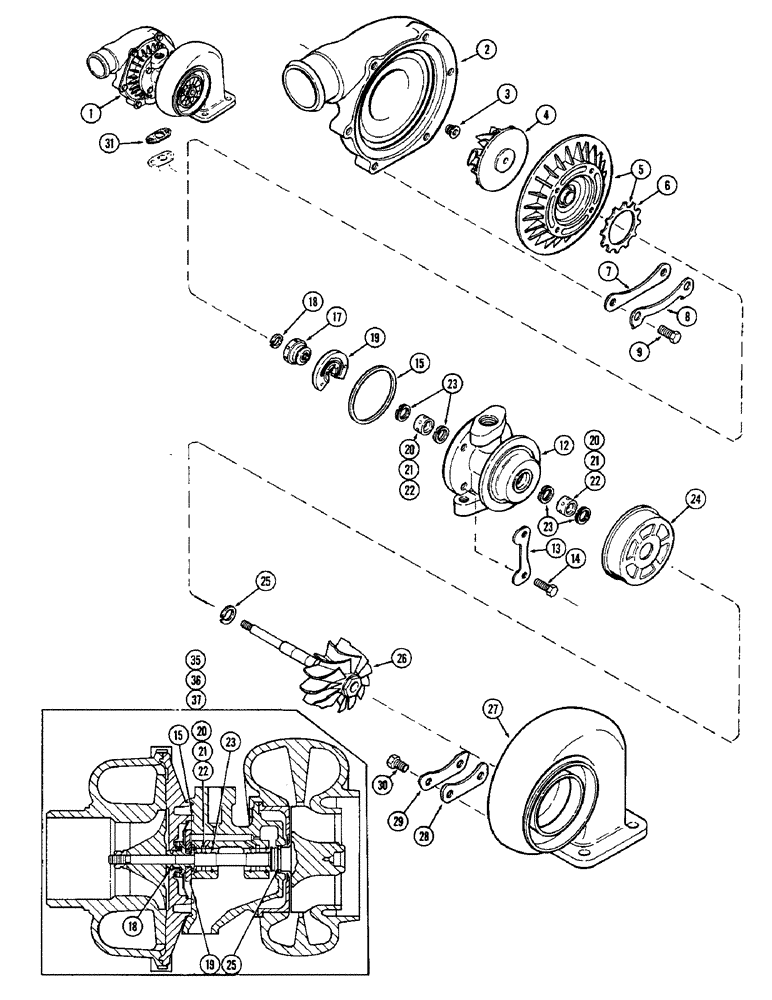

Запчасти Case IH 1370 (026) - TURBOCHARGER PARTS, (504BDT) DIESEL ENGINE (02) - ENGINE

A157336

TURBOCHARGER

TURBOCHARGER

1шт.

A48192

REMAN-TURBOCHARGER

1370 S/N 8727601 & AFTER, N.A. Only

1шт.

A48191

CORE-TURBOCHARGER

Return Part Number

1шт.

1

A44499

TURBOCHARGER

TURBOCHARGER - rebuilt, Includes: Ref. 2 - 30

1шт.

1

A48192

REMAN-TURBOCHARGER

Remanufactured Turbocharger

1шт.

1

A44498

CORE-TURBOCHARGER

Turbocharger, Return Part Number, Part no. A44498 used only to return original equipment turbo for credit on rebuilt turbo.

1шт.

2

A44837

HOUSING

HOUSING - compressor wheel

1шт.

3

A45090

NUT

NUT - lock, compressor wheel (Replaces A44831)

1шт.

4

A45016

IMPELLER

WHEEL - compressor (Replaces A44835)

1шт.

5

A45095

PLATE

PLATE ASSEMBLY - back, compressor (Replaces A44836), Includes: Ref. 6

1шт.

6

NSS

NOT SOLD SEPARAT

SPRING - thrust

1шт.

7

A44838

CLAMP

CLAMP - turbine housing

3шт.

8

A44839

PLATE

PLATE - lock, turbine housing bolt

3шт.

9

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

12

A44825

HOUSING

HOUSING - center

1шт.

13

A44820

PLATE

PLATE - lock, center housing bolt

2шт.

14

113-2

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

BOLT, Hex, 1/4"-20 x 5/8", G5, Full Thd

4шт.

15

A44833

RING

RING - seal, center housing

1шт.

17

A44830

COLLAR

COLLAR - thrust

1шт.

18

A44828

RING

RING - piston (1/2" O.D.)

1шт.

19

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

20

A44826

BEARING

BEARING - center (Std.) (Order Ref. 35)

2шт.

21

A44849

BUSHING

BEARING - center (.005" undersize) (Order Ref. 36)

2шт.

22

A44850

BUSHING

BEARING - center (.010" undersize) (Order Ref. 37)

2шт.

23

A44827

RING

RING - snap, bearing retaining

4шт.

24

A45091

GUARD

SHROUD - wheel (Replaces A44834)

1шт.

25

A44829

RING

RING - piston (23/32" O.D.)

1шт.

26

A44841

WHEEL

WHEEL ASSEMBLY - turbine

1шт.

27

A44840

HOUSING

HOUSING - turbine

1шт.

28

A44823

CLAMP

CLAMP -, Serial Range: backplate-housing

3шт.

29

A44824

PLATE

PLATE - lock, clamp bolt

3шт.

30

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

BOLT, Hex, 5/16"-18 x 1/2", G5, Full Thd

6шт.

31

A58892

GASKET,1.59mm Thk

GASKET - oil drain tube

1шт.

35

A45344

KIT

KIT - repair, center bearing (Std.) (Includes Ref. 15, 18, 19, 20, 23, 25 and 31)

1шт.

36

A45345

KIT

KIT - repair, center bearing (.005 undersize) (Includes Ref. 15, 18, 19, 21, 25 and 31)

1шт.

37

A45346

KIT

KIT - repair, center bearing (.010" undersize) (Includes Ref. 15, 18, 19, 22, 23, 25 and 31)

1шт.
