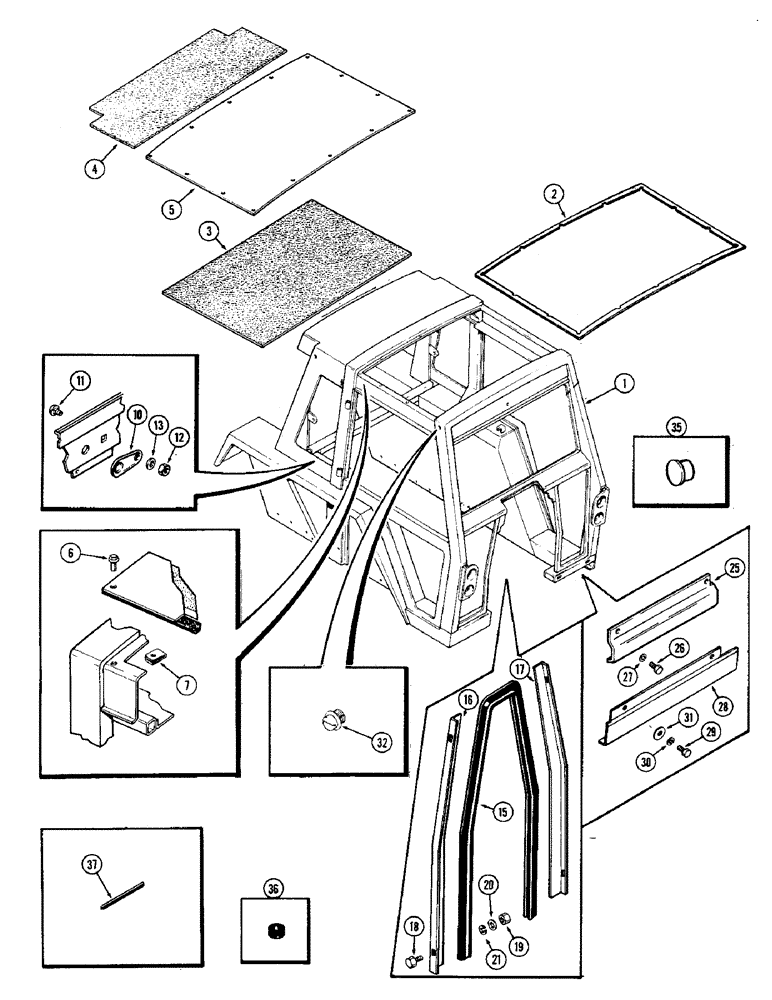

Запчасти Case IH 1370 (452) - CAB, SHEET METAL (09) - CHASSIS/ATTACHMENTS

1

NSS

NOT SOLD SEPARAT

FRAME ASSY - cab (See Figure 450)

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL - (Order A42676)

1шт.

A42676

SEAL

- (1/4 x 3/8 x 25 ft.)

1шт.

3

F64430

FOAM

- roof temperature barrier (Replaces F63722)

1шт.

4

F63812

BAR

FOAM - rear, temperature barrier

1шт.

5

F63644

PANEL

ROOF - (White) (1st used cab ser. no. 7824051)

1шт.

5

F63721

PANEL

ROOF - (Desert) to cab, Serial Range: -7824051

1шт.

6

163-16

SCREW,Hex Wshr Hd, 1/4" - 20 x 3/4"

- 1/4 x 3/4" N.C. hex. washer hd.

18шт.

7

131-617

NUT,Ret, J, 1/4"-20

- 1/4" N.C. Tinnerman

18шт.

10

F12598

PLATE

COVER - utility opening

1шт.

11

412-410

CARRIAGE BOLT,Short Sq Nk 1/4" - 20 x 5/8", Gr 2

BOLT - 1/4 x 3/4" N.C. rd. hd. sq. nk.

1шт.

12

86625061

NUT,1/4"-20, GB

NUT - lock, 1/4" N.C. hex.

1шт.

13

195-102

WASHER,1/4"

- 5/16 x 3/4 x 1/16"

1шт.

15

A62885

SEAL

- dust (90" long) Attach with adhesive 345-22.

1шт.

16

A64130

GUARD

FILLER - R.H., dust shield

1шт.

17

A64131

GUARD

FILLER - L.H., dust shield

1шт.

18

113-30

BOLT - 1/4 x 5/8" N.C. hex.

6шт.

19

129-517

NUT - 1/4" N.C. hex.

6шт.

20

195-515

WASHER,#12

- 1/4 x 1/2 x 1/16"

6шт.

21

192-44

LOCK WASHER

- lock, 1/4"

6шт.

25

F98141

COVER

PANEL - battery access (1st used cab ser. no. 7882601)

1шт.

26

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

27

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

28

F89393

PANEL - battery access (White) cab, Serial Range: 7824051-7882601

1шт.

28

F89690

BRACKET

PANEL - battery access (Desert) to cab, Serial Range: -7824051

1шт.

29

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

30

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

31

195-521

WASHER,5/16", SAE

- (11/32 x 11/16 x 5/64")

2шт.

32

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lift hole Slotted, 1/2"-13

4шт.

35

353-408

PLUG,Dome, .750" hole, Nylon

- inside front part w/o AC (3/4" hole)

2шт.

36

353-700

BUSHING

- L.H. fender wire hole (17/64" dia.)

1шт.

37

NSS

NOT SOLD SEPARAT

MOLDING - under hoses (6" long) (Order F13009) Attach with adhesive 345-22.

1шт.

F13009

GASKET

MOLDING - U-type (24-1/2" long)

1шт.
