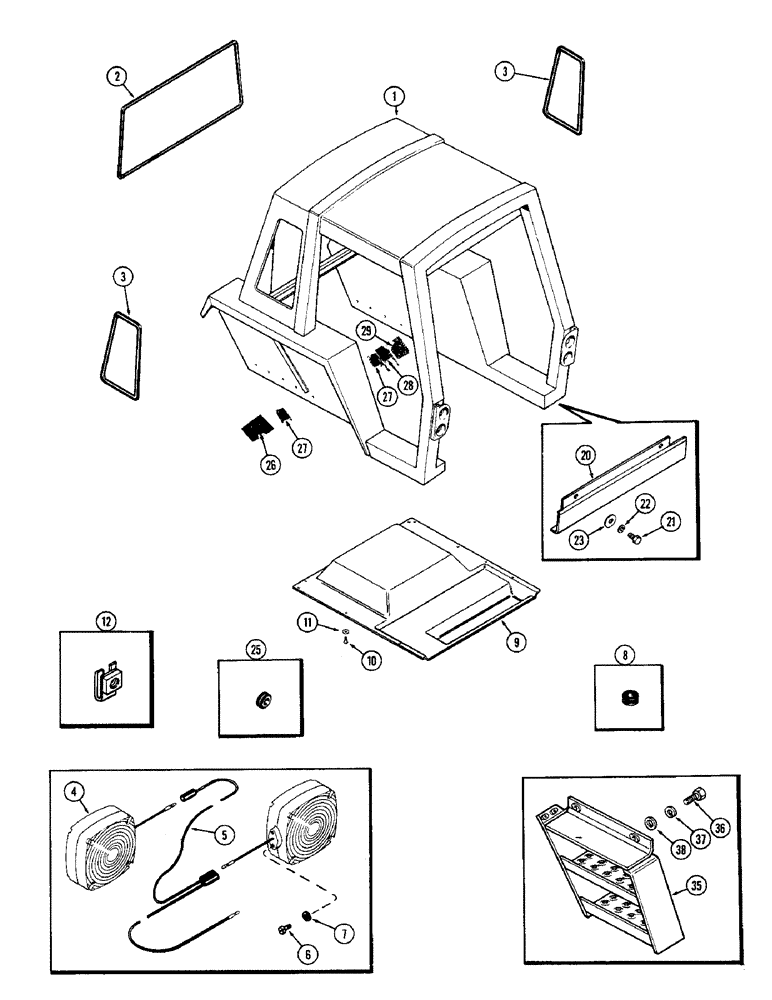

Запчасти Case IH 1370 (448) - FOUR POST PROTECTIVE FRAME, USED PRIOR TO FRAME SERIAL NUMBER 7901726 (09) - CHASSIS/ATTACHMENTS

F89877

ENCLOSURE - protective (Desert), Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - enclosure (Order F89877)

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear opening (Order F63578)

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - side opening (Order F63578)

2шт.

4

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - flasher (Order from Figure 118)

2шт.

5

F63368

ELECTRICAL WIRE

CABLE - flasher

1шт.

6

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - 2/4 x 1/2" N.C. flat hd.

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

253-700

BUSHING - wire (17/64" I.D.) (Replaces D31076)

2шт.

9

F63791

LINING

HEADLINER

1шт.

10

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - self-tapping, #10-16 x 3/4" oval head

19шт.

11

F63765

WASHER

- finishing (#10)

19шт.

12

214-1104

CLAMP

CLIP - Tinnerman

2шт.

20

F89690

BRACKET

PANEL - battery access

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- 5/16 x 2" N.C. hex.

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

2шт.

F63578

GASKET

TRIM - window (50 ft. roll)

1шт.

25

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- wire, front column (1/4" I.D.)

2шт.

26

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex. (L.H. side)

2шт.

26

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex.

18шт.

26

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex. (Hat section)

2шт.

27

195-525

WASHER,3/8", SAE

- 11/16 x 13/16 x 5/64"

42шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

35

F89730

STEP

S - L.H. side

1шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Steps Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Steps 3/8"

4шт.

38

195-256

WASHER - 7/16 x 7/8 x 5/16", steps

4шт.
