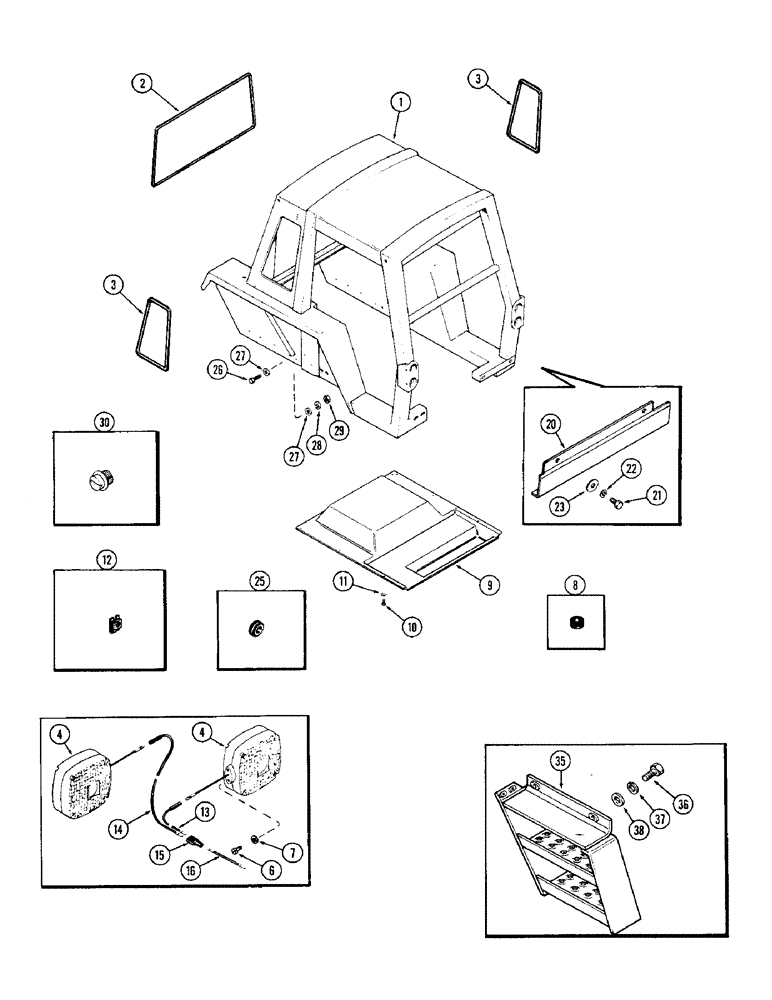

Запчасти Case IH 1370 (446) - FOUR POST PROTECTIVE FRAME, USED FRAME SERIAL NUMBER 7901726 TO 7956225 (09) - CHASSIS/ATTACHMENTS

F89384

ENCLOSURE - protective (White) (Order F98170 Figure 444), Includes: Ref. 1 - 23

1шт.

1

NSS

NOT SOLD SEPARAT

FRAME - welded (Order F98170)

1шт.

2

NSS

NOT SOLD SEPARAT

TRIM - rear opening (Order F63578)

1шт.

3

NSS

NOT SOLD SEPARAT

TRIM - side opening (Order F63578)

2шт.

4

NSS

NOT SOLD SEPARAT

LAMP ASSEMBLY - flasher (order from Figure118)

2шт.

6

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

SCREW - 1/4 x 1/2" N.C. flat hd.

4шт.

7

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

8

353-700

BUSHING

- wire (17/65" I.D.) (Replaces A31076)

2шт.

9

F63791

LINING

HEADLINER

1шт.

10

187-1084

SELF-TAP SCREW,Cross Oval Hd, #10 x 3/4"

SCREW - #10-32 x 3/4" Phillips hd. self-tap

19шт.

11

F63765

WASHER

- finishing (#10)

19шт.

12

214-1104

CLAMP

CLIP - wire M

2шт.

13

F63584

CABLE

- R.H. flasher light

1шт.

14

F63585

CABLE

- L.H. flasher light

1шт.

15

A8210

CONNECTOR, ELEC

CONNECTOR - 3 wire, Serial Range: -8753831

1шт.

16

A66779

ELECTRICAL WIRE

WIRE - light (3" tan), Serial Range: -8753831

1шт.

20

F89393

PANEL - battery access (White)

1шт.

21

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

22

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

2шт.

23

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 5/64"

2шт.

F63578

GASKET

TRIM - window opening (50' roll)

1шт.

25

A61145

GROMMET,1/4" ID x 3/4" Groove Dia, Str Cut

- wire (1/4" I.D.) (In front column)

2шт.

26

113-286

BOLT,Hex, 3/8" - 16 x 3/4", Gr 8, Full Thd

- 3/8 x 3/4" N.C. hex. (L.H. side)

2шт.

26

113-268

BOLT,Hex, 3/8" - 16 x 1", Gr 8, Full Thd

- 3/8 x 1" N.C. hex. (Cab sides)

18шт.

26

113-287

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 8

- 3/8 x 1-3/4" N.C. hex. (Hat section)

2шт.

27

195-525

WASHER,3/8", SAE

- 13/32 x 13/16 x 5/64"

42шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

22шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

20шт.

30

353-550

PLUG,Slotted, 1/2"-13

Plastic, Lifting holes Slotted, 1/2"-13

4шт.

35

F89730

STEP

S - L.H. side

1шт.

36

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Steps Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

37

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Steps 3/8"

4шт.

38

195-526

WASHER,7/16" x 7/8" x .083"

- 7/16 x 7/8 x 5/64", steps

4шт.
