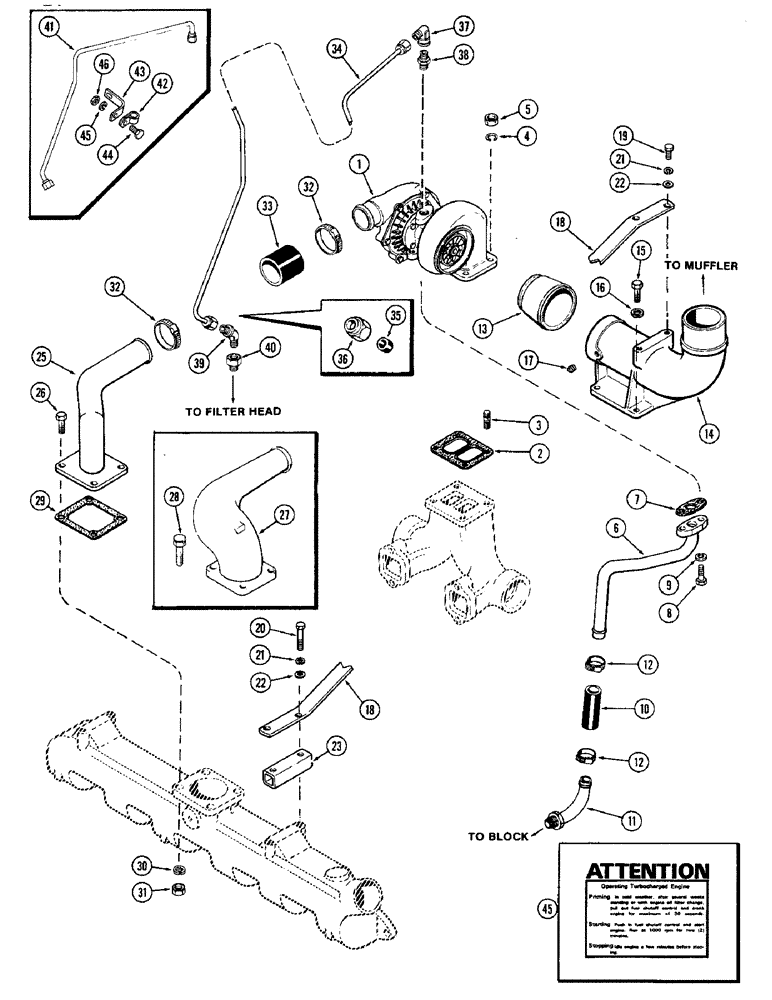

Запчасти Case IH 1370 (024) - TURBOCHARGER SYSTEM, (504BDT) DIESEL ENGINE (02) - ENGINE

1

REF

INSTRUCTION

TURBOCHARGER - (See Figure 026)

1шт.

2

A58899

GASKET,0.45mm Thk

, Serial Range: Turbo-charger-manifold

1шт.

3

G102128

BOLT

(3/8" N.C. x 1-1/2") (Replaces G11204)

4шт.

4

92-6

LOCK WASHER,3/8"

4шт.

5

131-903

NUT,3/8"-16

Seezpruf

4шт.

6

A62518

TUBE

Oil drain

1шт.

7

A58892

GASKET,1.59mm Thk

Oil drain tube

1шт.

8

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

9

92-6

LOCK WASHER,3/8"

2шт.

10

A58893

HOSE

, Serial Range: Drain-fitting

1шт.

11

A58897

FITTING

Drain

1шт.

12

214-256

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

(1-3/16 to 1-3/4")

2шт.

13

A65554

TUBE

CONNECTOR - exhaust elbow

1шт.

There is No Sealing Rings Between This Connector, \nTurbo Carger or Elbow. There is a Raised Lip on Each Side \nof The Connector That Allows a .0025" Clearance Between The \nTurbo Chatger and Elbow Which will Close and Seal When The \nEngine Heats and Exhaust System Carbons up.

1шт.

14

A61265

ELBOW

Exhaust, turbo-charger

1шт.

15

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

4шт.

16

92-6

LOCK WASHER,3/8"

4шт.

17

221-12

PLUG,Sq Hd, 1/4"-18

Pipe

1шт.

18

A61944

BRACE

, Serial Range: Elbow-manifold

1шт.

19

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Brace to elbow

2шт.

20

13-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

Brace to intake manifold

2шт.

21

92-6

LOCK WASHER,3/8"

4шт.

22

95-6

WASHER,3/8"

(7/16 x 1 x 5/64")

4шт.

23

A67057

SPACER

Brace (Tube type) (Replaces A61945)

1шт.

25

A150450

ELBOW

Air intake, formed (1st used eng. S/N 2579516) (Replaces A77242)

1шт.

26

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

27

A58903

ELBOW UNION

Union Elbow Air intake, cast, eng., Serial Range: -2579516

1шт.

28

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

29

A58910

GASKET

Air intake elbow

1шт.

30

25-106

NUT,3/8"-16, G5

4шт.

31

91-6

WASHER - lock (3/8")

4шт.

32

214-260

HOSE CLAMP,#36, 1.81" - 2.75", Type F Worm

2шт.

33

A150449

INTAKE AIR HOSE,2.00" ID x 2.88"

Elbow (Replaces A58894)

1шт.

34

A153800

TUBE

ASSEMBLY - oil supply, turbocharger (1st used eng. S/N 10175026), Includes Ref. 35 and 36

1шт.

35

222-154

SLEEVE,3/8" Tube

3/8" tube

1шт.

36

222-114

NUT,5/8"-24

2шт.

37

217-19

ELBOW,90 Degree, 1/4"-18 NPTF, Fem x 1/4"-18 NPTF Male

Street

1шт.

38

222-4027

HYD CONNECTOR,5/8"-24 x 1/4" NPTF

(3/8" tube)

1шт.

39

222-4095

ELBOW,45 Degree, 5/8"-24 x 1/4" NPT

(3/8" tube)

1шт.

40

221-86

REDUCER,Hex, 3/8" x 1/4" NPT

Pipe bushing

1шт.

41

A75303

TUBE

SPARE PART ASSEMBLY - oil supply, turbo-charger, eng., Serial Range: -10175026

1шт.

Part is NLS, Use Tube A166064 and Elbow 217-19.

1шт.

42

49845

CLAMP

CLIP - oil supply tube

1шт.

43

A75301

BRACKET

Tube clip (Held by intake man. studs) (Used with A75303)

1шт.

44

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Clip to bracket (Used with A75303)

1шт.

45

92-6

LOCK WASHER,3/8"

(Used with A75303)

1шт.

46

25-106

NUT,3/8"-16, G5

(Used with A75303)

1шт.
