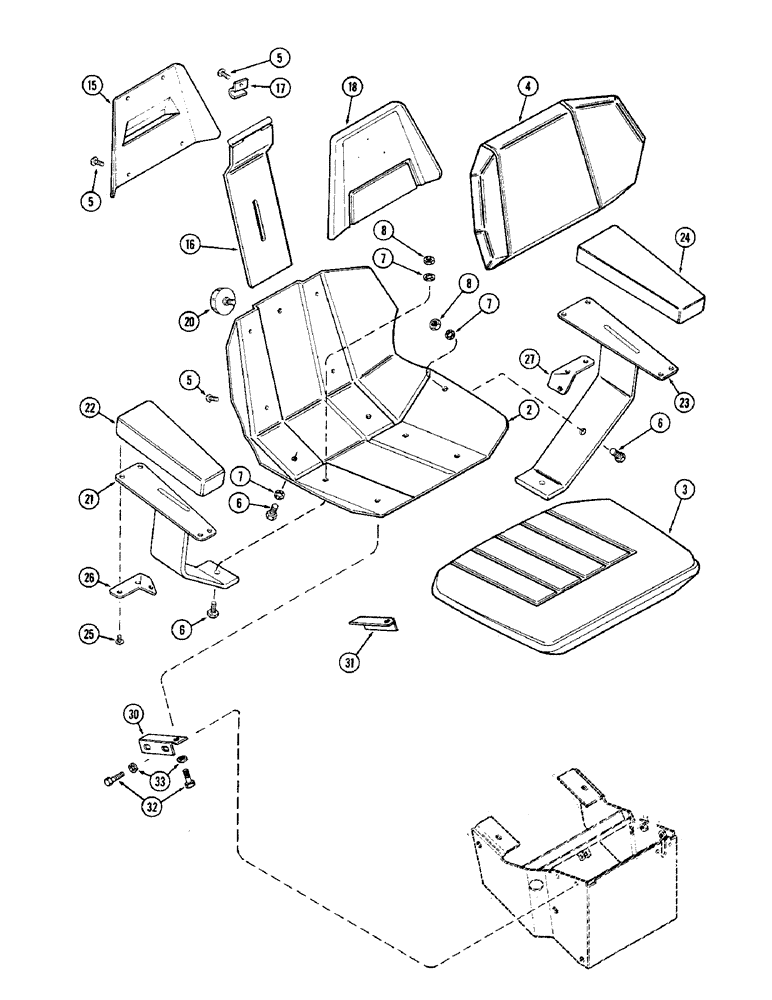

Запчасти Case IH 1370 (432) - AGRI-KING SEAT, VINYL WITHOUT CAB, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS

A64492

SEAT

ASSEMBLY - complete w/arms and backrest (Order A66641), Includes: Ref. 2 - 27

1шт.

A66654

SEAT

ASSEMBLY - w/o arms and backrest, Includes: Ref. 2 - 8 (Replaces A64833)

1шт.

2

A60461

FRAME

ASSEMBLY - seat

1шт.

3

A60462

CUSHION

ASSEMBLY - seat bottom w/pan

1шт.

4

A64823

CUSHION

ASSEMBLY - lower backrest and pan

1шт.

5

182-526

SCREW,Cross Pan Hd, #10 - 24 x 3/8"

- #10-24 x 3/8" pan hd. Phillips

12шт.

6

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

8шт.

7

193-68

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

8шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

4шт.

15

A60478

FRAME

- upper backrest

1шт.

16

A64825

PLATE

SPRING ASSEMBLY - backrest, Includes: Ref. 17

1шт.

17

A60479

CLIP

- upper backrest pivot

1шт.

18

A60472

CUSHION

- upper backrest

1шт.

20

A60468

KNOB

ASSEMBLY - adjusting, backrest

1шт.

21

A61092

SUPPORT

- R.H. armrest (Order A66643)

1шт.

22

A61098

CUSHION

- R.H. armrest

1шт.

23

A61093

SUPPORT

- L.H. armrest

1шт.

24

A61099

CUSHION

SUPPORT - L.H. armrest

1шт.

25

187-1081

SELF-TAP SCREW,Pan, 0.19"-16 x 1/2"

SCREW - #10 x 1/2" Phillips pan hd. type A

8шт.

26

A64828

BRACKET

SUPPORT - R.H., Serial Range: armrest-backrest

1шт.

27

A64829

BRACKET

SUPPORT - L.H. armrest to backrest (Order A66646)

1шт.

30

A65140

BRACKET

- seat support, R.H. (Order A66650)

1шт.

31

A65141

BRACKET

- seat support, L.H. (Order 66651)

1шт.

32

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

4шт.

33

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.
