(428) - SERIES 30 SEAT, USED PRIOR TO P.I.N. 8736001

Запчасти Case IH 1370 (428) - SERIES 30 SEAT, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS

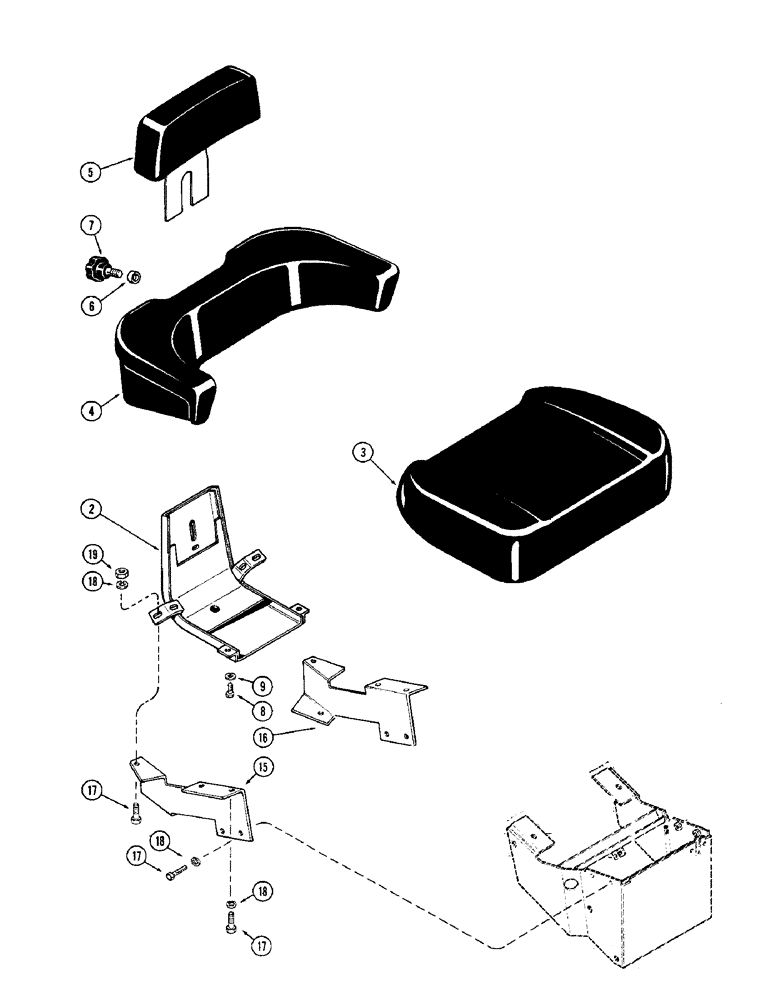

Схема запчастей Case IH 1370 - (428) - SERIES 30 SEAT, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS
16
19
17
8
9
3
17
4
15
6
18
18
18
2
7
5
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

A65092

SEAT

ASSEMBLY - Series 30 (Order A66655), Includes: Ref. 2 - 9

1шт.

2

A57405

SUPPORT

- seat frame

1шт.

3

A44793

CUSHION

- seat (Replaces A65093)

1шт.

4

A44791

BACKREST

- seat, lower (Replaces A42497)

1шт.

5

A44790

BACKREST

- seat, upper (Replaces A34283)

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

15

A66657

BRACKET

- seat support, R.H. (Replaces A65094)

1шт.

16

A66656

BRACKET

- seat support, L.H. (Replaces A65095)

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.
