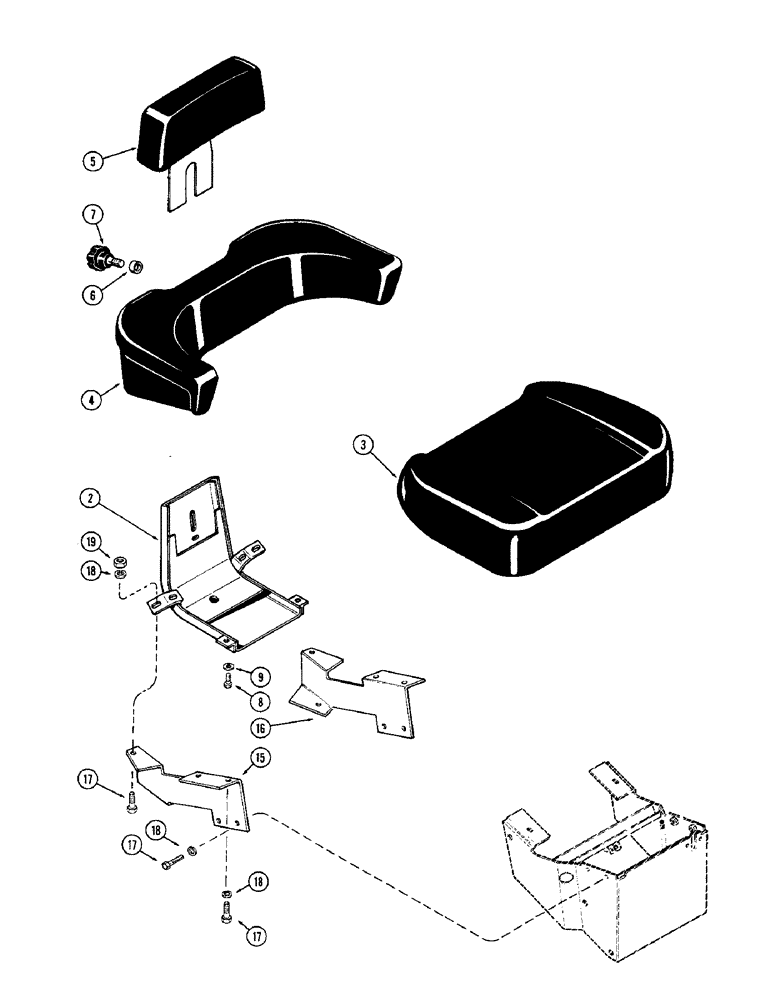

Запчасти Case IH 1370 (426) - SERIES 30 SEAT, USED P.I.N. 8736001 TO 8797501 (09) - CHASSIS/ATTACHMENTS

A66655

SEAT

ASSEMBLY - Series 30, Includes: Ref. 2 - 9

1шт.

2

A44792

SUPPORT

- seat frame

1шт.

3

A44793

CUSHION

- seat

1шт.

4

A44791

BACKREST

- seat, lower

1шт.

5

A44790

BACKREST

- seat, upper

1шт.

6

A40600

SPACER

- backrest adjusting

1шт.

7

A40972

KNOB

- backrest adjusting

1шт.

8

113-118

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

4шт.

9

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

4шт.

15

A66657

BRACKET

- seat support, R.H.

1шт.

16

A66656

BRACKET

- seat support, L.H.

1шт.

17

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

12шт.

18

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

12шт.

19

9635082

NUT,5/16" - 18, Gr 5

2шт.
