Запчасти Case IH 1370 (424) - SEAT SUSPENSION, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS

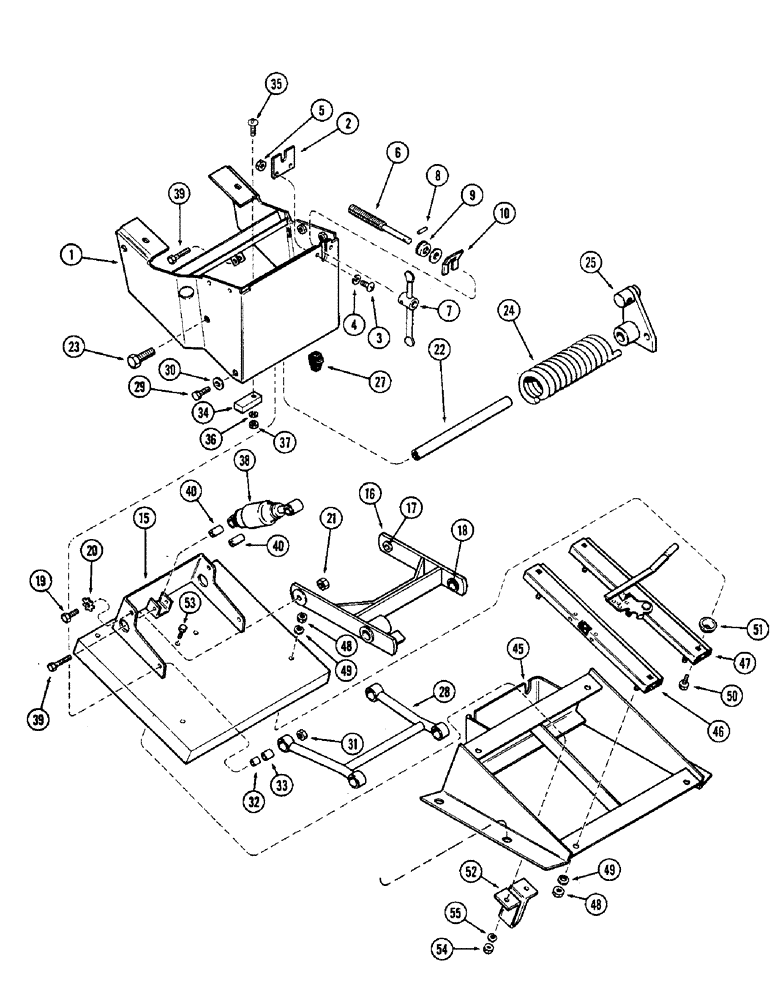

Схема запчастей Case IH 1370 - (424) - SEAT SUSPENSION, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS
32
40
34
48
10
7
20
30
38
19
24
8
39
40
5
31
37
1
49
50
33
2
46
39
28
27
25
15
16
52
3
17
54
18
48
36
4
51
55
35
21
47
23
49
6
45
9
22
53
29

Артикул

Название

Примечание

Количество

A65139

FRAME

SUSPENSION ASSEMBLY - seat (Order A137884), Includes: Ref. 1 - 55

1шт.

1

NSS

NOT SOLD SEPARAT

SUPPORT - seat (Order A65139)

1шт.

2

A43911

PLATE

- adjuster screw

1шт.

3

169-145

SCREW,Sl Fil Hd, 1/4" - 20 x 5/8"

- 1/4 x 1/2" N.C. truss hd.

4шт.

4

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, 1/4"

4шт.

5

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

2шт.

6

A43902

SCREW,5/8" - 11 x 6 1/16", Steel

- tension adjusting

1шт.

7

A44342

SPARE PART

HANDLE - adjusting screw

1шт.

8

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, 1/8" x 1", Slotted

1шт.

9

A43903

THRUST BEARING,7" ID x 29" OD x 9"

BEARING - friction, adj. screw

1шт.

10

A43905

PLATE

- thrust, adj. screw

1шт.

15

NSS

NOT SOLD SEPARAT

PLATFORM - suspension (Order A65139)

1шт.

16

A43910

ARM ASSY.

ARM - upper, suspension

1шт.

17

A43925

BUSHING

BEARING

1шт.

18

F36356

NUT

BUSHING -, Serial Range: platform-arm

2шт.

19

114-224

BOLT - 3/8 x 1-1/8" N.F. hex.

2шт.

20

193-53

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

2шт.

21

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. (Gripco)

2шт.

22

A43900

SHAFT

- torsion spring and arm

1шт.

23

113-424

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

2шт.

24

A43901

SPRING

- torsion, suspension

1шт.

25

A43912

ARM

- adjusting, suspension

1шт.

27

A43897

RUBBER

BUMPER - rubber, suspension

1шт.

28

A43909

ARM ASSY.

ARM - lower, Serial Range: suspension-platform

1шт.

29

114-203

BOLT,Hex, 3/8" - 24 x 1-1/2", Gr 5

- 3/8 x 1" N.F. hex.

4шт.

30

195-104

WASHER,3/8"

- plain, 7/16 x 1 x 3/16"

2шт.

31

230-4616

LOCK NUT,3/8"-24, GA

NUT - lock, 3/8" N.F. hex. (Gripco)

4шт.

32

A43898

BUSHING

- lower arm (25/64" I.D. x 9/16" O.D. x 25/32")

4шт.

33

A43899

BUSHING

BEARING - lower arm (9/16 I.D. x 11/16 O.D. x 3/4")

4шт.

34

A43906

RUBBER

PAD - rubber, lower arm bumper

1шт.

35

173-206

X

SCREW - bumper, #10-24 x 1/2" rd hd.

1шт.

36

195-513

WASHER,#10

- plain, 7/32" I.D. x 1/2" O.D.

1шт.

37

129-17

NUT,Hex, #10 - 24

NUT - hex. #10-24

1шт.

38

A43880

SHOCK ABSORBER

ABSORBER - shock, suspension

1шт.

39

114-8

BOLT,Hex, 1/4" - 28 x 1-3/4", Gr 5

2шт.

40

A43883

BUSHING

- spacer, shock absorber (17/64 x 1/2 x 1-1/16")

2шт.

45

NSS

NOT SOLD SEPARAT

BASE - suspension (Order A65139)

1шт.

46

A43886

RAIL

- adjuster, R.H.

1шт.

47

A44750

RAIL

- adjuster, L.H. (w/handle) (Replaces A43893)

1шт.

48

9635082

NUT,5/16" - 18, Gr 5

8шт.

49

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

8шт.

50

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

4шт.

51

A43885

SPACER

BUSHING - mounting, adjuster rail

4шт.

52

A43913

BRACKET

- seat retainer

1шт.

53

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

2шт.

54

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

55

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 47
