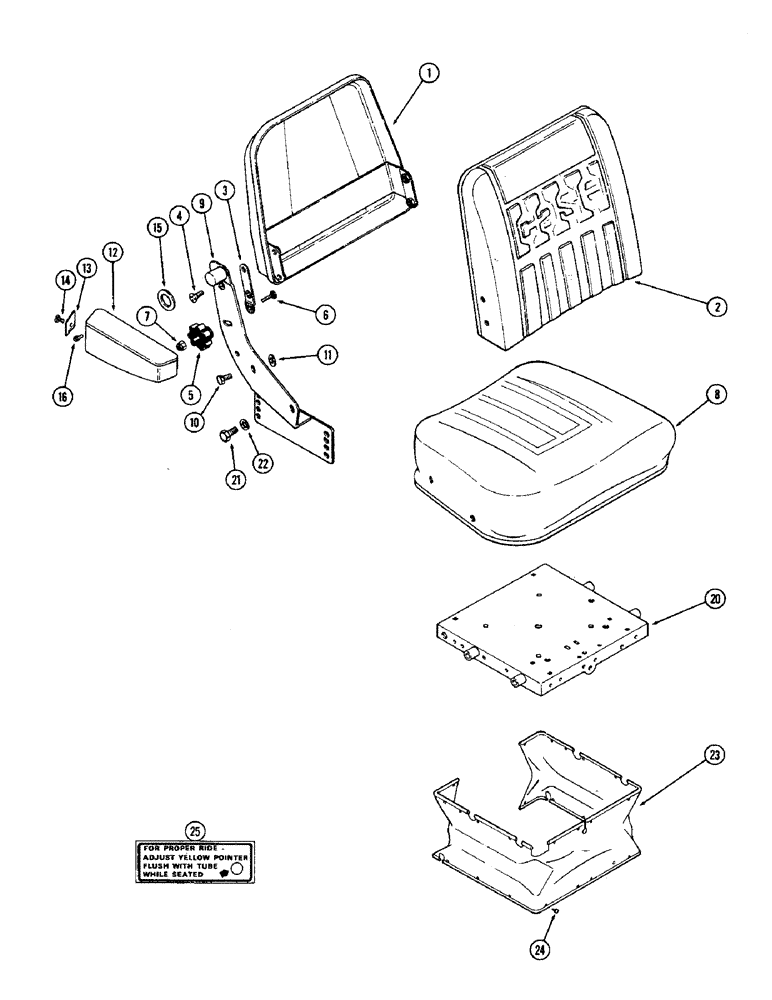

Запчасти Case IH 1370 (416) - SEAT, VINYL, WITHOUT SWIVEL, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

A139547

SEAT

AND SUSPENSION ASSEMBLY - vinyl w/o swivel, Includes: Ref. 1 - 25

1шт.

A45571

CUSHION

BACKREST ASSEMBLY - cushion, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest

1шт.

3

A47342

LINK

- tilt, backrest

2шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

BOLT - 3/8 x 1" N.C. flat hd., Phillips

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- 3/8 x 1-1/2" N.C. rd. hd. carriage

2шт.

7

131-203

LOCK NUT,3/8"-16, GB, LH

NUT - 3/8" N.C. hex. jam (Nylok)

2шт.

8

A45570

CUSHION

SEAT CUSHION ASSEMBLY

1шт.

9

A45579

BRACKET

ASSEMBLY - R.H. side

1шт.

9

A45580

BRACKET

ASSEMBLY - L.H. side

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" N.C. hex.

2шт.

11

A45519

WASHER

SPACER - cushion

12шт.

12

A45489

ARMREST

ASSEMBLY - R.H.

1шт.

12

A45488

ARMREST

ASSEMBLY - L.H.

1шт.

13

A45584

COVER

PLATE - R.H. armrest

1шт.

13

A45583

PLATE

COVER PLATE - L.H. armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - #10 x 5/8" N.C. self-tapping

2шт.

15

192-123

WASHER

- wave, 1-1/8" I.D. x 1-5/8" O.D.

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - #10 x 1/2" N.C. hex. sckt. hd. set

2шт.

20

A45577

PLATE

ASSEMBLY - upper housing

1шт.

21

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

4шт.

22

193-32

LOCK WASHER,Int Tooth, 1/2"

WASHER, LOCK, Int Tooth, 1/2"

4шт.

23

A45576

BOOT

ASSEMBLY - suspension

1шт.

24

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap button, 1/2"

24шт.

25

321-3721

DECAL

- instruction

1шт.
