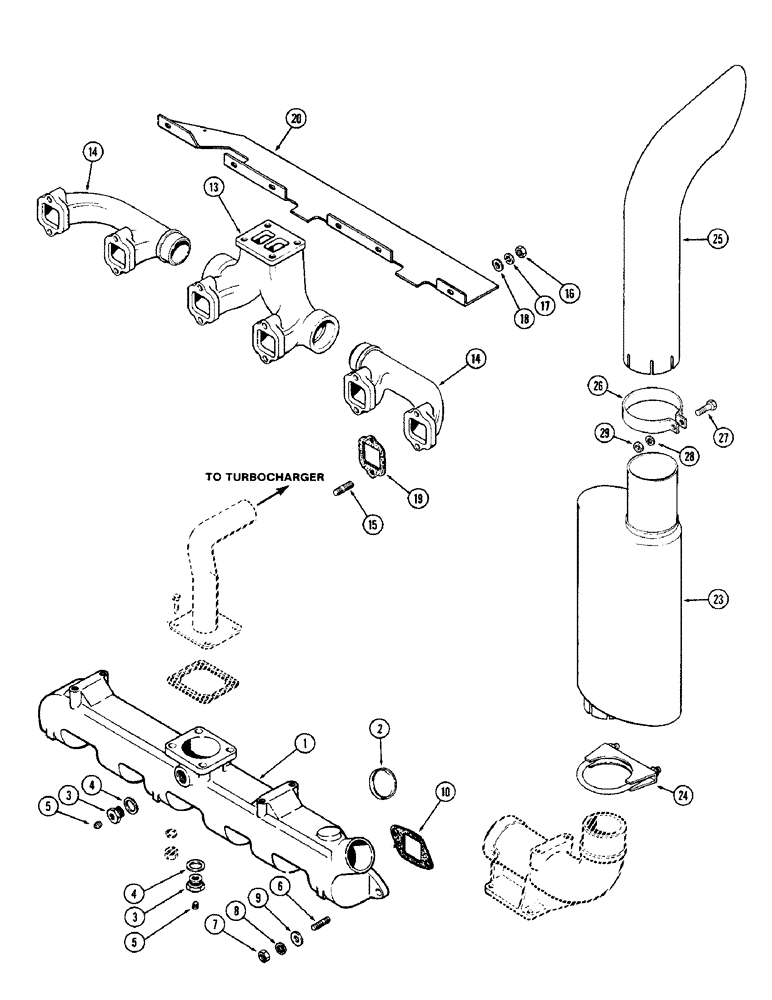

Запчасти Case IH 1370 (022) - MANIFOLDS AND MUFFLER, (504BDT) DIESEL ENGINE (02) - ENGINE

1

A66087

MANIFOLD

ASSEMBLY - intake, Includes: Ref. 2 - 5

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- cup (2-5/8")

1шт.

3

L10283

PLUG

- heater hole

2шт.

4

A20916

MANIFOLD GASKET

GASKET - heater hole plug

2шт.

5

221-41

PLUG

- pipe (1/8" slotted headless)

2шт.

6

A59077

STUD

- intake manifold (3/8" N.C. x 1-13/16")

12шт.

7

25-166

NUT,3/8"-16, G5, Hvy

- 3/8" N.C. hex.

12шт.

8

92-6

LOCK WASHER,3/8"

12шт.

9

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16") Intake manifold

12шт.

10

A58662

MANIFOLD GASKET

- intake manifold

6шт.

13

A76322

MANIFOLD

- exhaust, center

1шт.

14

A65917

MANIFOLD

- exhaust, ends

2шт.

15

A140924

STUD

- exhaust manifold to head (3/8" N.C. x 2-7/16") (Replaces A35175)

12шт.

16

131-903

NUT,3/8"-16

NUT - (3/8" N.C. hex., Seezpruf) Exhaust manifold

12шт.

17

92-6

LOCK WASHER,3/8"

12шт.

18

195-25

WASHER,3/8"

- (13/32 x 13/16 x 1/16") Heat shield

6шт.

19

A58895

GASKET

- exhaust manifold

6шт.

20

A76351

GUARD

SHIELD - heat, exhaust manifold

1шт.

23

A66780

MUFFLER

- exhaust (w/studs for aspirator tube)

1шт.

23

A66199

MUFFLER

- exhaust (w/tapped holes for aspirator tube) (Order A66780 and 2 - 129-103)

1шт.

24

A17851

CLAMP

- muffler

1шт.

25

A76060

MUFFLER

EXTENSION - exhaust

1шт.

26

A76061

CLAMP

- muffler, extension

1шт.

27

113-208

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

1шт.

28

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

29

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

A62175

CYLINDER END CAP

rain, for export only

1шт.

A61637

EXTENSION

1шт.

A62878

CLAMP

1шт.
