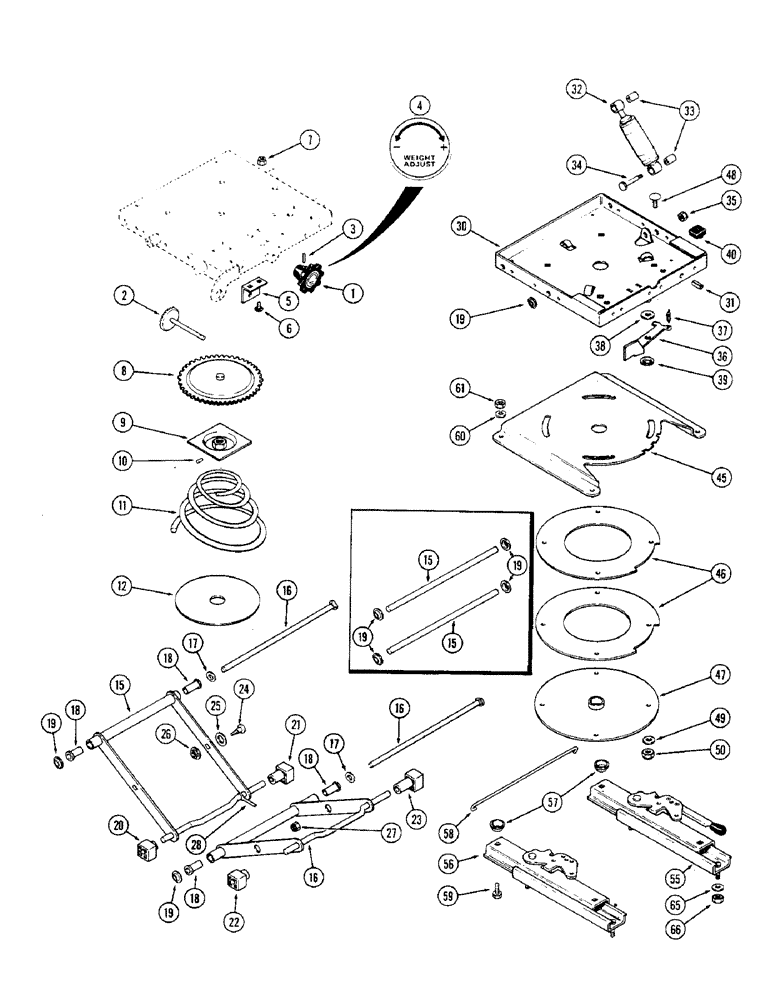

Запчасти Case IH 1370 (412) - SEAT AND SUSPENSION ASSEMBLY, CLOTH WITH SWIVEL, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

A139350

SEAT

and SUSPENSION ASSEMBLY - (Cont'd from Figure 410), Includes: Ref. 1 - 61

1шт.

1

A45508

BUTTON

KNOB - weight adjustment

1шт.

2

A45513

GEAR

and SHAFT ASSEMBLY

1шт.

3

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

4

A45511

DECAL

- weight adjustment

1шт.

5

A45531

BRACKET

- shaft

1шт.

6

411-48

CARRIAGE BOLT,Sq Nk, 1/4" - 20 x 1/2", Gr 2

BOLT - 1/4 x 1/2" N.C. rd. hd. sq. neck

2шт.

7

131-2

NUT,1/4"-20, GB

NUT - 1/4" N.C. hex. jam

2шт.

8

A45505

GEAR

and SHAFT ASSEMBLY

1шт.

9

A45504

SPRING WASHER

- spring

1шт.

10

138-73

LOCK PIN,5/32" x 3/4", Slotted

PIN, 5/32" x 3/4", Slotted

1шт.

11

A45497

SPRING

- conical

1шт.

12

A45530

PAD

- spring

1шт.

15

A45533

TUBE

ARM ASSEMBLY - outer

1шт.

16

A45532

TUBE

ARM ASSEMBLY - inner

1шт.

17

A45057

SHAFT

- bearing (Replaces A45506)

2шт.

18

A45496

TUBE

- bearing

4шт.

19

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

4шт.

20

A45512

BLOCK

- slider, 1-3/16"

1шт.

21

A45516

BLOCK

- slider, 2-3/16"

1шт.

22

A45515

BLOCK

- slider, 1-9/16"

1шт.

23

P0045517A

WASHER

- slider, 2-9/16"

1шт.

24

A45569

STEP BOLT

BOLT - 3/8 x 1" N.C. rd. hd. sq. neck

2шт.

25

A45519

WASHER

- spacer

2шт.

26

A45498

BUSHING

BEARING - cross pivot

2шт.

27

131-6

LOCK NUT,3/8"-16, GC

NUT - 3/8" N.C. hex. jam

2шт.

28

A47070

INDICATOR

- seat height

1шт.

30

A45525

BASE

ASSEMBLY - lower, w/swivel

1шт.

31

138-134

LOCK PIN,1/4" x 1", Slotted

PIN, 1/4" x 1", Slotted

1шт.

32

A45503

SHOCK ABSORBER

- seat

1шт.

33

A45501

BUSHING,0.504" ID x 0.87" OD x 1.417"

BEARING - shock absorber

2шт.

34

A45056

STEP BOLT

BOLT - shoulder (Replaces A45502)

1шт.

35

131-206

NUT,3/8"-16

NUT - 3/8" N.C. hex. nylock

1шт.

36

A45520

LATCH

- swivel

1шт.

37

A45521

SPRING

- latch swivel

1шт.

38

A45519

WASHER

- spacer

1шт.

39

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, (Pal type) Push, 1/2"

1шт.

40

A45509

RUBBER

BUMPER - seat

2шт.

45

A45582

PLATE

- swivel latch

1шт.

46

A45514

DISC

BEARING - swivel

2шт.

47

A45526

PLATE

ASSEMBLY - bottom swivel

1шт.

48

11-620

CARRIAGE BOLT,Short NK, 3/8"-16 x 1 1/4", G2

BOLT - 3/8 x 1-1/4" N.C. rd. hd. sq. nk.

4шт.

49

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

4шт.

50

131-6

LOCK NUT,3/8"-16, GC

NUT - lock, 3/8" N.C. hex.

4шт.

55

A45522

SLIDE

ASSEMBLY - seat mounting (w/handle)

1шт.

56

A45523

SLIDE

ASSEMBLY - seat mounting

1шт.

57

NSS

NOT SOLD SEPARAT

SPACER - slide (Furnished with slide)

4шт.

58

A45524

ROD

- connecting, slide latches

1шт.

59

A47172

BOLT

- 5/1 x 1" N.C. "D" head

4шт.

60

92-5

LOCK WASHER,5/16"

4шт.

61

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

4шт.

65

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

4шт.

66

9635082

NUT,5/16" - 18, Gr 5

Seat to adapter plate 5/16"-18, G5

4шт.

P/N A64818 Adjuster.

1шт.
