Запчасти Case IH 1370 (410) - SEAT AND SUSPENSION ASSEMBLY, CLOTH WITH SWIVEL, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

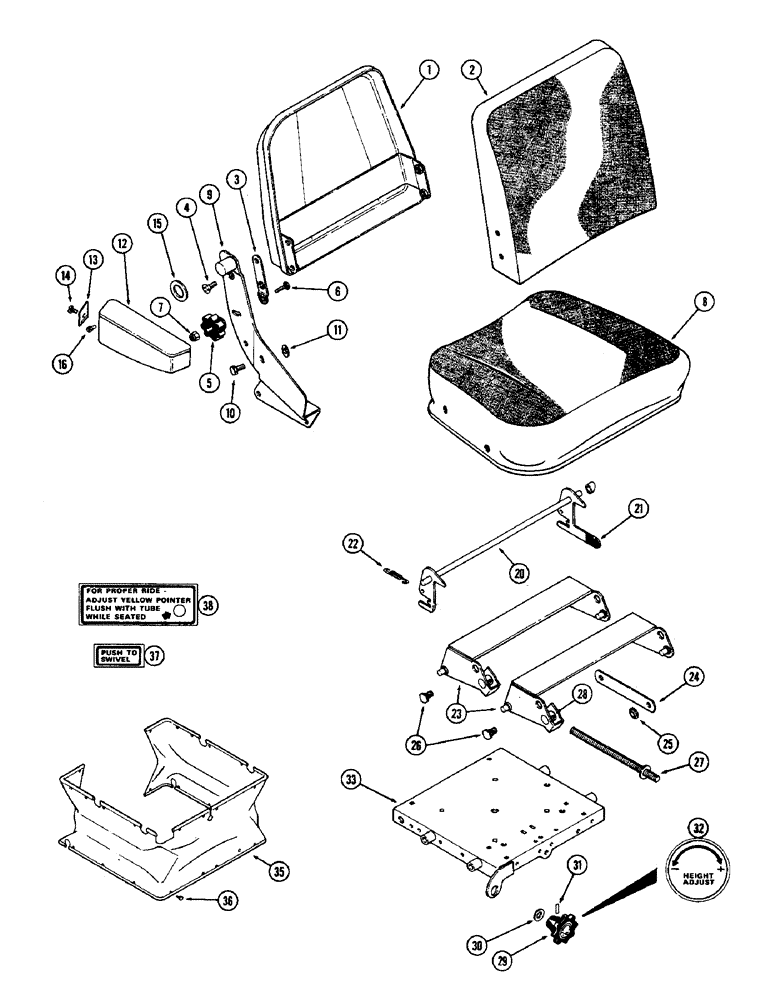

Схема запчастей Case IH 1370 - (410) - SEAT AND SUSPENSION ASSEMBLY, CLOTH WITH SWIVEL, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS
24
38
5
29
11
26
25
4
33
27
16
7
1
32
21
22
6
9
20
37
2
28
15
23
12
14
10
35
30
13
36
3
31
8

Артикул

Название

Примечание

Количество

A139350

SEAT

AND SUSPENSION ASSEMBLY - cloth w/20 degree swivel, Includes: Ref. 1 - 38

1шт.

A45485

BACKREST

BRACKET ASSEMBLY - cushion, Includes: Ref. 1 - 4

1шт.

1

NSS

NOT SOLD SEPARAT

PAN - backrest

1шт.

2

NSS

NOT SOLD SEPARAT

PAD AND COVER - backrest

1шт.

3

A47342

LINK

- tilt, backrest

2шт.

4

171-228

SCREW,Sl Flat Hd, 3/8" - 16 x 1"

BOLT - 3/8 x 1" N.C. flat hd. Phillips

2шт.

5

A45487

BUTTON

KNOB - tilt, backrest

2шт.

6

A45527

CARRIAGE BOLT

- 3/8 x 1-1/2" N.C. R.H. carriage

2шт.

7

131-206

NUT,3/8"-16

NUT - 3/8" N.C. hex. jam

2шт.

8

A45494

SEAT

CUSHION ASSEMBLY

1шт.

9

A45529

BRACKET

ASSEMBLY - R.H. side

1шт.

9

A45528

SUPPORT

BRACKET ASSEMBLY - L.H. side

1шт.

10

13-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5, Full Thd

- 1/2 x 1-1/2" N.C. hex.

2шт.

11

A45486

SPACER

- cushion

2шт.

12

A45489

ARMREST

ASSEMBLY - R.H.

1шт.

12

A45488

ARMREST

ASSEMBLY - L.H.

1шт.

13

A45584

COVER

PLATE - R.H. armrest

1шт.

13

A45583

PLATE

COVER PLATE - L.H. armrest

1шт.

14

187-130

SELF-TAP SCREW,Slotted Flat Hd, #10 x 5/8"

SCREW - #10 x 5/8" N.C. self-tapping

2шт.

15

A47352

WASHER

- wave, 1-1/8" I.D. x 1-5/8" O.D.

2шт.

16

178-17

SET SCREW,Hex Soc, #10-24 x 1/2"

SCREW - #10 x 1/2" N.C. hex. sckt. hd. set

2шт.

20

A45478

SHAFT

ASSEMBLY - tilt

1шт.

21

A45472

CAP

- handle

1шт.

22

A45471

- tension

2шт.

23

A45475

LOWER LINK

CROSS LINK ASSEMBLY - seat

2шт.

24

A45474

LINK

- connection

1шт.

25

131-425

PUSH-ON NUT,Push, 1/2"

NUT, LOCK, Push, 1/2"

6шт.

26

A45473

STEP BOLT

BOLT - shoulder

2шт.

27

A45476

SHAFT

ASSEMBLY - height adjustment

1шт.

28

A45477

BRACKET, PIVOT

PIVOT NUT ASSEMBLY - adjustment shaft

2шт.

29

A45491

COVER

KNOB - height adjustment

1шт.

30

A45483

WASHER

- thrust

1шт.

31

138-71

LOCK PIN,5/32" x 5/8", Slotted

PIN, 5/32" x 5/8", Slotted

1шт.

32

321-3720

DECAL

- height adjustment

1шт.

33

A45534

PLATE

ASSEMBLY - upper housing

1шт.

35

A45507

BOOT

ASSEMBLY - suspension

1шт.

36

151-705

CLIP,Rd 1/2" Hd, 1/4" Hole

RIVET - snap-button, 1/2"

24шт.

37

341-3719

DECAL - swivel

1шт.

38

321-3721

DECAL

- instruction

1шт.
