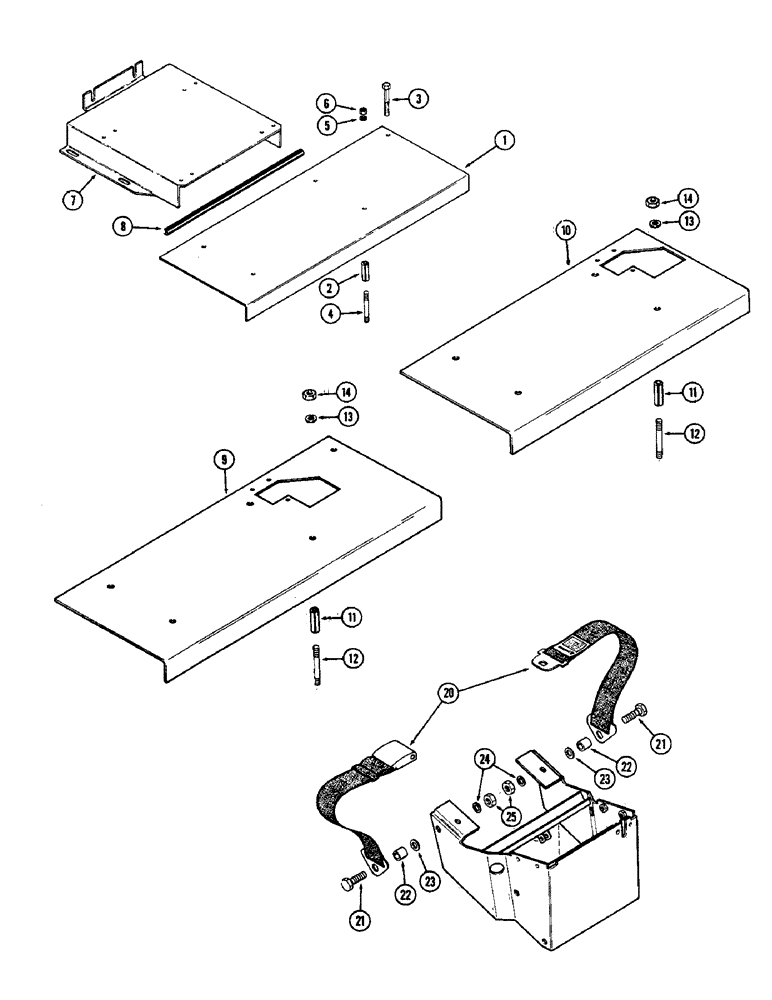

Запчасти Case IH 1370 (408) - SEAT SUPPORT PLATE, FIRST USED P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

1

A137209

PLATE

- seat suspension

1шт.

2

A65472

SPACER

- support (13/32" I.D. x 2" high)

5шт.

3

13-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

- (3/8 x 3" N.C. hex.) L.H. rear hole

1шт.

4

A137836

STUD

- (3/8" N.C. x 4")

4шт.

5

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64")

5шт.

6

131-52

NUT,3/8"-16, GC

NUT - lock (3/8" N.C. hex. Esna)

4шт.

7

A139801

SUPPORT

ADAPTER -, Serial Range: seat-support

1шт.

8

A64865

SEAT

TRIM - seat adapter edge

1шт.

9

A63647

PLATE

- seat suspension (w/R.H. control console), Serial Range: -8797501

1шт.

10

A63649

PLATE

- seat suspension (w/L.H. and R.H. console), Serial Range: -8797501

1шт.

11

A65472

SPACER

- support (13/32" I.D. x 2" high), Serial Range: -8797501

4шт.

12

A137836

STUD

- (3/8" N.C. x 4") (1st used P.I.N. 8755218), Serial Range: -8797501

4шт.

12

A66428

PLATE

STUD - (3/8" N.C. x 3-1/2") (Order A137836), Serial Range: -8797501

4шт.

12

A66428

PLATE

STUD - (3/8" N.C. x 3-1/2") (Order A137836), Serial Range: -8755218

4шт.

13

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64), Serial Range: -8797501

5шт.

14

131-52

NUT,3/8"-16, GC

NUT - lock (3/8" N.C. hex. Esna), Serial Range: -8797501

4шт.

20

A66391

SAFETY BELT

SAFETY BELT, Used with cab or Rops only

1шт.

21

A61946

STEP BOLT

BOLT - shoulder, seat belt, safety, used with cab or rops only

2шт.

22

A60907

BUSHING

SPACER - anchor bolt (Not used w/series 30 seat), safety belt, used with cab or rops only

2шт.

23

195-529

WASHER,7/16", SAE

- 15/32 x 59/64 x 1/16", safety seat belt, used with cab or rops only

2шт.

24

192-22

LOCK WASHER,7/16"

WASHER, LOCK, , Safety seat belt, used with cab or ROPS only 7/16"

2шт.

25

425-117

NUT,7/16"-20, G5

- 7/16" N.C. hex., safety seat belt, used with cab or rops only

2шт.
