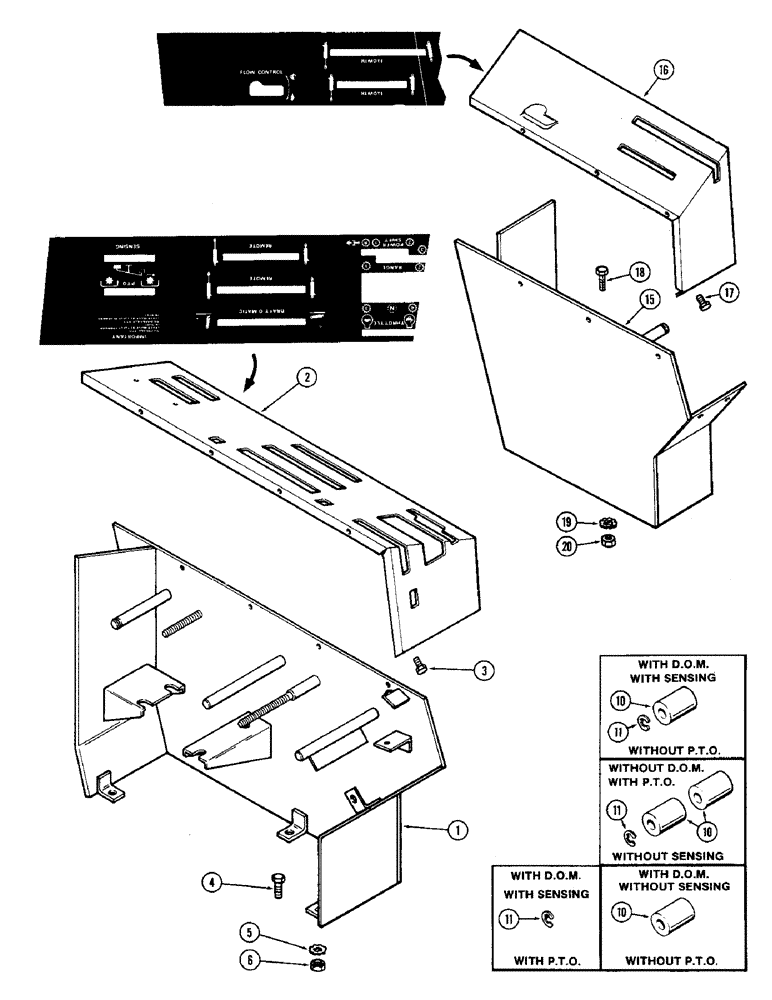

Запчасти Case IH 1370 (406) - CONTROL CONSOLE, USED PRIOR TO P.I.N. 8797501 (09) - CHASSIS/ATTACHMENTS

1

A65582

FRAME

CONSOLE ASSEMBLY - control, R.H.

1шт.

2

A65578

PANEL

COVER - control console, R.H. See Figure 438 for decal kit.

1шт.

3

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex.

6шт.

4

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

3шт.

5

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

3шт.

6

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

3шт.

10

A59994

SPACER

- D-O-M sensing and P.T.O. (See insets)

1шт.

11

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, (see insets) #62, .480" Dia, E-Type

1шт.

15

A64010

PANEL

CONSOLE ASSEMBLY - control, L.H.

1шт.

16

A64009

PANEL

COVER - control console, L.H. See Figure 438 for decal kit.

1шт.

17

113-22

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5, Full Thd

- 1/4 x 1/2" N.C. hex.

5шт.

18

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

18

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

2шт.

19

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - Shakeproof, 3/8" int./ext.

3шт.

20

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.
