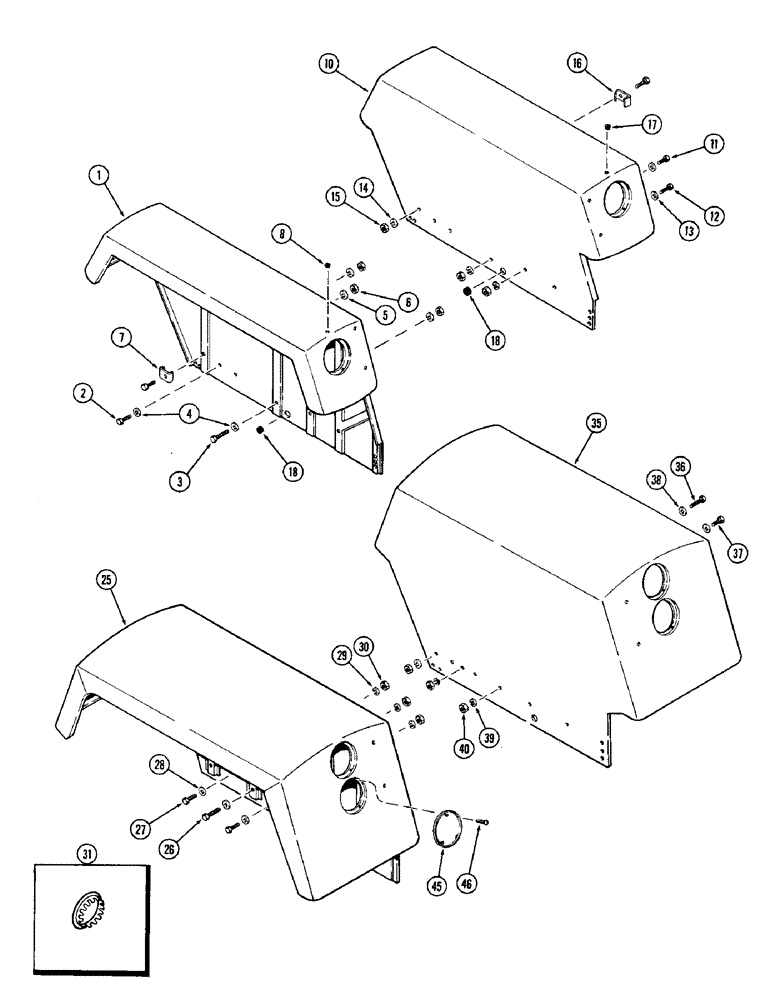

Запчасти Case IH 1370 (402) - FENDERS, USED WITHOUT CAB, 12 INCH FENDER (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
A64890
FENDER
ASSEMBLY - 12" R.H. (w/o cab)
1шт.
2
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
1шт.
3
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
6шт.
4
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
7шт.
5
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
7шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
7шт.
7
A59318
BRACKET
- fender side sheet mounting
4шт.
8
353-405
PLUG,Dome, .562" hole, Nylon
- button (9/16" hole)
2шт.
10
A64891
FENDER
ASSEMBLY - 12" L.H. (w/o cab)
1шт.
11
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
3шт.
12
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
4шт.
13
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32"
5шт.
14
192-21
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
5шт.
15
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, 3/8"-16, G5
5шт.
16
A59318
BRACKET
- fender side sheet mounting
4шт.
17
353-405
PLUG,Dome, .562" hole, Nylon
- 9/16" button
1шт.
18
A59722
GROMMET
- wire harness
2шт.
25
A64892
FENDER
ASSEMBLY - 24" R.H. (w/o cab)
1шт.
26
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
24" fender Hex, 3/8"-16 x 2 1/2", G5
6шт.
27
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
28
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" fender
7шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" fender 3/8"
7шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" fender 3/8"-16, G5
7шт.
31
353-405
PLUG,Dome, .562" hole, Nylon
- 9/16" button (R.H. fender), 24"
1шт.
35
A64893
FENDER
ASSEMBLY - 24" L.H. (w/o cab)
1шт.
36
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
., 24" fender Hex, 3/8"-16 x 2", G5
2шт.
37
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/4" N.C. hex., 24" fender
4шт.
37
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
38
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" fender
5шт.
39
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" fender 3/8"
5шт.
40
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" fender 3/8"-16, G5
5шт.
45
A59330
COVER
- cultivator light opening (Desert sunset) (Order A66660), 24" fender, Serial Range: -8736001
2шт.
45
A66660
PLATE
COVER - cultivator light opening (White) (1st used P.I.N. 8736001), 24" fender
2шт.
46
187-1050
SCREW
- #10 x 1/2" N.C. type T tap (R.H. and L.H.), 24" fender
6шт.
Выбрано товаров: 34
