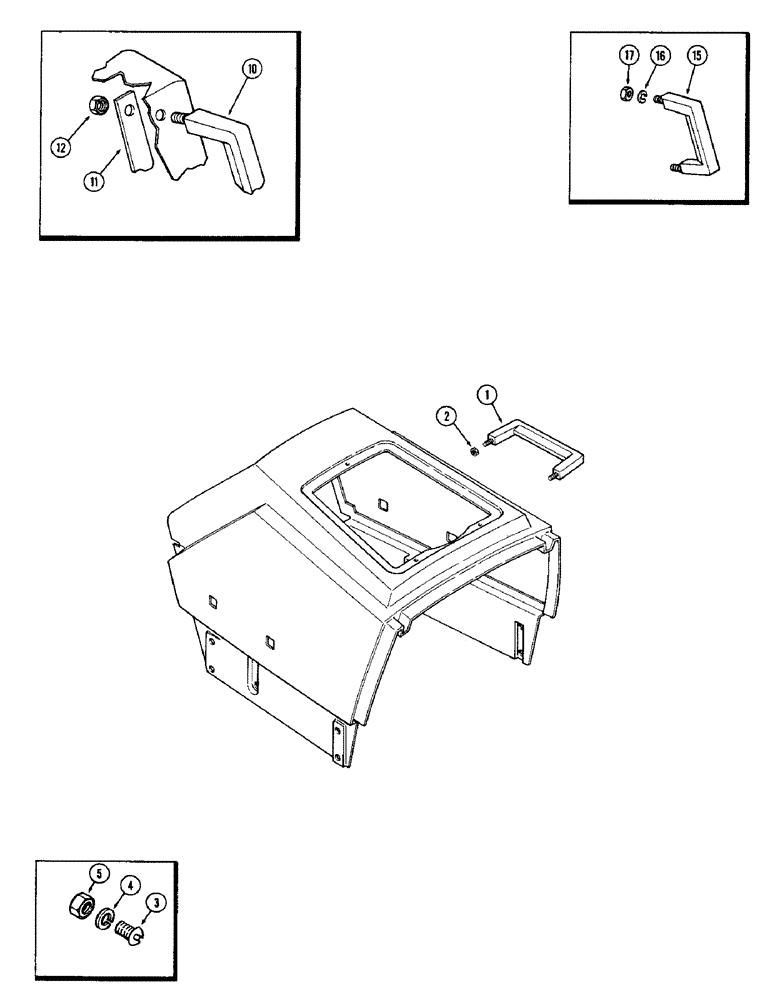

Запчасти Case IH 1370 (400) - MOUNTING HANDLES (09) - CHASSIS/ATTACHMENTS

1

A63828

HANDLE

- hood, L.H. (w/o cab)

1шт.

2

230-4216

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. hex. whiz lock)

2шт.

3

175-467

BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"

- (3/8 x 5/8" N.C. truss hd. slotted) (Plugs R.H. fender handle holes)

2шт.

4

92-6

LOCK WASHER,3/8"

2шт.

5

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.

A65434

KIT

ATTACHEMENT - fender mounting handle (R.H. and L.H.) (12" and 24" fenders), Includes: Ref. 10 - 12

1шт.

10

A60530

HANDLE

- mounting

1шт.

11

A59338

PLATE

- handle mounting

1шт.

12

230-4216

LOCK NUT,3/8"-16, GA

NUT - (3/8" N.C. whiz lock)

2шт.

15

A60530

HANDLE

- fender, L.H. (In headlight bracket (w/cab)

1шт.

16

192-46

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

17

129-770

NUT,3/8"-16, G5

- (3/8" N.C. hex.)

2шт.
