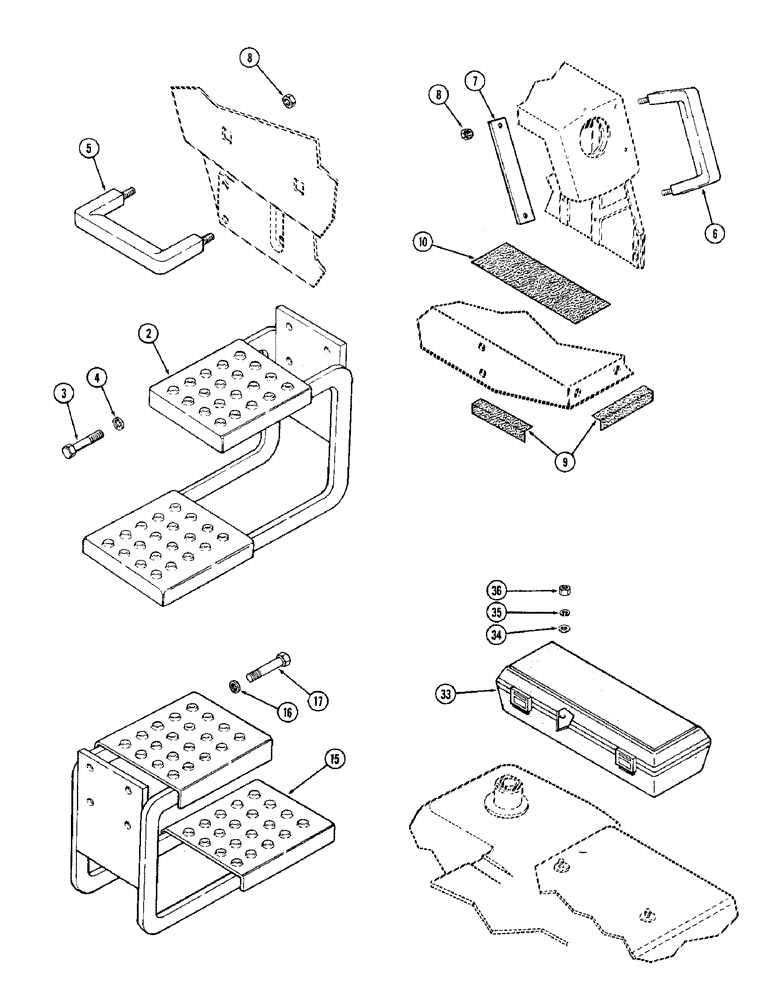

Запчасти Case IH 1370 (398) - STEPS, WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

A63824

ATTACHMENT - step and handles, R.H. (Mach. item), Includes: Ref. 2 - 10

1шт.

2

A63825

STEP

ASSEMBLY - R.H.

1шт.

3

113-783

BOLT - 5/8 x 3" N.C. hex. w/Jay lock

4шт.

4

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

5

A63828

HANDLE

- hood, R.H.

1шт.

6

A60530

HANDLE

- fender, R.H.

1шт.

7

A59338

PLATE

- fender handle

1шт.

8

230-4216

LOCK NUT,3/8"-16, GA

NUT - 3/8" N.C. whiz lock

4шт.

9

A62468

TREAD

- non-slip, 2 x 6"

2шт.

10

A62469

COVER

TREAD - non-slip, 4 x 12"

1шт.

15

A63825

STEP

ASSEMBLY - L.H.

1шт.

16

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

4шт.

17

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

33

A66152

BOX

- tool, mounted

1шт.

34

195-104

WASHER,3/8"

- (7/16 x 1 x 5/64"), tool box

4шт.

35

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Tool box 3/8"

4шт.

36

131-1306

JAM NUT,Jam, 3/8"-16

NUT - (3/8" N.C. hex.) (Gripco), tool box

4шт.
