(396) - PLATFORM MOUNTS, FIRST USED P.I.N. 8785212

Запчасти Case IH 1370 (396) - PLATFORM MOUNTS, FIRST USED P.I.N. 8785212 (09) - CHASSIS/ATTACHMENTS

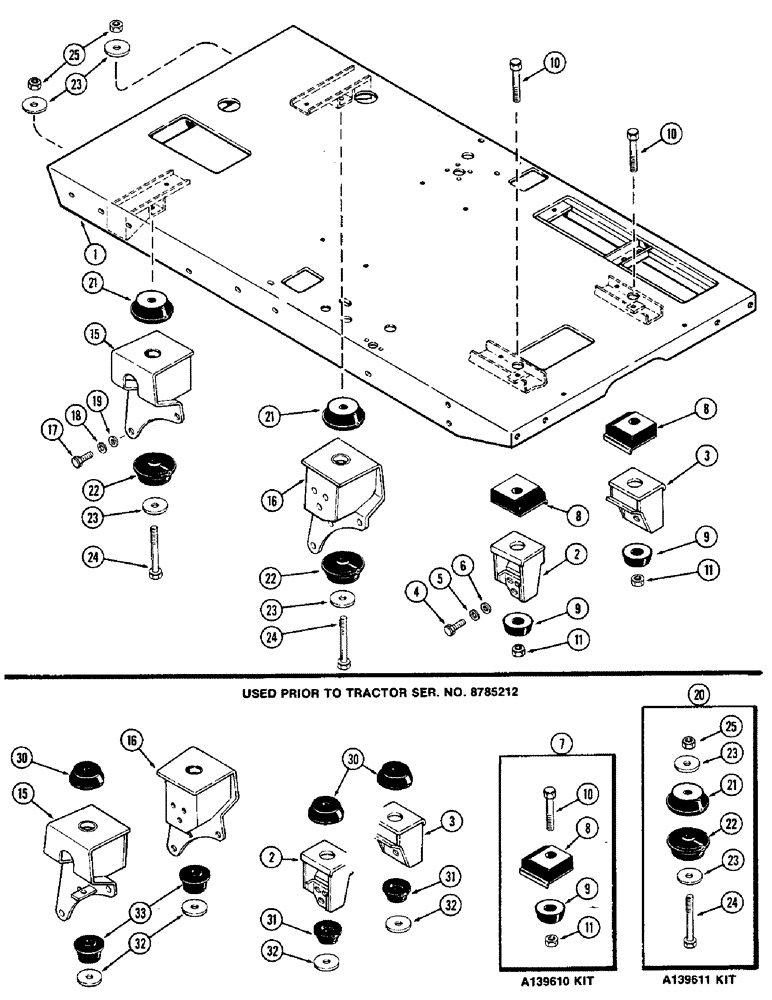

Схема запчастей Case IH 1370 - (396) - PLATFORM MOUNTS, FIRST USED P.I.N. 8785212 (09) - CHASSIS/ATTACHMENTS
33
22
6
15
31
23
8
25
11
20
5
23
22
8
1
2
23
32
18
15
11
24
10
10
9
17
3
22
4
24
25
16
21
23
30
19
16
10
7
21
11
21
31
30
24
9
3
32
32
23
2
8
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

DECK ASSEMBLY - platform (See Figure 394)

1шт.

2

A63628

MOUNTING PARTS

MOUNT ASSEMBLY - platform, R.H. front

1шт.

3

A63629

MOUNTING PARTS

MOUNT ASSEMBLY - platform, L.H. front

1шт.

4

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

- 1/2 x 1-3/4" N.C. hex.

6шт.

5

92-8

LOCK WASHER,1/2"

6шт.

6

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 5/64") 1/2"

6шт.

7

A139610

KIT

- platform front mounts, Includes: Ref. 8 - 11

2шт.

8

A139409

MOUNTING PARTS

MOUNT - compression, upper front (Order Ref. 7)

1шт.

9

A139408

MOUNTING PARTS

MOUNT - rebound, lower front (Order Ref. 7)

1шт.

10

13-1060

BOLT,Hex, 5/8" - 11 x 3-3/4", Gr 5

- 5/8 x 3-3/4" N.C. hex.

1шт.

11

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

15

A65608

BRACKET

MOUNT ASSEMBLY - platform, R.H. rear

1шт.

16

A65609

BRACKET

MOUNT ASSEMBLY - platform, L.H. rear

1шт.

17

13-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5, Full Thd

6шт.

18

92-8

LOCK WASHER,1/2"

6шт.

19

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 5/64") 1/2"

6шт.

20

A139611

RUBBER MOUNTING

KIT - platform rear mounts, Includes: Ref. 21 - 25

2шт.

21

A139401

MOUNTING PARTS

MOUNT - upper rear (Color code pink) (Order Ref. 20)

1шт.

22

A139400

MOUNTING PARTS

MOUNT - lower rear (Color code green) (Order Ref. 20)

1шт.

23

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- upper and lower rear mount (21/32 x 2-1/4 x 1/4")

2шт.

24

13-1076

BOLT,Hex, 5/8" - 11 x 4-3/4", Gr 5

- 5/8 x 4-3/4" N.C. hex.

1шт.

25

131-14

LOCK NUT,5/8"-11, GC

NUT, LOCK, 5/8"-11, GC

1шт.

30

A64854

RUBBER MOUNTING

MOUNT - platform upper, front (3-1/4" O.D. w/41/64" hole) (Order A139610 and A139611 kits), Serial Range: -8785212

4шт.

31

A63638

PAD, RUBBER

MOUNT - platform lower, front (2-1/2" O.D. w/1/16" hole) (Order A139610 kit), Serial Range: -8785212

2шт.

32

A59517

WASHER,16.66mm ID x 57.15mm OD x 6.35mm Thk

- 21/32 x 2-1/4 x 1/4", Serial Range: -8785212

2шт.

33

A64855

WASHER

MOUNT - platform lower, rear (3" O.D. w/41/64" hole) (Order A139611 kit), Serial Range: -8785212

2шт.
