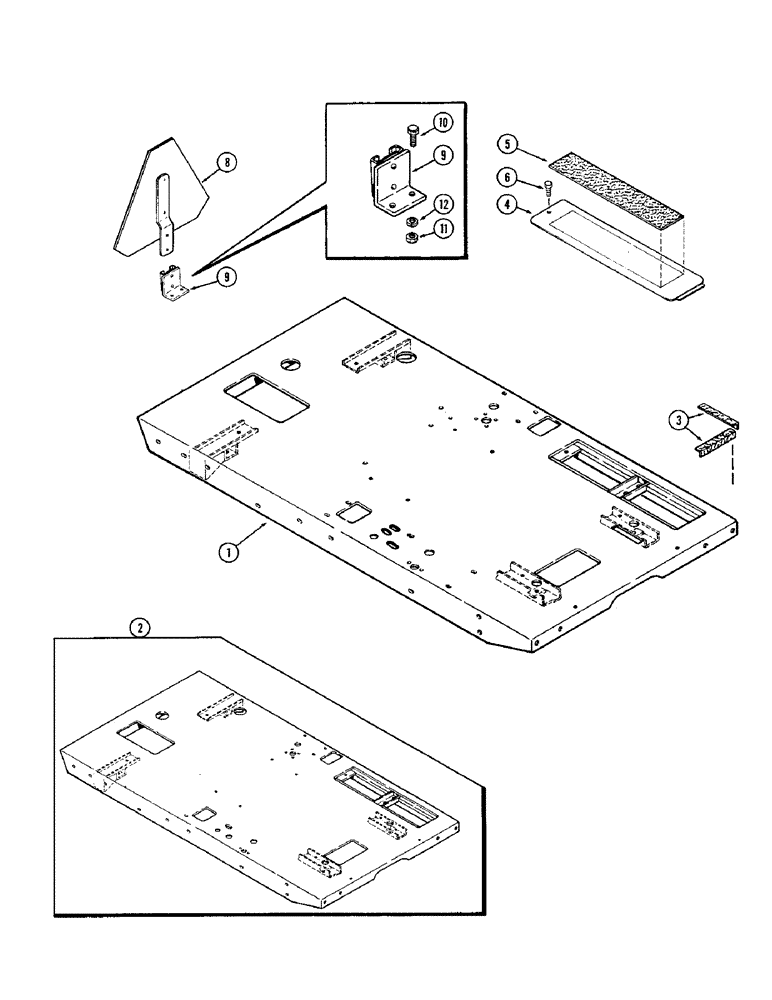

Запчасти Case IH 1370 (394) - PLATFORM, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

A135876

PLATE

DECK ASSEMBLY - platform (1st used P.I.N. 8797501) (Used w/park lock) See Figure 396 for platform supports.

1шт.

2

A66430

PLATE

DECK ASSEMBLY - platform See Figure 396 for platform supports., Serial Range: -8797501

1шт.

3

A62468

TREAD

- platform (Non-slip)

2шт.

4

A59507

GUARD

COVER ASSEMBLY - battery access

1шт.

5

A62469

COVER

TREAD - battery cover (Non-slip)

1шт.

6

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. hex. lock

1шт.

8

A59450

WARNING SIGN

EMBLEM ASSEMBLY - slow moving vehicle

1шт.

9

A66814

BRACKET

ASSEMBLY - emblem (Replaces A63898), slow moving vehicle

1шт.

10

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

SMV emblem Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

11

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , SMV emblem 3/8"-16, G5

2шт.

12

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , SMV emblem 3/8"

2шт.
