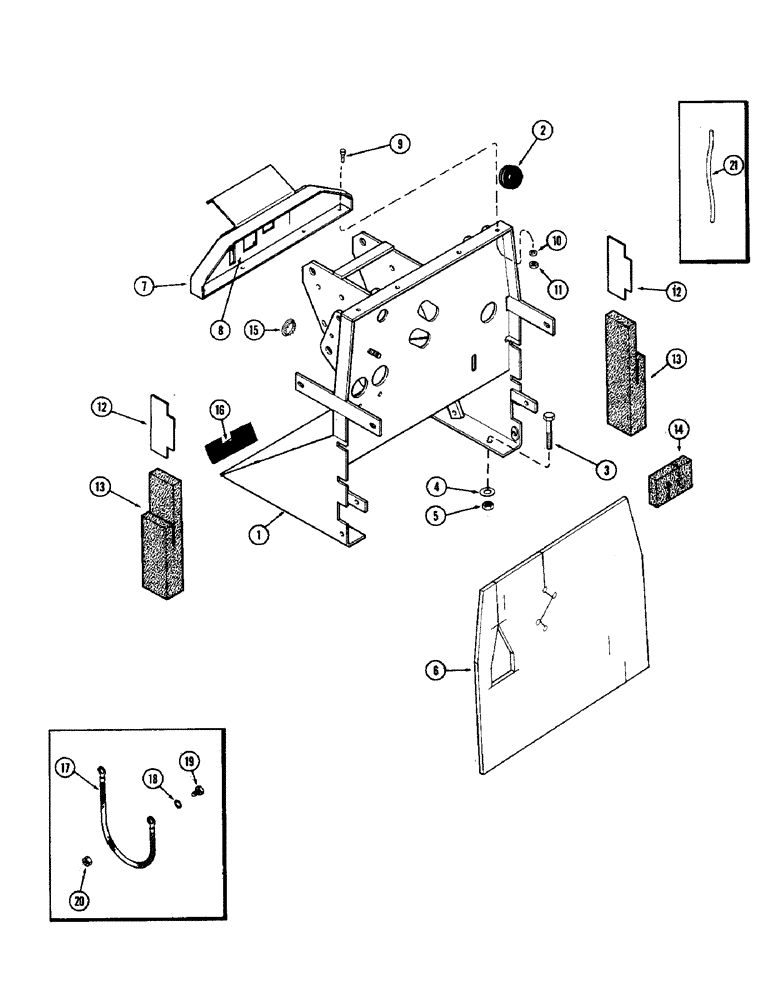

Запчасти Case IH 1370 (392) - FIREWALL, USED PRIOR TO P.I.N. 8736001 (09) - CHASSIS/ATTACHMENTS

1

A65531

FRAME

FIREWALL ASSEMBLY

1шт.

2

A59719

GROMMET

- firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

3

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

4шт.

4

92-8

LOCK WASHER,1/2"

4шт.

5

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex.

4шт.

6

A63055

PAD

- acoustical, firewall

1шт.

7

A66374

BAFFLE

- firewall, top

1шт.

8

A66377

PAD - firewall top baffle To be attached with adhesive 345-22.

1шт.

9

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

4шт.

10

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

11

25-104

NUT,1/4"-20, G5

4шт.

12

A66378

SUPPORT

- firewall sides sealing foam

2шт.

13

A66379

BAFFLE

- firewall sides bottom foam To be attached with adhesive 345-22.

2шт.

14

A64965

SEAL

- firewall sealing To be attached with adhesive 345-22.

4шт.

15

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - 1-1/2" button

4шт.

16

A63059

COVER

- floor plate hole (w/o diff. lock)

1шт.

17

A64704

STRAP

- grounding, instrument panel (70" long)

1шт.

18

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

19

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

20

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

21

345-27

BEAD - filler (Use 345-17 sealant)

1шт.
