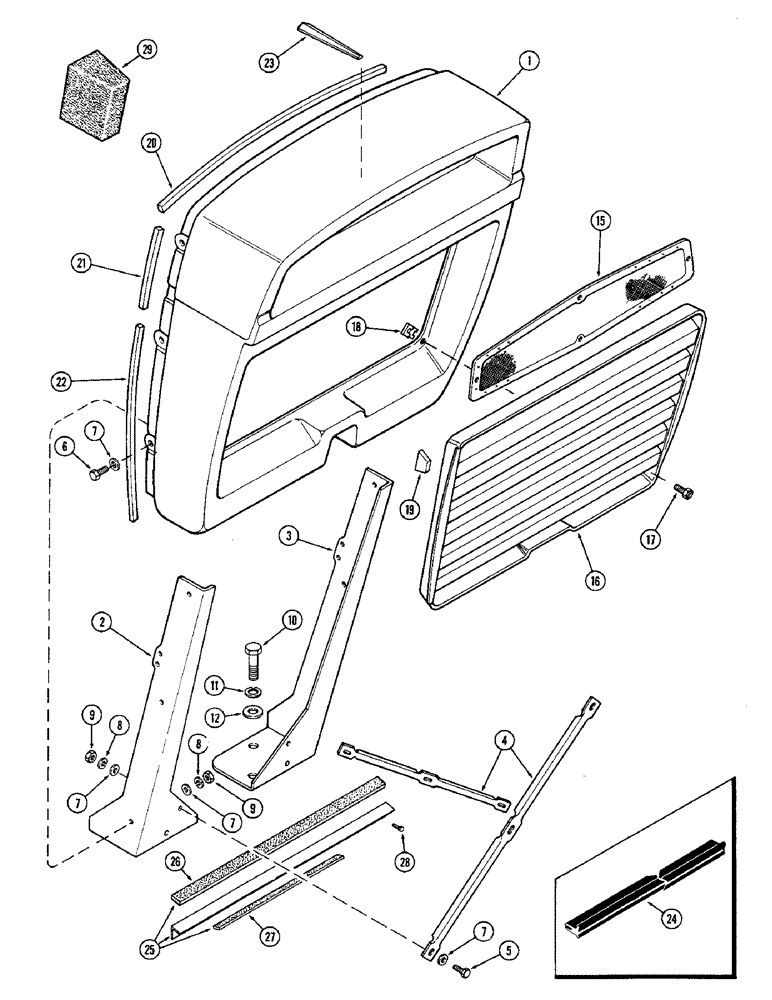

Запчасти Case IH 1370 (388) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A63963

GRILLE

- fiberglass

1шт.

2

A63968

SUPPORT

- grille, R.H.

1шт.

3

A63969

SUPPORT

- grille, L.H.

1шт.

4

A63970

BRACE

- grille support

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

7

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16"

22шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

11шт.

9

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

11шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

11

192-167

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

12

195-45

WASHER,3/4"

4шт.

15

A63832

AIR CLEANER

SCREEN - upper

1шт.

16

A63835

SCREEN

- lower

1шт.

17

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.C. hex., sltd.

8шт.

18

131-616

NUT,Ret, J, 5/16"-18

RETAINER - Tinnerman, J-type

8шт.

19

A63839

FOAM - grille screen

12шт.

20

A63831

STRIP

SEAL - hood to grille (13/16 x 1/2 x 26") To be attached with adhesive 345-22.

1шт.

21

A59747

GASKET

SEAL - upper, grille side (13/16" sq. x 8-1/2") (To be attached with adhesive 345-22.

2шт.

22

A59748

GASKET

SEAL - front side panel (13/16" sq. x 20-3/4") To be attached with adhesive 345-22.

2шт.

23

A135604

POINTER

TRIM - grille, sight gauge (Replaces A62690)

1шт.

24

A66638

SEAL

- lower, grille (Order ref. 25 and 28)

1шт.

25

A66998

BAFFLE

ASSEMBLY - lower (Replaces A66638), Includes: Ref. 26 and 27

1шт.

26

A67041

FOAM

SEAL - upper, baffle (1/2 x 3/4 x 24-1/2")

1шт.

27

A67042

FOAM

SEAL - lower, baffle (1/2 x 3/4 x 14")

1шт.

28

187-1036

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 1/2"

SCREW - self-tap (1/4 x 1/2" N.C. hex.)

2шт.

29

A147164

FOAM

SEAL - grille, corner (1st used P.I.N. 8813790) To be attached with adhesive 345-22.

2шт.
