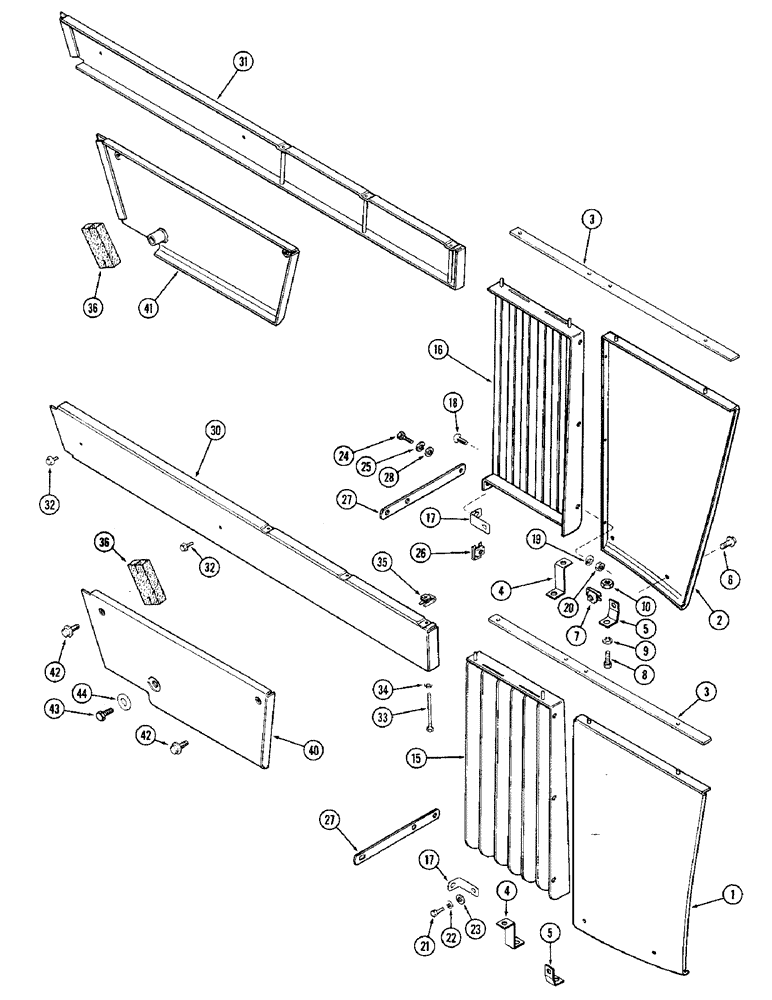

Запчасти Case IH 1370 (386) - FRONT SIDE PANELS (09) - CHASSIS/ATTACHMENTS

1

A63864

PANEL

ASSEMBLY - front side, R.H.

1шт.

2

A63865

VALVE

PANEL ASSEMBLY - front side, L.H.

1шт.

3

A63848

SPACER

- hood and side sheets To be attached with adhesive 345-22.

2шт.

4

A63868

BRACKET

- lower rear

2шт.

5

A63869

BRACKET

- lower front

2шт.

6

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

4шт.

7

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman

4шт.

8

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

4шт.

9

92-6

LOCK WASHER,3/8"

4шт.

10

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

15

A65316

GRILLE

LOUVER ASSEMBLY - right side

1шт.

16

A65317

GRILLE

LOUVER ASSEMBLY - left side

1шт.

17

A63863

BRACKET

- louver mounting

2шт.

18

175-466

SCREW,Phil Truss Hd, 5/16" - 18 x 5/8"

- 5/16 x 5/8" truss hd., louvers

6шт.

19

92-5

LOCK WASHER,5/16"

louvers 5/16"

6шт.

20

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex., louvers

6шт.

21

113-291

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

- 3/8 x 3/4" N.C. hex., louvers

2шт.

22

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , Louvers 3/8"

2шт.

23

195-129

WASHER,3/8"

- 13/32 x 13/16 x 1/6", louvers

2шт.

24

113-151

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5, Full Thd

- 5/16 x 3/4" N.C. hex., louvers

2шт.

25

192-45

LOCK WASHER

- lock, 5/16", louvers

2шт.

26

131-616

NUT,Ret, J, 5/16"-18

- 5/16" Tinnerman, louvers

2шт.

27

A65058

BRACKET

STRAP - louver mounting

2шт.

28

195-128

WASHER,5/16"

- (3/8 x 1-1/8 x 5/64"), louvers

2шт.

30

A65350

PANEL

ASSEMBLY - decal, R.H.

1шт.

31

A65351

PANEL

ASSEMBLY - decal, L.H.

1шт.

32

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. hex. self-lock, decal panels

4шт.

33

113-31

BOLT,Hex, 1/4" - 20 x 4-3/4", Gr 5

- 1/4 x 4-3/4" N.C. hex., decal panels

6шт.

34

192-44

LOCK WASHER

- lock, 1/4", decal panels

6шт.

35

131-620

SPRING NUT,J, 1/4" - 20, 0.025" Thk

RETAINER - Tinnerman, J-type, decal panels

6шт.

36

A65939

SEAL

- decal panel sealing (L.H. and R.H.) To be attached with adhesive 345-22.

2шт.

40

A65354

PANEL

ASSEMBLY - rear side, R.H.

1шт.

41

A65355

PANEL

ASSEMBLY - rear side, L.H.

1шт.

42

121-114

BOLT,Hex Flg, 5/16"-18 x 1/2", Serr

- 5/16 x 1/2" N.C. self-lock, rear side panels

4шт.

43

121-119

BOLT,Hex Flg, 5/16"-18 x 2 1/4", Serr

Rear side panels Hex Flg, 5/16"-18 x 2 1/4", Serr

2шт.

44

195-128

WASHER,5/16"

- 3/8 x 1-1/8 x 1/16", rear side panels

2шт.
