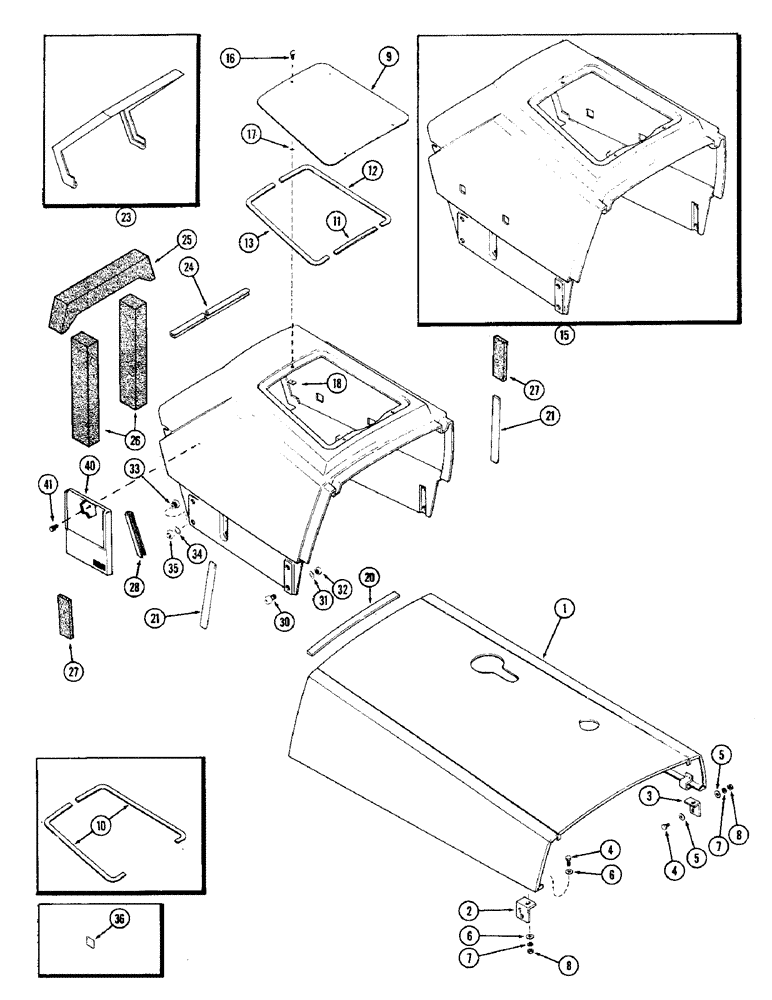

Запчасти Case IH 1370 (384) - HOOD (09) - CHASSIS/ATTACHMENTS

1

A139351

HOOD

ASSEMBLY - front (Replaces A66147)

1шт.

2

A63972

BRACKET

- hood to grille, R.H.

1шт.

3

A63973

BRACKET

- hood to grille, L.H.

1шт.

4

113-152

BOLT,Hex, 5/16" - 18 x 1", Gr 5, Full Thd

- 5/16 x 1" N.C. hex.

6шт.

5

195-130

WASHER - (3/8 x 7/8 x 5/64")

8шт.

6

195-522

WASHER,5/16"

- (3/8 x 3/4 x 1/16")

4шт.

7

192-45

LOCK WASHER

- lock, 5/16"

6шт.

8

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

6шт.

9

A59391

COVER

- hood access

1шт.

10

A59400

SEAL

- cover (See note) (Order A135681 and A135682), Serial Range: -8753195

2шт.

11

A135680

SEAL

SEAL - cover center (1st used P.I.N. 8753195)

1шт.

12

A135681

SEAL

- cover L.H. (1st used P.I.N. 8753195)

1шт.

13

A135682

SEAL

- cover R.H. (1st used P.I.N. 8753195)

1шт.

14

A141970

COVER

HOOD ASSEMBLY - rear (Used w/manual box)

1шт.

15

A66383

COVER

HOOD ASSEMBLY - rear (Order A141970)

1шт.

16

A137887

NUT

STUD - wing head, rear hood cover (Replaces A61044)

3шт.

17

A61045

RETAINER

- stud, rear hood cover

3шт.

18

A63849

CLIP

RECEPTACLE CLIP - rear hood cover

3шт.

A45349

KIT

- hood seal (48 ft. roll w/adhesive back) (Replaces A59408, A62122 and A63857 cut to length), Includes: Ref. 20 and 21

1шт.

20

NSS

NOT SOLD SEPARAT

SEAL - rear hood (Order A45349)

1шт.

21

NSS

NOT SOLD SEPARAT

SEAL - rear hood, outer (Order A45349)

2шт.

23

A64867

MOLDING - rear hood and side panel (Order A64864)

1шт.

24

A64864

GUARD

MOLDING - rear hood and instrument panel (Replaces A64867)

1шт.

25

A66380

FOAM

- firewall top baffle sealing (Inside top rear hood)

1шт.

26

A66381

FOAM

- firewall sides sealing (1/2 x 2 x 6-1/4")

2шт.

27

A66382

SEAL

- rear hood sealing (Rear hood outside flange)

2шт.

28

A64864

GUARD

MOLDING - rear hood and side panel, R.H. (Replaces A64868)

1шт.

30

A63855

SPACER

- rear hood

4шт.

31

193-14

LOCK WASHER,Ext Tooth, 5/8"

WASHER, LOCK, Ext Tooth, 5/8"

4шт.

32

129-107

NUT,5/8"-11, G5

4шт.

33

A63856

SPACER

- rear hood

4шт.

34

193-15

LOCK WASHER,Ext Tooth, 3/4"

WASHER, LOCK, Ext Tooth, 3/4"

4шт.

35

129-148

JAM NUT,Jam, 3/4"-10, G5

- 3/4" N.C. hex., jam

4шт.

36

A66659

PLUG

- cover, handle hole (w/o handles) (Replaces A64359)

1шт.

40

A141933

BOX

- Operator's Manual

1шт.

41

A143300

FASTENER

- speed clinch

2шт.
