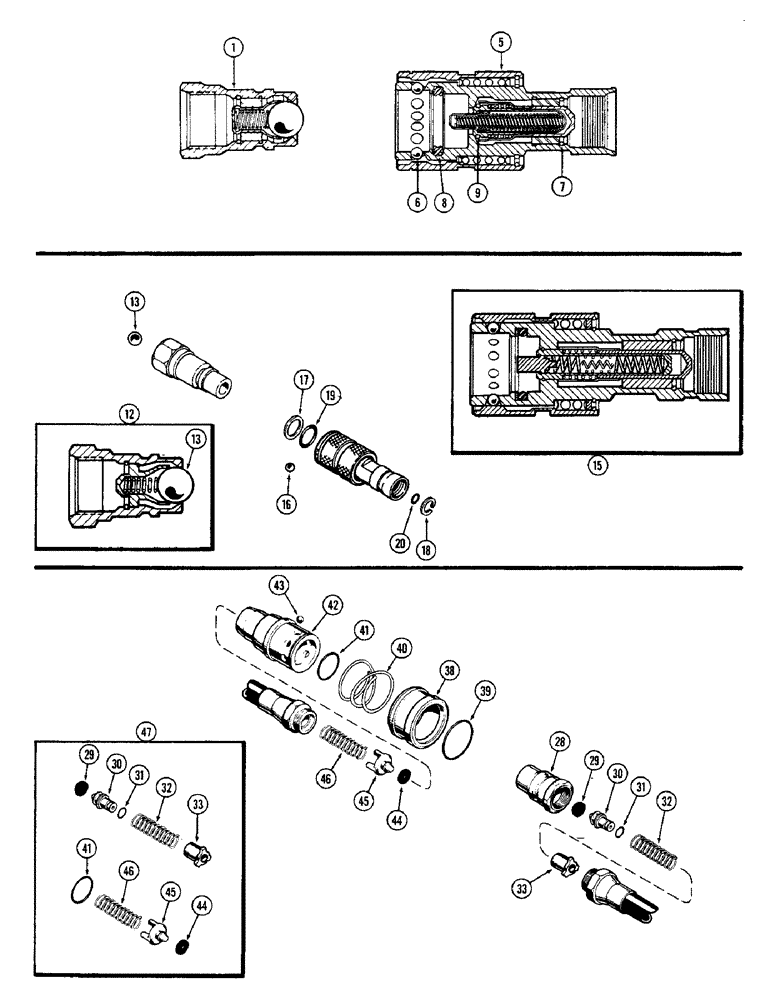

Запчасти Case IH 1370 (382) - REMOTE HYDRAULIC COUPLINGS, PRESSURE COUPLING, FIRST USED TRANSMISSION SERIAL NUMBER 10060760 (09) - CHASSIS/ATTACHMENTS

1

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male (Stamped "Series A" on hex. surface)

1шт.

5

A147888

BREAKER POINTS

COUPLING ASSEMBLY - female, Includes: Ref. 6 - 9

1шт.

6

211-355

BALL

- 3/16" diameter

10шт.

A47220

GASKET KIT

SEAL KIT - coupling repair, Includes: Ref. 7 - 9

1шт.

7

NSS

NOT SOLD SEPARAT

RING - lock

1шт.

8

A47221

SEALING RING,20.22mm ID x 27.28mm OD x 3.53mm Thk

- body

1шт.

9

A47222

SEAL

- poppet

1шт.

12

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male (Order A147889), to transmission, Serial Range: -10060760

1шт.

211-316

BALL,17/32" Dia

- meter, to transmission 17/32" Dia, Serial Range: -10060760

1шт.

15

A141156

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - female, to transmission, Includes: Ref. 16 - 20, Serial Range: -10060760

1шт.

16

221-355

BALL

- 3/16" diameter, to transmission, Serial Range: -10060760

10шт.

17

A44890

RING

- back-up, to transmission, Serial Range: -10060760

1шт.

A45600

KIT

SEAL KIT - coupling repair, to transmission, Includes: Ref. 18 - 20, Serial Range: -10060760

1шт.

18

NSS

NOT SOLD SEPARAT

RING - lock, to transmission, Serial Range: -10060760

1шт.

19

A45601

SEAL

- body, to transmission, Serial Range: -10060760

1шт.

20

A45363

SEAL

- poppet, to transmission s, Serial Range: -10060760

1шт.

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - break-away (Male half), standard, Includes: Ref. 28 - 33

1шт.

28

A27356

PIPE FITTING

BODY - coupling, standard

1шт.

29

A33964

SEAL

- piston, standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

30

A27508

PISTON

- coupling, standard

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

31

A27358

O-RING,0.07" Thk x 0.239" ID, -10, Cl 5, 75 Duro

- piston 1/4 x 3/8 x 1/16", standard

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

32

A27351

SPRING

- piston, standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

33

A9631ASY

SPARE PART

- piston, standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

A28542

COUPLING, QUICK, FEM

COUPLING ASSEMBLY - break-away (Female half), standard, Includes: Ref. 38 - 46

1шт.

38

A27353

SLEEVE

SLEEVE - lock and release, standard coupling

1шт.

39

A27355

O-RING,0.139" Thk x 1.17" ID, -217, Cl 5, 75 Duro

RING - snap, sleeve retaining, standard coupling

1шт.

40

A27354

SPRING

- sleeve tension, standard coupling

1шт.

41

A34848

O-RING

- 7/8 x 1-1/8 x 1/8", standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

42

A27349

BODY

- coupling, standard

1шт.

43

211-7

BALL,1/4" Dia

standard coupling 1/4" Dia

8шт.

44

A33964

SEAL

- piston, standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

45

A26215

PISTON

- coupling socket, standard

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

46

A11324

SPRING

- piston, standard coupling

1шт.

Part of Break-Away Coupling P/N A40459.

1шт.

47

A40459

KIT

repair, break-away coupling, Includes: Ref. 29 - 33, 41 and 44 - 46

1шт.
