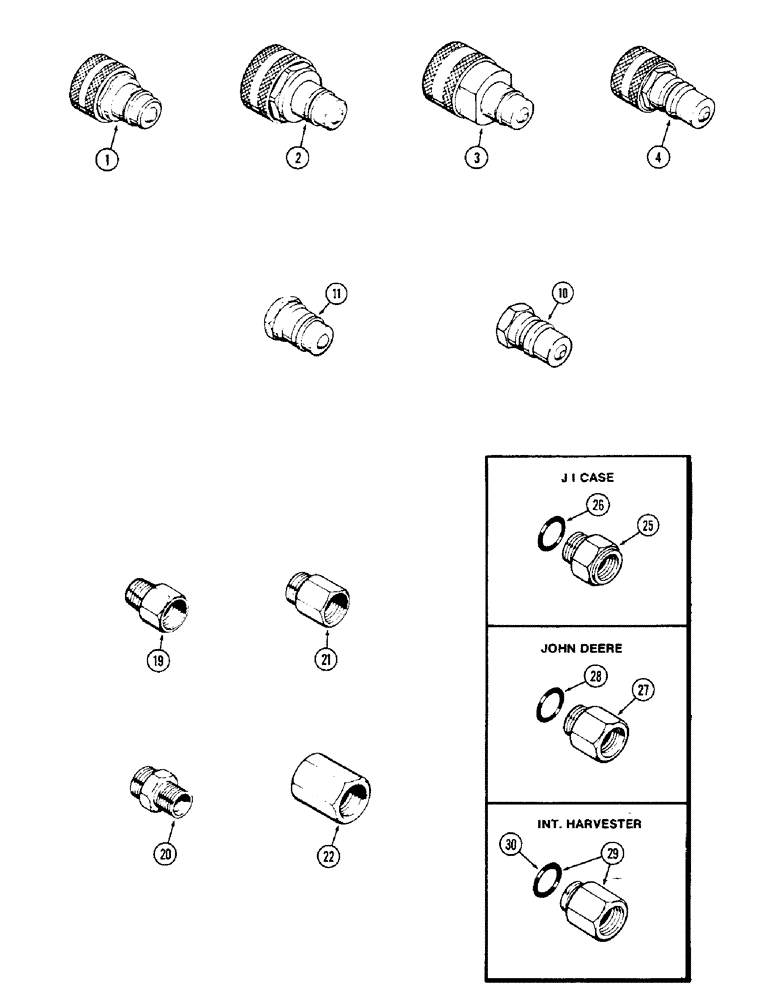

Запчасти Case IH 1370 (381A) - QUICK DISCONNECT ADAPTERS (09) - CHASSIS/ATTACHMENTS

1

A160879

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of John Deere coupler to female half of Case coupler, A147888

1шт.

2

A160880

COUPLING, BREAK AWAY

ADAPTER - hydraulic coupling, male half of IHC coupler to female half of Case coupler, A147888

1шт.

3

A160885

QUICK MALE COUPLING

ADAPTER - hydraulic coupling, male half of Case coupler, A28451 to female half of Case coupler, A147888

1шт.

4

A160888

COUPLING

ADAPTER - hydraulic coupling, Case male tip, A147889, and Case coupling A28542

1шт.

10

A160884

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with valve end), quick disconnect

1шт.

11

A160937

COUPLING, BREAK AWAY

COUPLING - male tip (1/2"-14 NPTF with ball end), quick disconnect

1шт.

19

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- (7/8"-18 female to 1/2" male), hydraulic hose, Serial Range: -8770001

1шт.

20

A27359

ADAPTER

- (7/8"-18 male to 1/2" P.T. male), hydraulic hose, Serial Range: -8770001

1шт.

21

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- (7/8"-18 male to 1/2" P.T. female), hydraulic hose, Serial Range: -8770001

1шт.

22

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- (7/8"-18 female to 1/2" P.T. female), hydraulic hose, Serial Range: -8770001

1шт.

A135687

ADAPTER

KIT - coupling (J I Case implement hose), Includes: Ref. 25 and 26

1шт.

25

NSS

NOT SOLD SEPARAT

ADAPTER - (7/8"-14 male x 7/8"-18 female), 1st used P.I.N.8770001

1шт.

26

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (5/8 x 3/4 x 3/32"), 1st used P.I.N. 8770001

1шт.

A135688

ADAPTER

KIT - coupling (John Deere implement hose), 1st used P.I.N. 8770001, Includes: Ref. 27 and 28

1шт.

27

NSS

NOT SOLD SEPARAT

ADAPTER - (7/8"-14 male x 3/4"-16 female),. 1st used P.I.N. 8770001

1шт.

28

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- (5/8 x 3/4 x 3/32"), 1st used P.I.N. 8770001

1шт.

29

218-5095

ADAPTER,7/8" - 14 ORB x 1/2" NPT

ASSEMBLY - coupling (7/8"-14 male x 1/2" P.T. female) (International Harvester implement hose), 1st used P.I.N. 8770001, Includes: Ref. 30

1шт.

30

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 5/8 x 3/4 x 3/32", 1st used P.I.N. 8770001

1шт.
