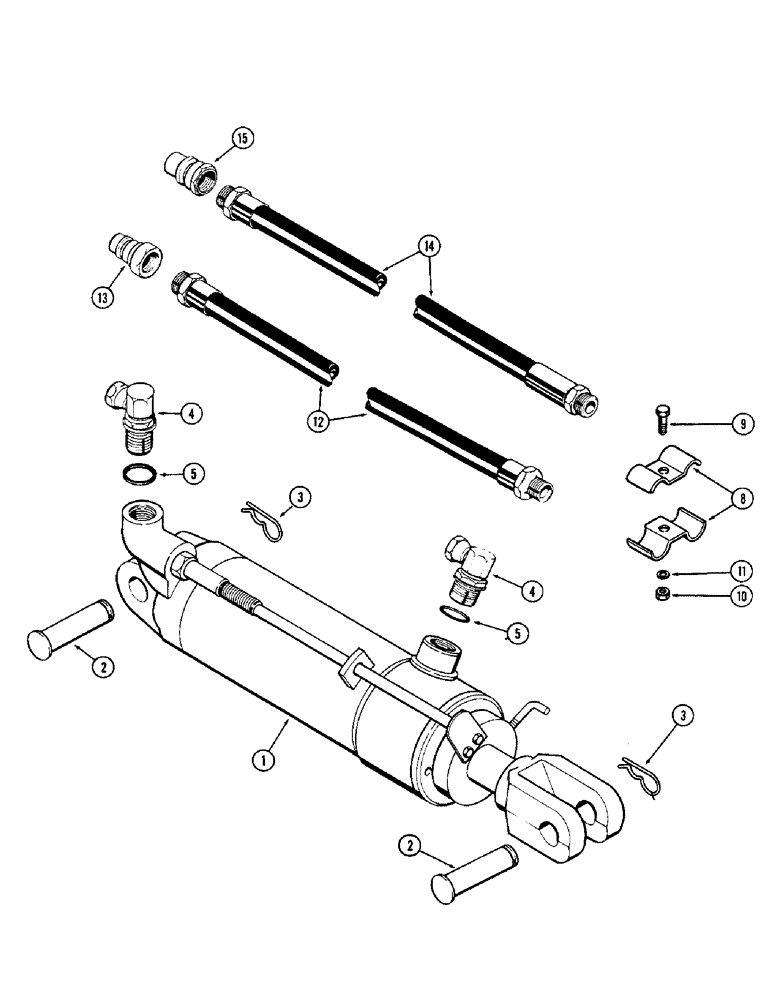

Запчасти Case IH 1370 (380) - REMOTE HYDRAULIC CYLINDER ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

1

G33769

CYLINDER

ASSEMBLY - (4 x 8") (See Figure 374)

1шт.

1

G32083

CYLINDER

ASSEMBLY - (3-1/4 x 8") (See Figure 378)

1шт.

2

A27347

PIN

- cylinder retaining

2шт.

3

A29054

HAIR PIN COTTER

- internal hair

2шт.

4

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSEMBLY - 90 degree adapter, Includes: Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

- 3/4 x 15/16 x 3/32"

1шт.

8

A27440

CLAMP

- hose

2шт.

9

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

- (5/16" N.C. hex.)

1шт.

11

92-5

LOCK WASHER,5/16"

1шт.

12

A20816

HOSE

- 106" long, standard coupling, Serial Range: -8770001

1шт.

12

A20817

HOSE

- 118" long, standard coupling, Serial Range: -8770001

1шт.

13

A28541

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male (See Figure 382), standard, Serial Range: -8770001

1шт.

14

A135006

HYDRAULIC HOSE,0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

(1st used P.I.N. 8770001), Pressure coupling 0.50" ID x 106.00", SAE 100R1 per SAE 100 R1

1шт.

14

A135007

HYDRAULIC HOSE,0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

(1st used P.I.N. 8770001), Pressure coupling 0.50" ID x 118.00", SAE 100R1 per SAE 100 R1

1шт.

15

A147889

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male (Replaces A66816)(1st used P.I.N.8770001), pressure

1шт.

15

A66816

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - male (1st used P.I.N. 8770001) (See Figure 382) (Order A147889), pressure

1шт.
