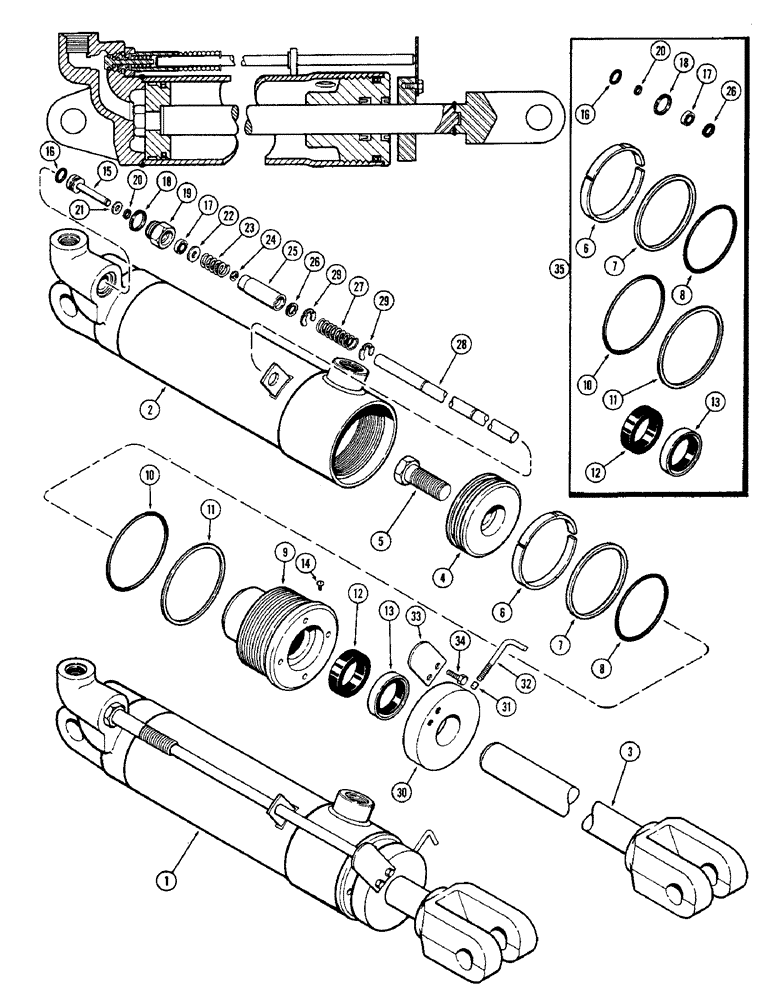

Запчасти Case IH 1370 (378) - G32083 REMOTE HYDRAULIC CYLINDER, 3-1/4 INCH X 8 INCH CYLINDER (09) - CHASSIS/ATTACHMENTS

G32083

CYLINDER

ASSEMBLY - hydraulic, Includes: Ref. 2 - 34

1шт.

2

G32084

TUBE,15.22" L

- cylinder

1шт.

3

G32086

ROD

- piston

1шт.

4

G32093

JACK PISTON

PISTON - cylinder

1шт.

5

328-1232

BOLT,Hex, 3/4" - 16 x 2", Gr 8

1шт.

6

S109445

RING,82.55mm OD, Ext

- wear, piston (Nylon) (Replaces A32090)

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

7

G32091

SEALING RING

RING - seal, piston (Teflon)

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

8

A27996

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

- 2-3/4 x 3 x 1/8"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

9

G33580

SEAL

GLAND - packing, piston rod (Replaces G32426)

1шт.

10

A27994

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

- 3-1/4 x 3-1/2 x 1/8"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

11

D38858

BACK-UP RING,82.17mm ID x 88.27mm OD x 1.4mm Thk

RING - back-up

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

12

D36968

SEAL,31.72mm ID x 44.58mm OD x 10.69mm Thk

- piston rod, 1-1/4 x 1-3/4 x 13/32"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

13

D95141

WIPER SEAL

SCRAPER - piston rod, 1-1/4 x 1-3/4 x 3/8"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

14

187-1031

SELF-TAP SCREW,Pan, 0.164"-32 x 1/4"

SCREW - #8-32 x 1/4" rd. hd. sltd., self-tapping

1шт.

15

G31943

PLUNGER

- valve

1шт.

16

G32070

O-RING,0.103" Thk x 0.424" ID, -11, Cl 6, 90 Duro

- 27/64 x 5/8 x 3/32"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

17

G31932

WIPER SEAL

SEAL - wiper, 3/16 x 1/2 x 1/8"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

19

G31933

GLAND

ASSEMBLY - valve assy., Includes: Ref. 20 and 21

1шт.

20

G31935

O-RING,0.174" ID x 0.377" OD

- 11/64 x 3/8 x 7/64"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

21

31948

WASHER

- 13/64 x 13/32 x 1/16"

1шт.

22

G31929

WASHER

- spring backing, 7/32 x 5/8 x 1/16"

1шт.

23

G31980

SPRING

- plunger return (1" long)

1шт.

24

43485

PLUG

RING - retaining, E type

1шт.

25

G32427

SLEEVE

- protector

1шт.

26

A8613

O-RING,0.426" ID x 0.566" OD

- 7/16 x 9/16 x 1/16"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.

27

G31934

SPRING

- rod return (2-5/16" long)

1шт.

28

G32428

ROD

- push

1шт.

29

G32429

RING

- retaining, Y type

2шт.

30

G34978

COLLAR

- stop (w/3/8" N.C. tapped hole)

1шт.

30

G32425

COLLAR

- stop (w/1/4" N.C. tapped hole) (Order G34977, G34978 and G34979)

1шт.

31

G34979

PLUG

- locking (5/16" dia.)

1шт.

31

G32076

PLUG

- locking (3/16" dia.)

1шт.

32

G34977

BOLT

- hook (3/8" N.C.)

1шт.

33

G32075

PLATE

- stop

1шт.

34

13-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

2шт.

35

G32094

KIT

- cylinder repair, Includes: Ref. 6 - 8, 10 - 13, 16 - 18, 20 and 26

1шт.

18

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32"

1шт.

Part of Cylinder Repair Kit P/N G32094.

1шт.
